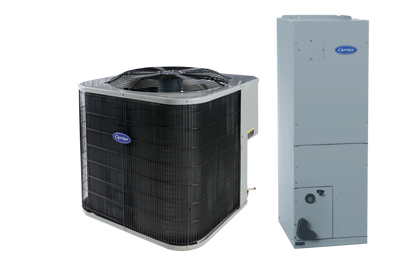

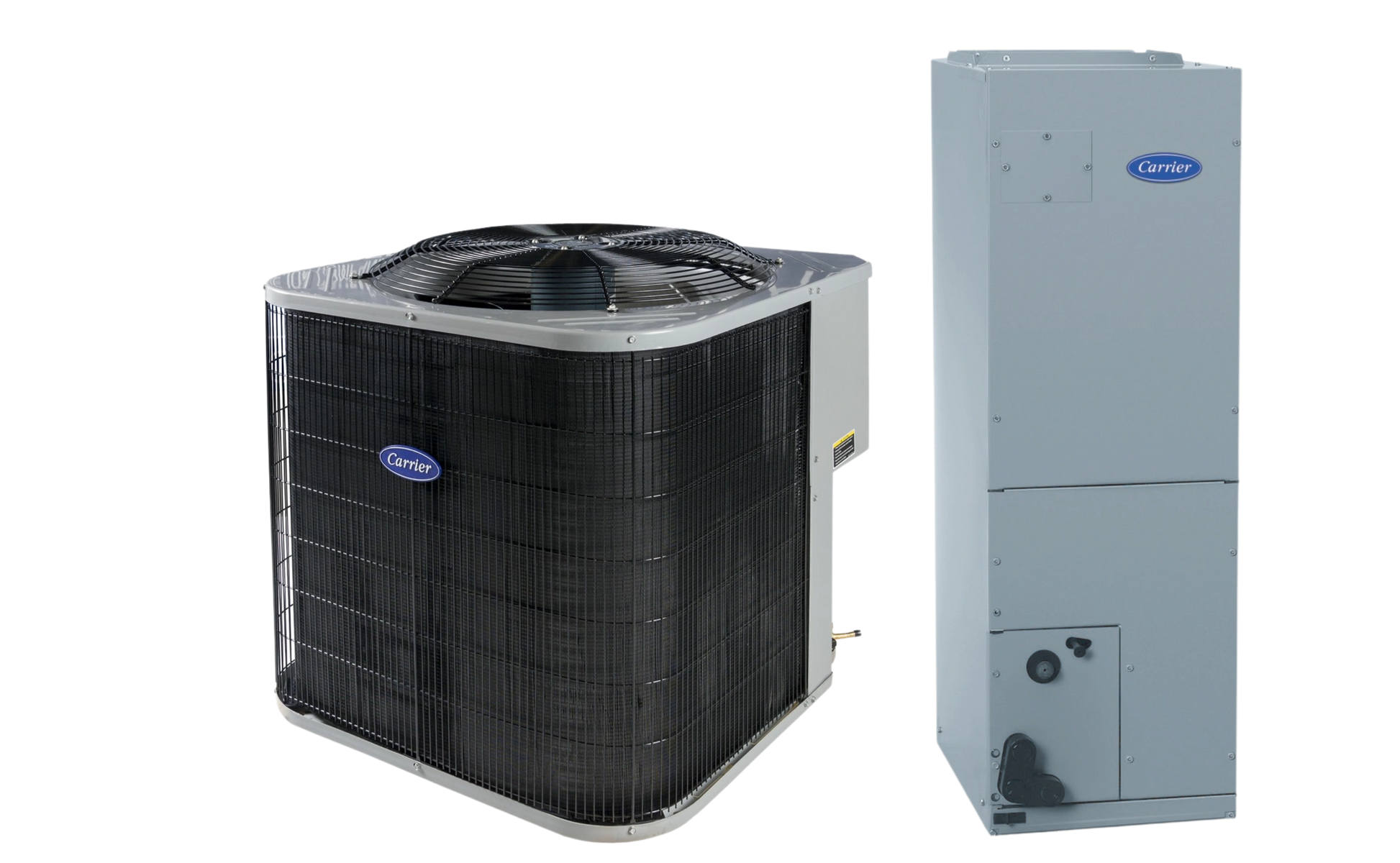

Carrier Ducted Slim Split 3.0 Ton 3 Ph – 38CKM036-X-9/FB4CSL037L00
Carrier Ducted Slim Split 3.0 Ton 3 Ph – 38CKM036-X-9/FB4CSL037L00
Regular price
7,049 AED
Sale price
7,049 AED
Regular price
7,250 AED
Carrier Ducted Slim Split AC 3.0 Ton 3 Phase – Model 38CKM036-X-9 / FB4CSL037L00 delivers reliable and energy-efficient cooling for large homes and commercial applications. Built with advanced features like a scroll compressor, ECM indoor fan motor, and adjustable TXV, it offers high EER up to 13.1 Btuh/W and supports long-line applications up to 200ft. Designed to perform even in extreme temperatures up to 125°F.

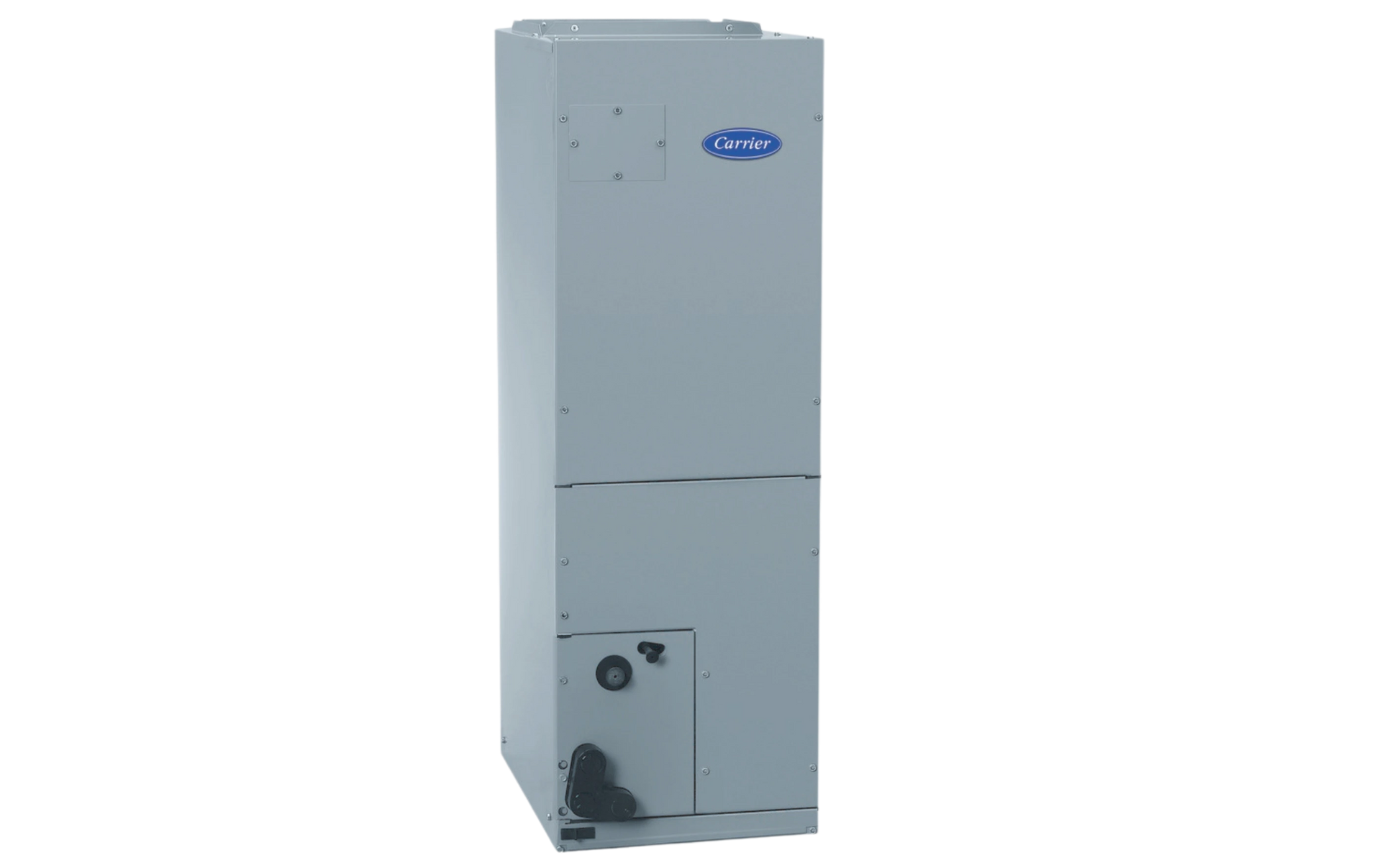

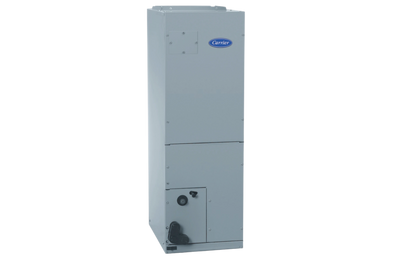

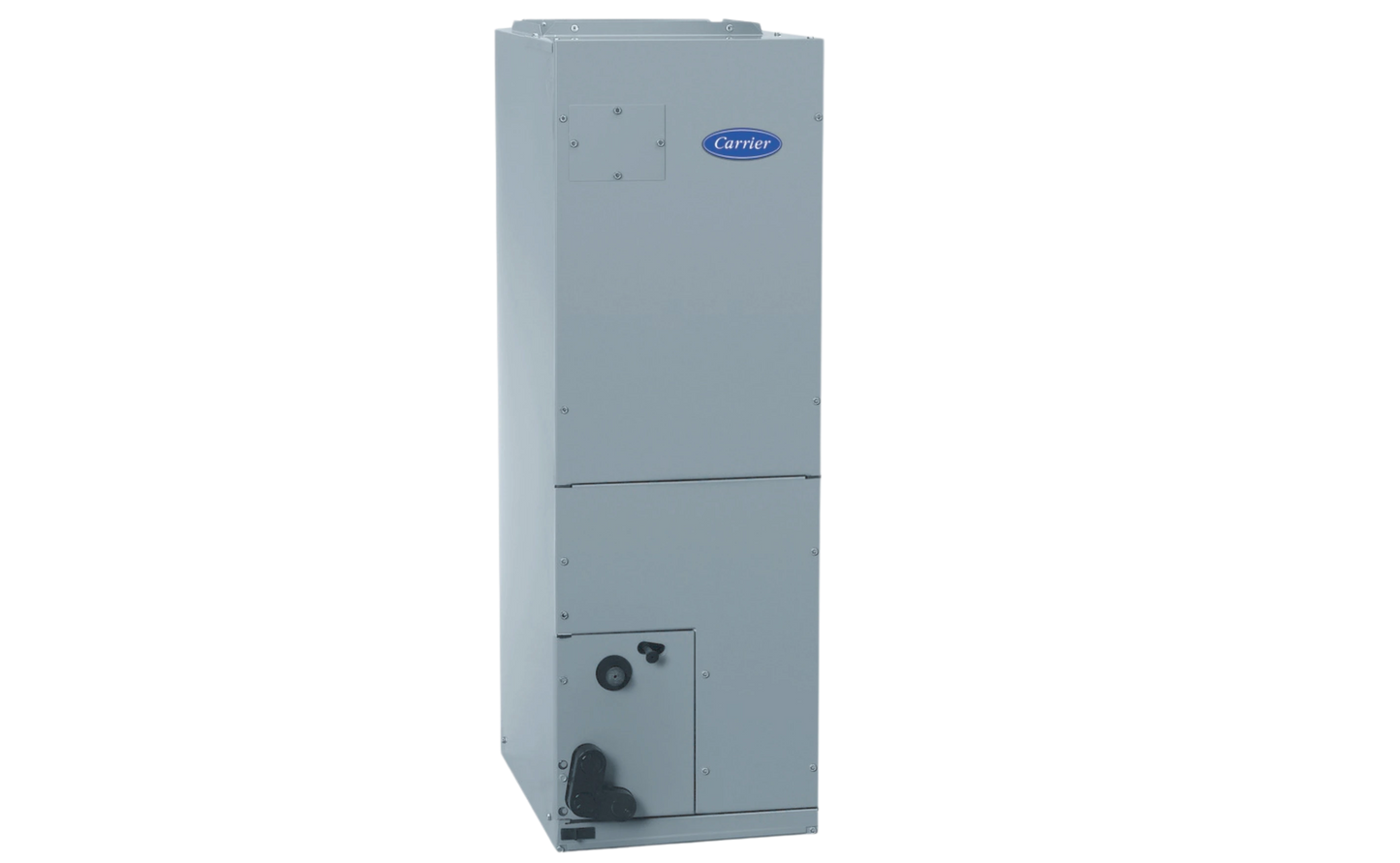

- Indoor Model: FB4CSL037L00 (Mexico)

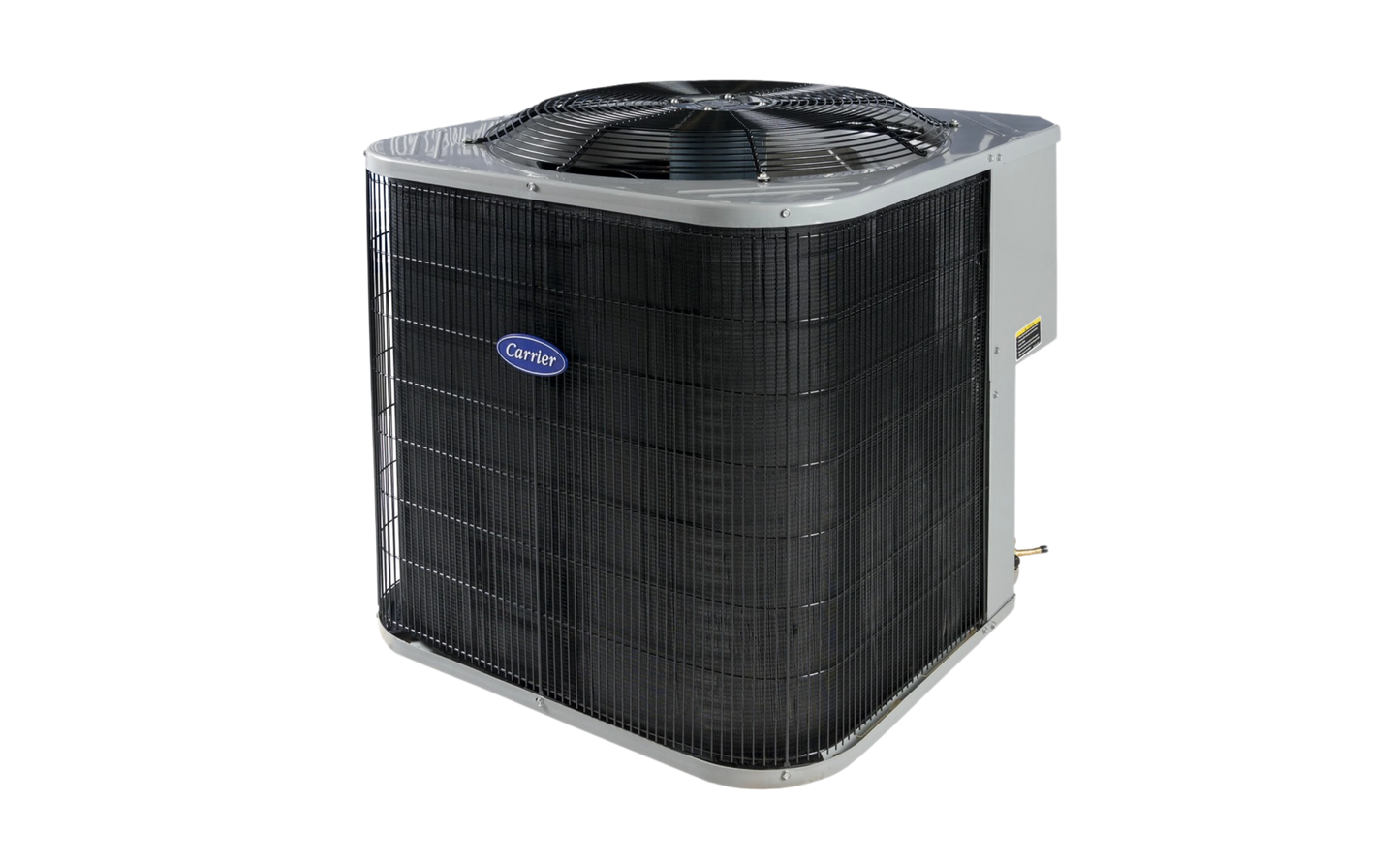

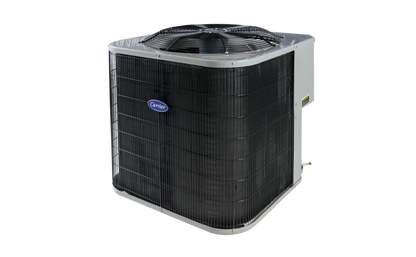

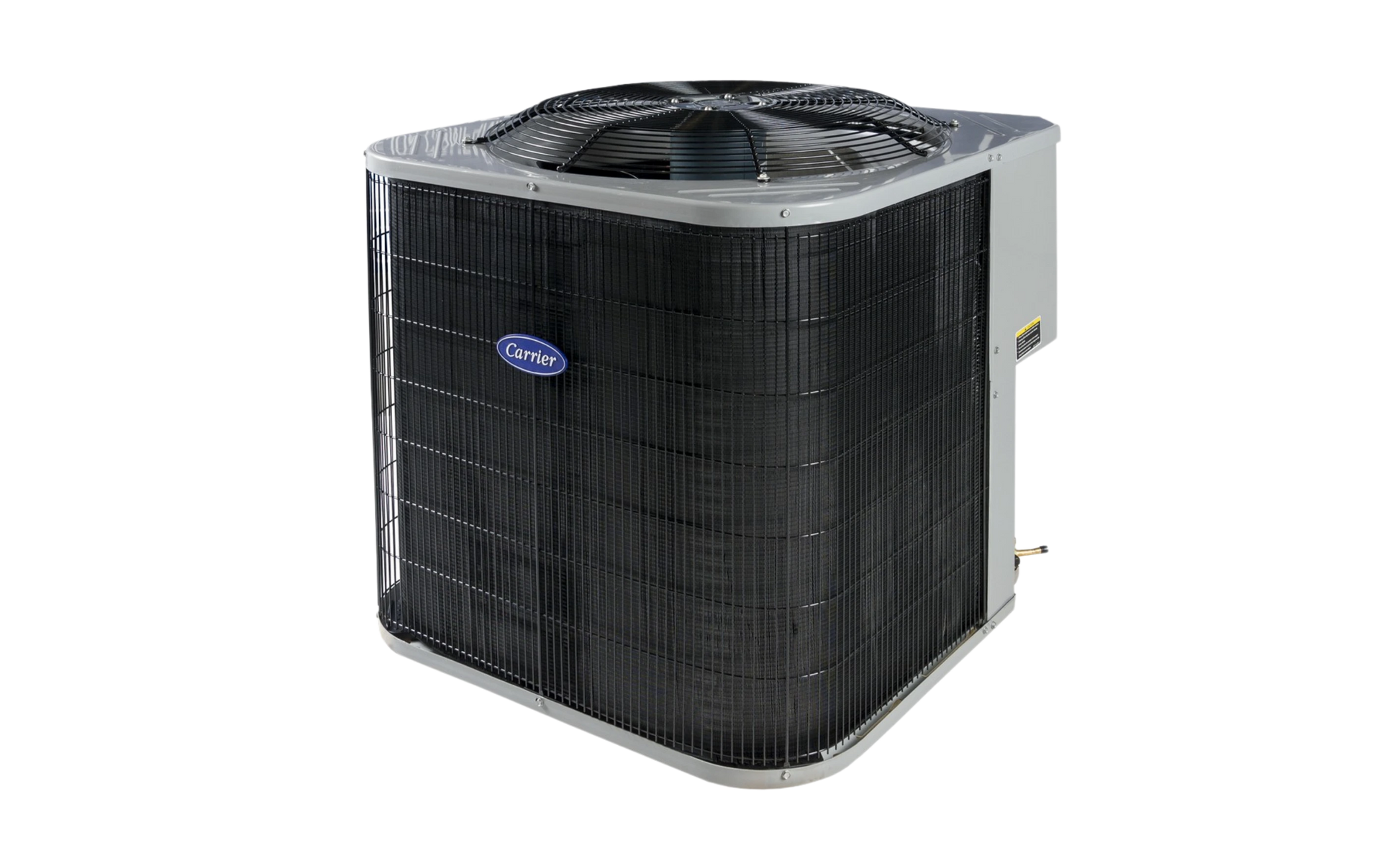

- Outdoor Model: 38CKM036-X-9 (Mexico)
- Compressor Type: Scroll
- Cooling Capacity: 35,230 BTU
- Phase: 3 Phase
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
Carrier Ducted Split - FB4CSL/38CKM
| Parameter | Value |
|---|---|
| Cooling Capacity | 3.0 tons |
| Refrigerant | R-410A |
| Total Power Input | 10.6 kW |
| Airflow Rate | 562 L/s |
| EER @ 35°C | 12.8 |
| EER @ 46°C | 8.9 |
| CU Dimensions (mm) | 793 x 793 x 718 |
| FCU Dimensions (mm) | 1261 x 560 x 537 |
| CU Weight (kg) | 86 |
| FCU Weight (kg) | 71 |
| Power Supply | 220V / 1/3 Phase / 50Hz |
| Compressor Type | Scroll |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
