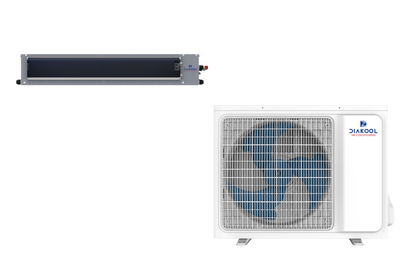

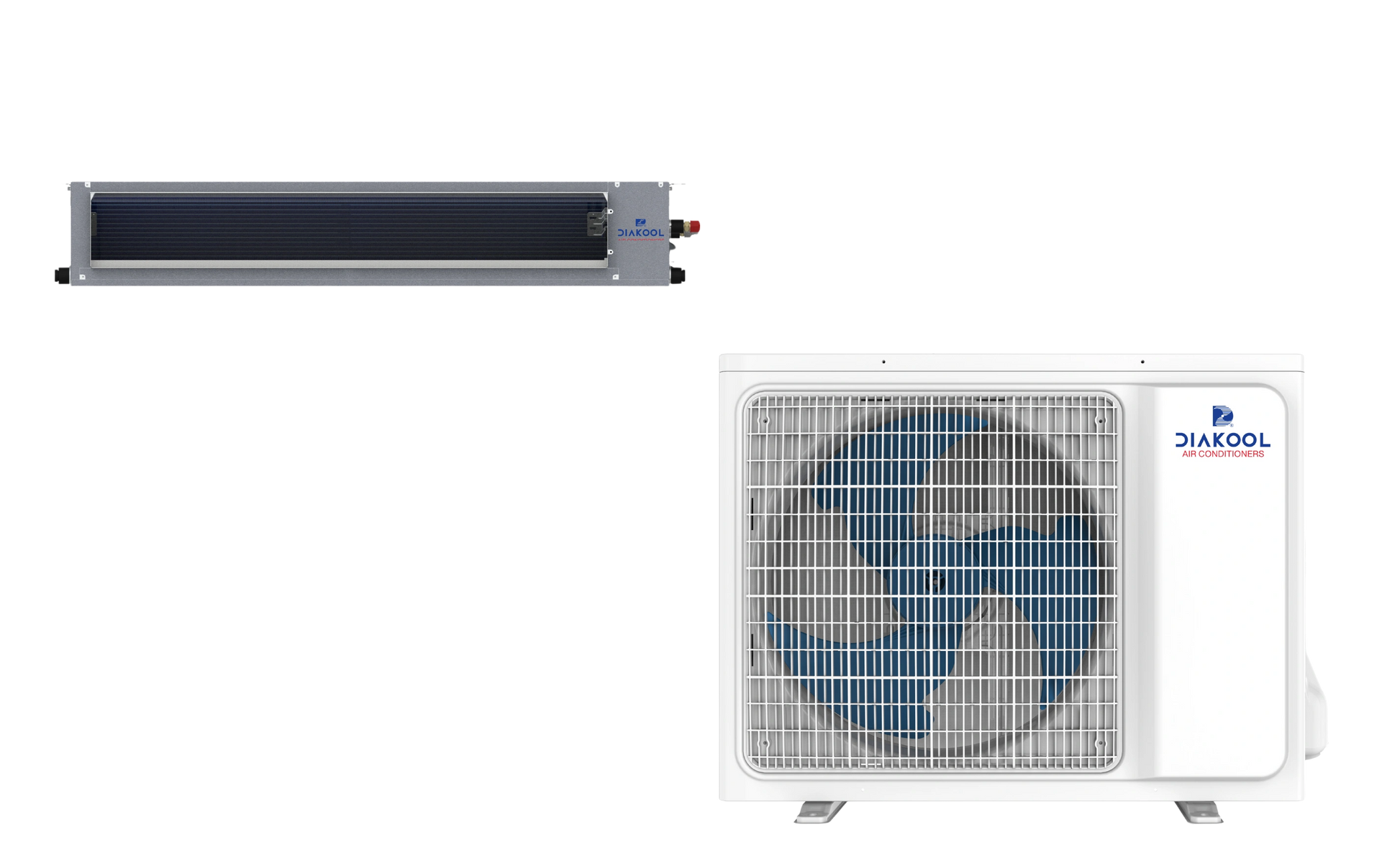

Diakool Ducted AC 2.5 Ton Unit - DLTMD-C30/4R1A
Diakool Ducted AC 2.5 Ton Unit - DLTMD-C30/4R1A
Diakool Ducted 2.5 Ton AC Unit DLTMD-C30/4R1A, is a high-capacity concealed unit designed for powerful cooling of extra-large spaces. This system efficiently cools big living rooms, majlis areas, and large commercial spaces up to 2,000 sq. ft., while remaining completely hidden from view for pristine interior aesthetics. It's the ideal ducted ac for extra large room installations, delivering superior cooling performance without compromising your décor.
Perfect for: Large villa living areas, big majlis rooms, large offices, and spacious open-plan areas.
Why Choose This Diakool 2.5 Ton Ducted AC?
- High-Capacity Cooling: Powerful large ducted ac for villa that handles extra-large spaces with ease.
- Energy Efficient Operation: An energy efficient ducted ac 2.5 ton that optimizes power consumption while delivering strong performance.
- Whisper-Quiet Performance: Among the quiet 2.5 ton ducted ac uae options, ensuring peaceful environments in big spaces.
- Professional Installation: Expert setup ensures perfect airflow distribution and system efficiency for large areas.
- Complete Concealment: Only discreet vents remain visible, maintaining your interior design.
Specification of Diakool Ducted 2.5 Ton AC Unit - DLTMD-C30/4R1A

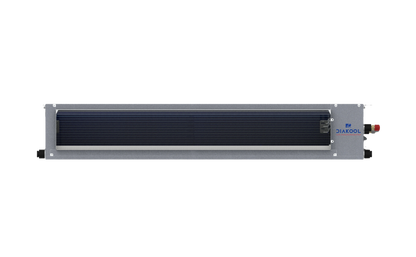

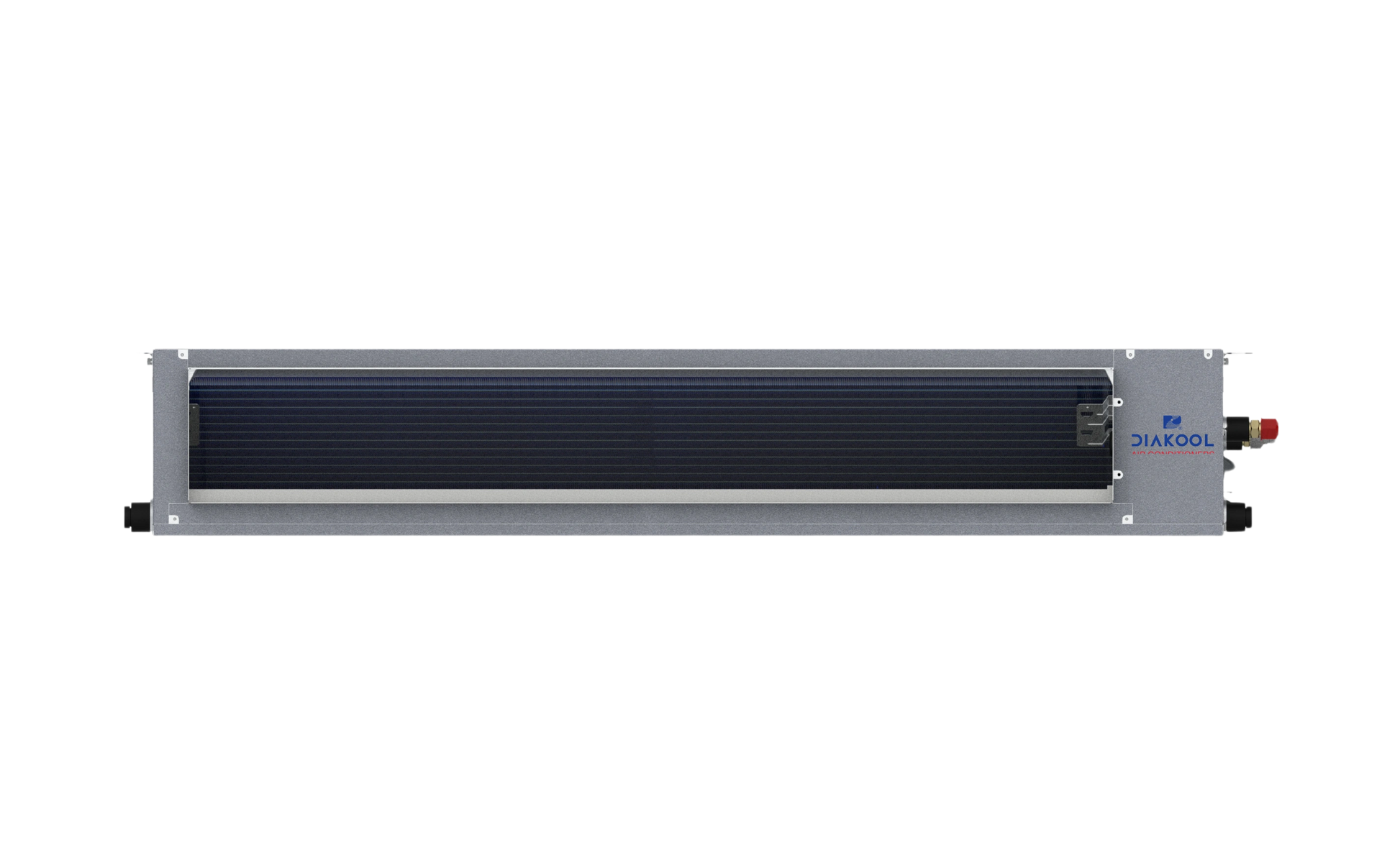

- Indoor Model: DLTMD-C30/4R1A

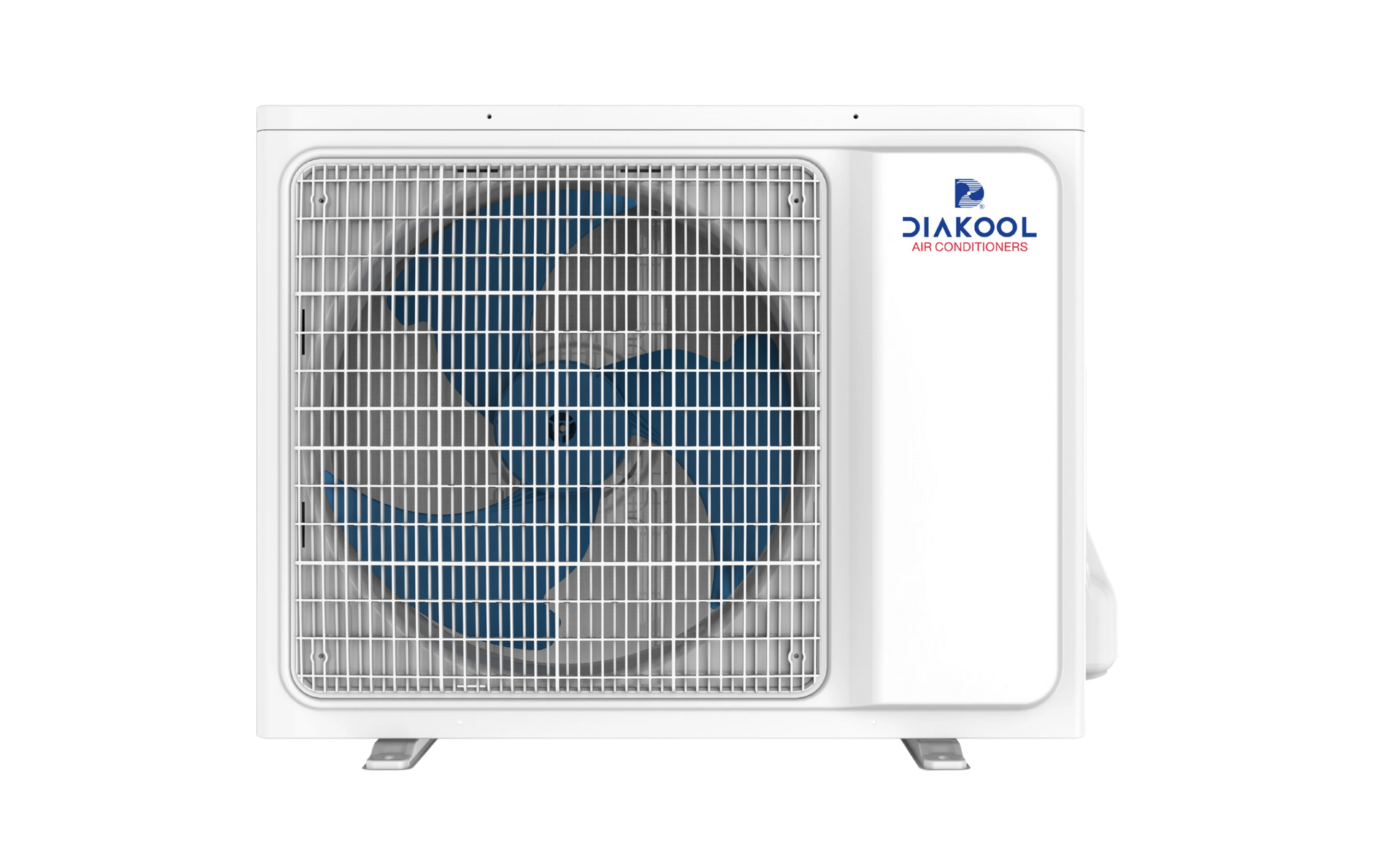

- Outdoor Model: DLT-30/4R1A (U)
- BTU: 28,000
- Compressor Type: Rotary
- Refrigerant: R410A
Experience the power of hidden cooling for extra-large spaces. The Diakool 2.5-ton ducted system offers exceptional value for homeowners needing robust, discreet climate control for big areas. Cool your extra-large space invisibly.
Note: installation price may vary depends on the T&C's
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Complete Features
DIAKOOL Duct Series air conditioners are engineered for powerful performance, energy efficiency, and flexible installation. Built with a high-efficiency T3 rotary compressor, they ensure reliable cooling even in extreme climates. The compact design allows for easy ceiling installation, making them ideal for both residential and commercial spaces. With features like Auto Restart, Self-Diagnostic Function, Smart WiFi, the Duct Series combines smart functionality with durable, low-noise operation and consistent airflow control.
Find Out more Features
Specifications
| Parameter | Value |
|---|---|
| Cooling Capacity (Rated) | 29,800 / 26,000 BTU/h (T1/T3) (≈8.74 / 7.62 kW) |
| Nominal Capacity Class | 30,000 BTU |
| Refrigerant Type | R410A |
| Compressor Type | Not specified (likely Rotary) |
| Cooling Power Consumption | 2.72 / 3.30 kW (T1/T3) |
| Running Current | 12.20 / 14.50 A |
| Energy Efficiency Ratio (EER) | 10.96 / 7.87 BTU/h/W (T1/T3) |
| Indoor Unit | 46 / 43 / 41 / 38 dB(A) |
| Outdoor Unit | 58 dB(A) |
| Air Flow Volume (Indoor) | 1400 / 1300 / 1200 / 1000 m³/h |
| Outdoor Air Flow Volume | 3200 m³/h |
| Outdoor Unit Net Weight | 46 kg |
-
