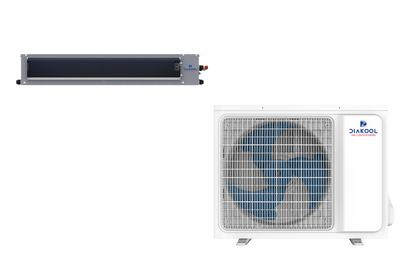

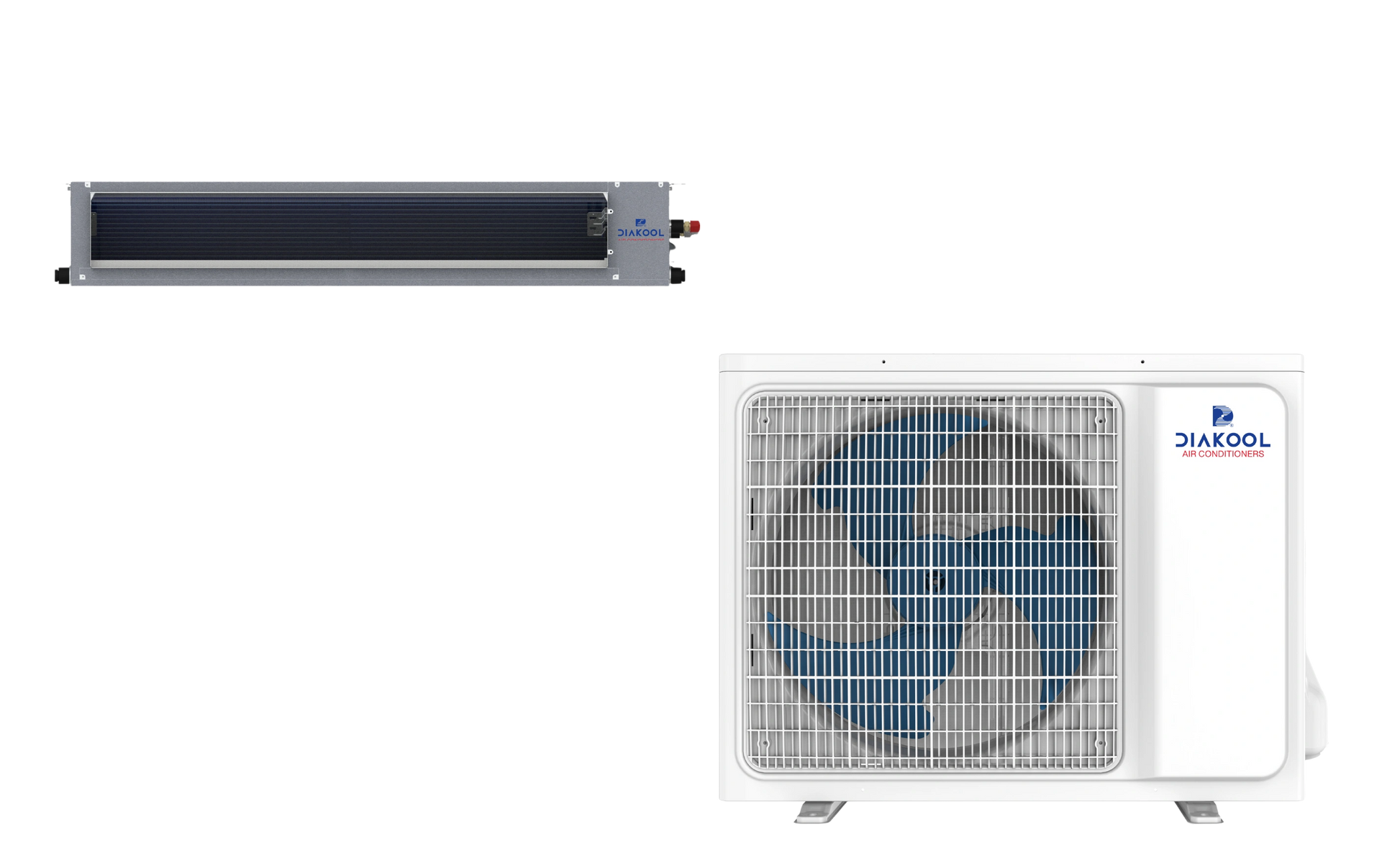

Diakool Ducted AC 3.0 Ton Unit - DLTMD-C36/4R1A
Diakool Ducted AC 3.0 Ton Unit - DLTMD-C36/4R1A
Achieve maximum concealed cooling with the best 3 ton ducted ac price uae through the Diakool DLTMD-C36/4R1A. This commercial-grade concealed unit delivers powerful climate control for large villas, offices, and retail spaces up to 2,500 sq. ft., while maintaining complete invisibility for pristine interiors. It represents the ultimate commercial ducted ac uae solution for businesses and large homes seeking discreet high-performance cooling.
Perfect for: Large villa applications, office buildings, retail stores, restaurants, and spacious commercial establishments.
Specification of the Diakool Ducted AC 3.0 Ton Unit - DLTMD-C36/4R1A:
- Indoor Model: DLTMD-C36/4R1A
- Outdoor Model: DLT-36/4R1A (U)
- BTU: 32,000
- Compressor Type: Rotary
- Refrigerant: R410A
Note: installation price may vary depends on the T&C's
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Complete Features
DIAKOOL Duct Series air conditioners are engineered for powerful performance, energy efficiency, and flexible installation. Built with a high-efficiency T3 rotary compressor, they ensure reliable cooling even in extreme climates. The compact design allows for easy ceiling installation, making them ideal for both residential and commercial spaces. With features like Auto Restart, Self-Diagnostic Function, Smart WiFi, the Duct Series combines smart functionality with durable, low-noise operation and consistent airflow control.
Find Out more Features
Specifications
| Parameter | Value |
|---|---|
| Cooling Capacity (Rated) | 35,200 / 32,000 BTU/h (T1/T3) (≈10.32 / 9.38 kW) |
| Nominal Capacity Class | 36,000 BTU |
| Refrigerant Type | R410A |
| Compressor Type | Not specified (likely Rotary) |
| Cooling Power Consumption | 3.15 / 3.68 kW (T1/T3) |
| Running Current | 14.00 / 16.50 A |
| Energy Efficiency Ratio (EER) | 11.17 / 8.70 BTU/h/W (T1/T3) |
| Indoor Unit | 47 / 44 / 41 / 39 dB(A) |
| Outdoor Unit | 58 dB(A) |
| Air Flow Volume (Indoor) | 1600 / 1500 / 1400 / 1200 m³/h |
| Outdoor Air Flow Volume | 3300 m³/h |
| Outdoor Unit Net Weight | 51 kg |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
