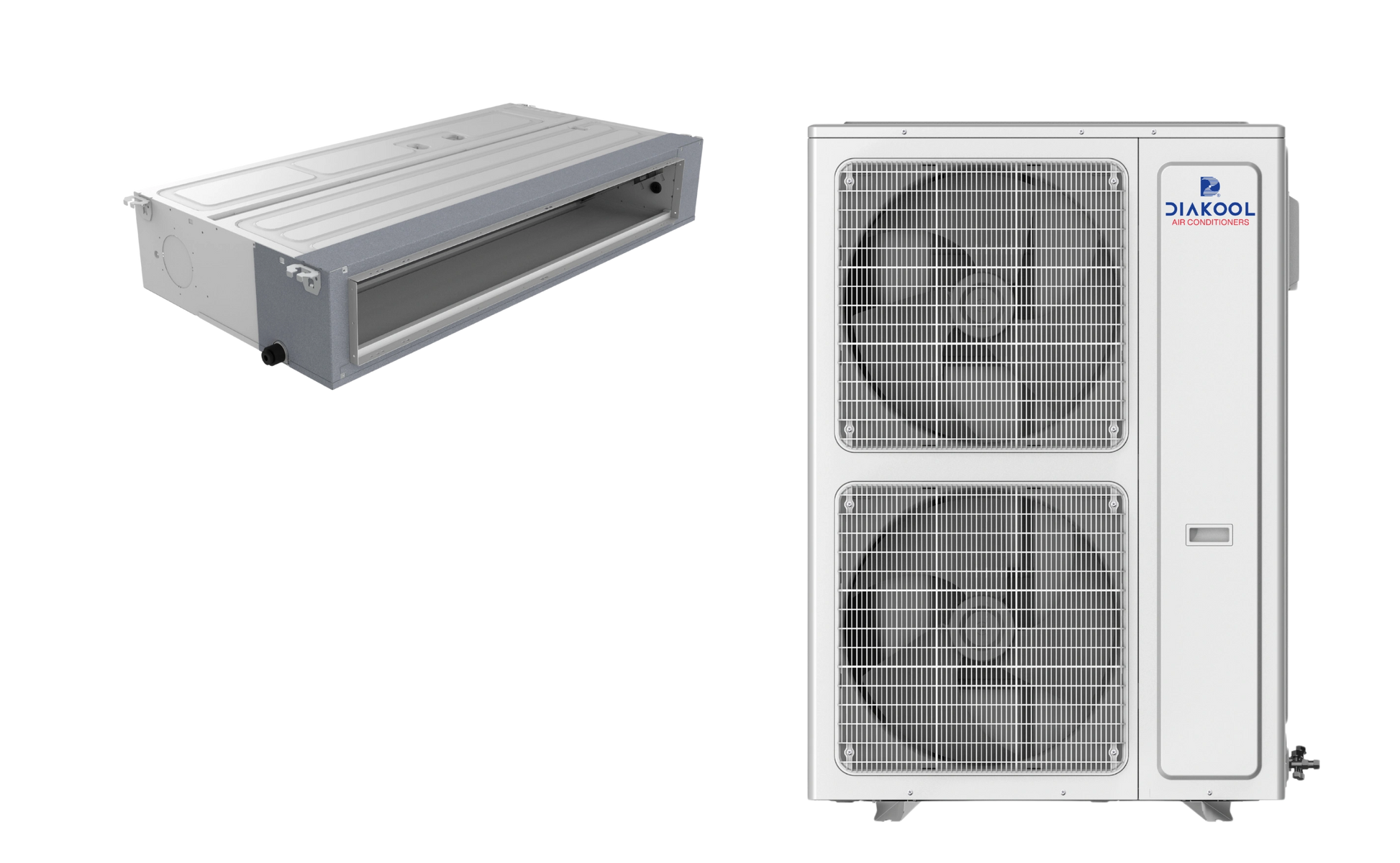

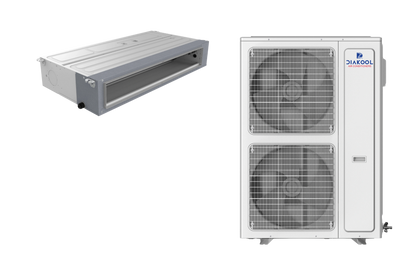

Diakool Ducted AC 4.0 Ton Unit - DLTMD-C48/4R1A
Diakool Ducted AC 4.0 Ton Unit - DLTMD-C48/4R1A
Experience maximum concealed cooling power with the best 4 ton ducted ac through the Diakool DLTMD-C48/4R1A. This industrial-grade concealed unit delivers exceptional climate control for large properties, warehouses, and commercial spaces up to 3,200 sq. ft., while maintaining complete invisibility for pristine interiors. It represents the ultimate industrial ducted ac UAE solution for businesses and large properties seeking discreet maximum-capacity cooling.
Perfect for: Large villas and mansions, warehouses, factory floors, large retail spaces, and big commercial establishments.
Specification of Diakool Ducted AC 4.0 Ton Unit - DLTMD-C48/4R1A
- Indoor Model: DLTMD-C48/4R1A
- Outdoor Model: DLT-48/4R1A (U)
- BTU: 48,000
- Compressor Type: Scroll
- Refrigerant: R410A
Why Choose This Diakool 4 Ton Ducted AC DLTMD-C48/4R1A?
-
Industrial-Grade Cooling: Powerful large property ducted ac system that handles extensive spaces with professional reliability
-
Energy Efficient Performance: A maximum capacity ducted ac 4 ton that optimizes energy consumption while delivering ultimate cooling power
-
Professional Operation: Designed for continuous industrial use with reliable, efficient performance
- Complete Architectural Integration: Only minimal vents visible, preserving commercial and property aesthetics
Experience industrial-grade hidden cooling for large-scale applications. The Diakool 4-ton ducted system offers exceptional value for commercial and large property clients needing robust, discreet climate control solutions.
Note: installation price may vary depends on the T&C's
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Complete Features
DIAKOOL Duct Series air conditioners are engineered for powerful performance, energy efficiency, and flexible installation. Built with a high-efficiency T3 rotary compressor, they ensure reliable cooling even in extreme climates. The compact design allows for easy ceiling installation, making them ideal for both residential and commercial spaces. With features like Auto Restart, Self-Diagnostic Function, Smart WiFi, the Duct Series combines smart functionality with durable, low-noise operation and consistent airflow control.
Find Out more Features
Specifications
| Parameter | Value |
|---|---|
| Cooling Capacity (Rated) | 47,800 / 45,200 BTU/h (T1/T3) (≈14.00 / 13.24 kW) |
| Nominal Capacity Class | 48,000 BTU |
| Refrigerant Type | R410A |
| Compressor Type | Not specified (likely Rotary) |
| Cooling Power Consumption | 4.25 / 5.30 kW (T1/T3) |
| Running Current | 18.50 / 23.50 A |
| Energy Efficiency Ratio (EER) | 11.24 / 8.52 BTU/h/W (T1/T3) |
| Indoor Unit | 50 / 48 / 46 / 44 dB(A) |
| Outdoor Unit | 60 dB(A) |
| Air Flow Volume (Indoor) | 2100 / 2000 / 1900 / 1700 m³/h |
| Outdoor Air Flow Volume | 5000 m³/h |
| Outdoor Unit Net Weight | 74 kg |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
