Complete Features
Diakool ST3 Series Wall Split Air Conditioners deliver high performance and everyday comfort with a T3 Rotary Compressor for energy-efficient, low-noise operation. Golden Fins and a two-layer condenser coil enhance cooling efficiency, reduce energy use, and extend compressor life.
Find Out more FeaturesSpecifications

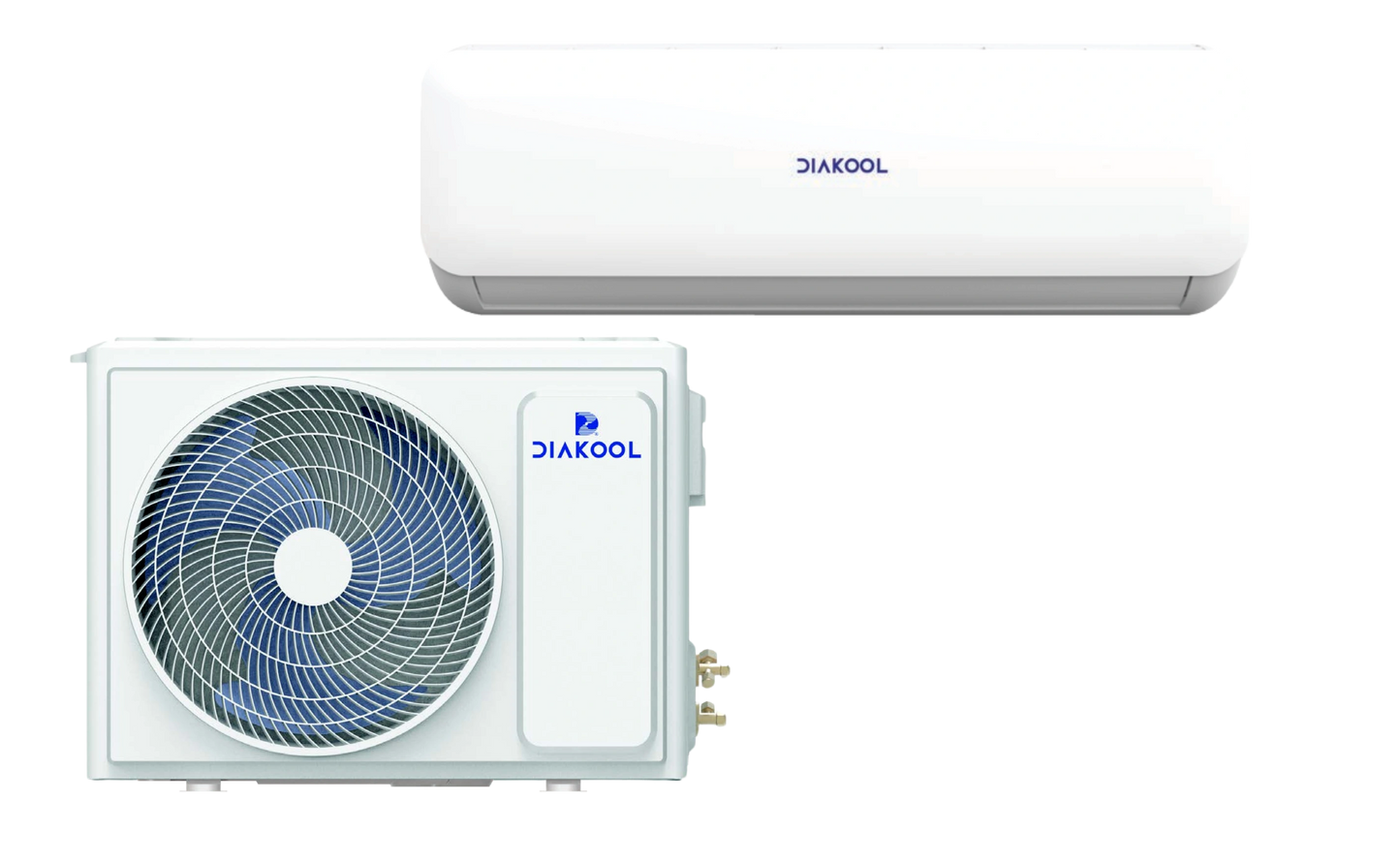

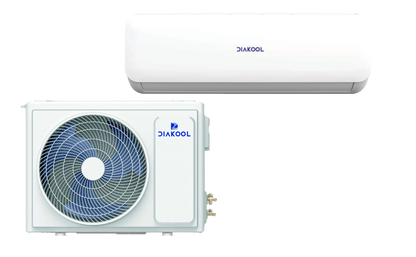

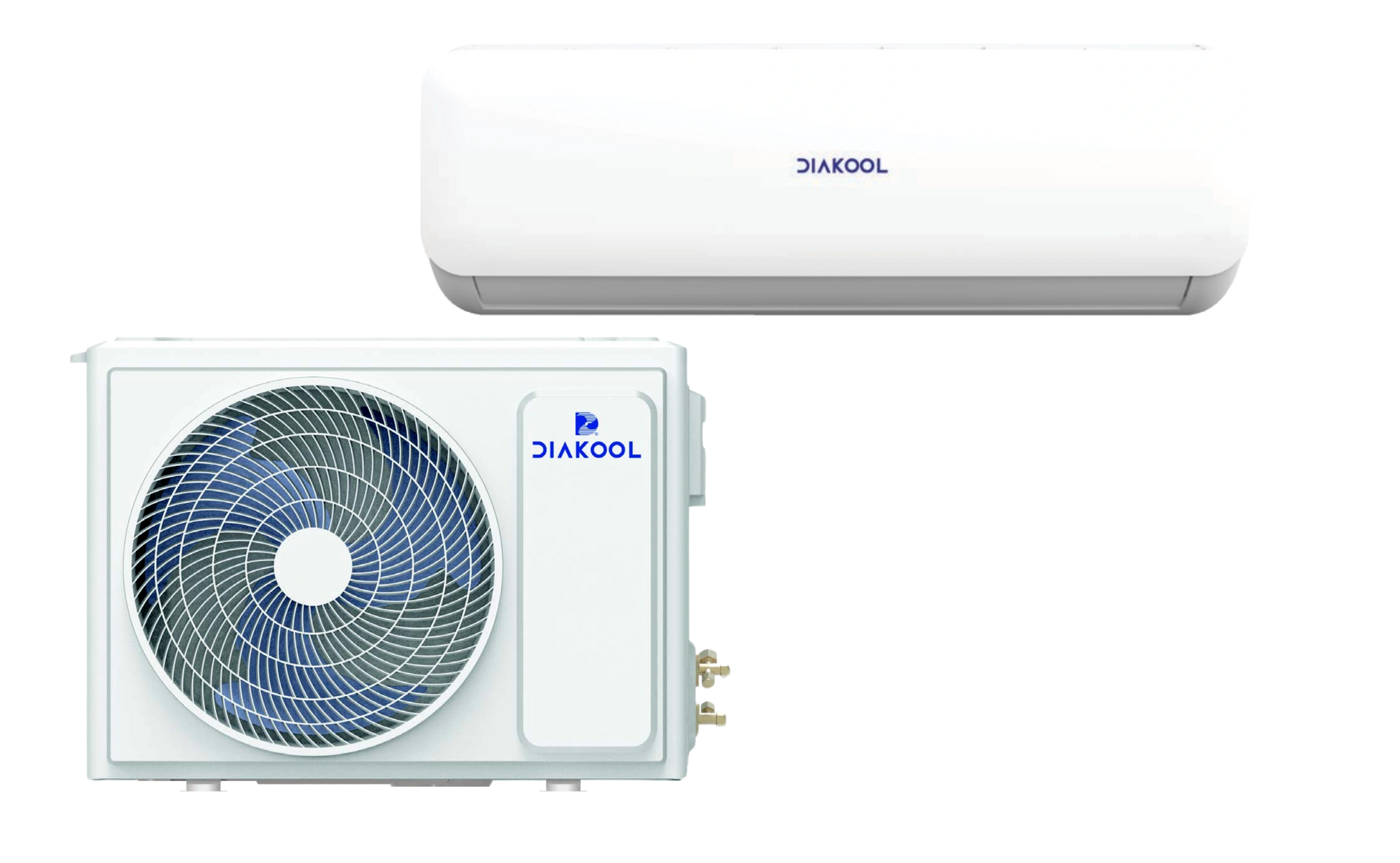

Diakool Wall Split AC Series
| Parameter | Value |
|---|---|
| Cooling Capacity (Rated) | 12,200 BTU/h (≈3.58 kW) |
| Nominal Capacity Class | 12,000 BTU |
| Refrigerant Type | R410A |
| Compressor Type | Rotary |
| Cooling Power Consumption | 1,030 W |
| Running Current | 4.7 A |
| Energy Efficiency Ratio (EER) | 11.85 BTU/h/W |
| Indoor Unit | 40 dB |
| Outdoor Unit | 52 dB |
| Air Flow Volume | 580 m³/h |
| Outdoor Unit Net Weight | 28 kg |
