Complete Features
Diakool ST3 Series Wall Split Air Conditioners deliver high performance and everyday comfort with a T3 Rotary Compressor for energy-efficient, low-noise operation. Golden Fins and a two-layer condenser coil enhance cooling efficiency, reduce energy use, and extend compressor life.
Find Out more FeaturesSpecifications

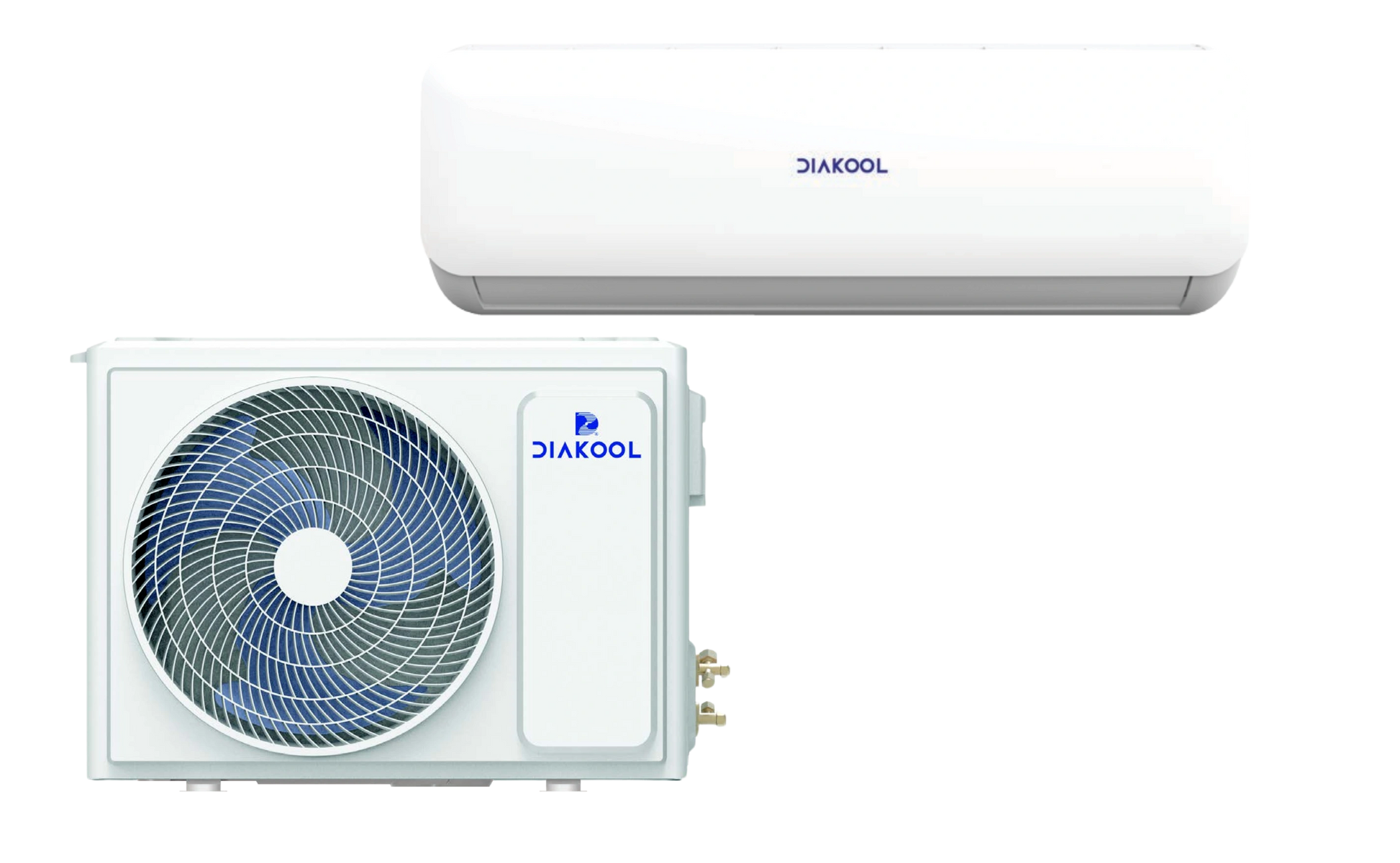

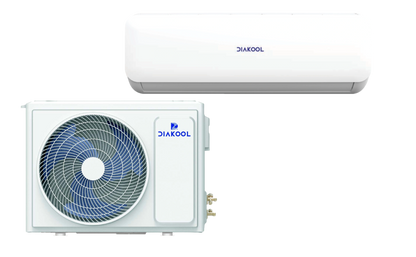

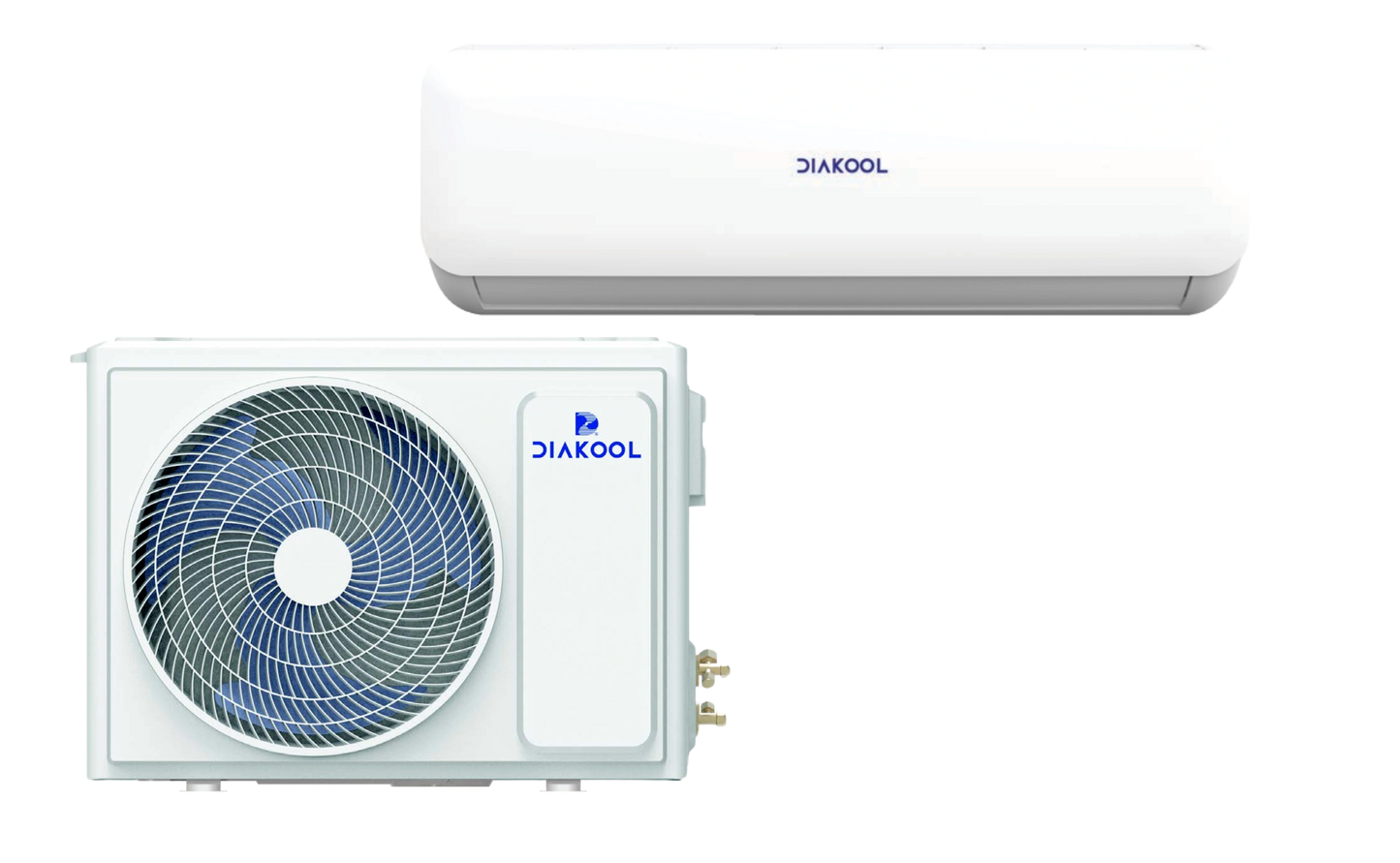

Diakool Wall Split AC Series
| Parameter | Value |
|---|---|
| Cooling Capacity (Rated) | 23,500 BTU/h (≈6.89 kW) |
| Nominal Capacity Class | 24,000 BTU |
| Refrigerant Type | R410A |
| Compressor Type | Rotary |
| Cooling Power Consumption | 2,150 W |
| Running Current | 9.8 A |
| Energy Efficiency Ratio (EER) | 10.93 BTU/h/W |
| Indoor Unit | 45 dB |
| Outdoor Unit | 56 dB |
| Air Flow Volume | 1,000 m³/h |
| Outdoor Unit Net Weight | 45 kg |
