Complete Features
Diakool ST3 Series Wall Split Air Conditioners deliver high performance and everyday comfort with a T3 Rotary Compressor for energy-efficient, low-noise operation. Golden Fins and a two-layer condenser coil enhance cooling efficiency, reduce energy use, and extend compressor life.
Find Out more FeaturesSpecifications

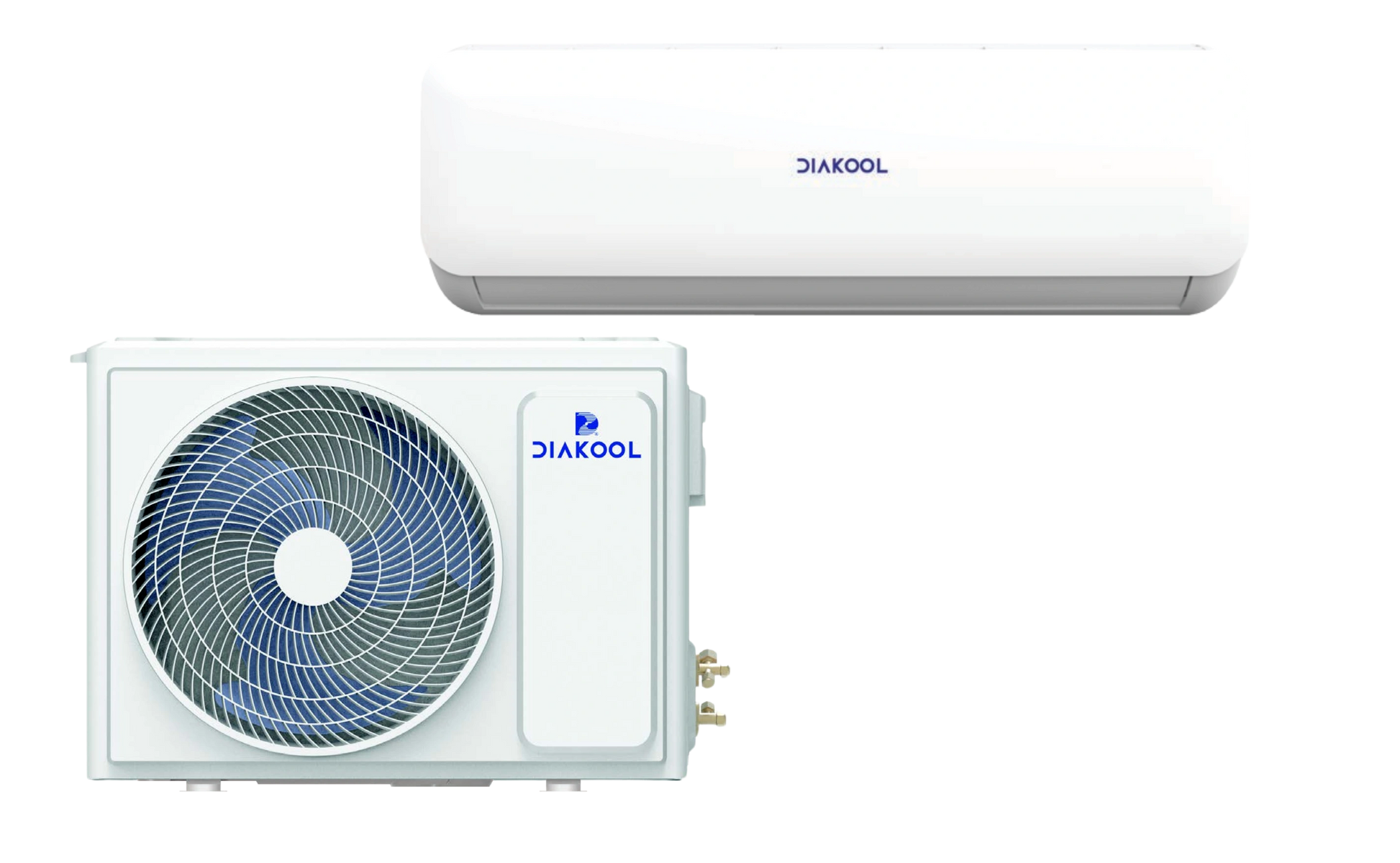

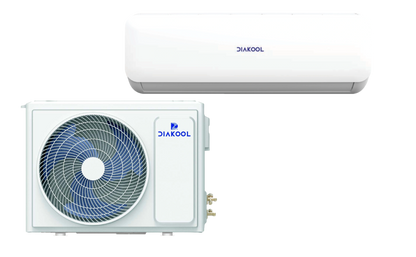

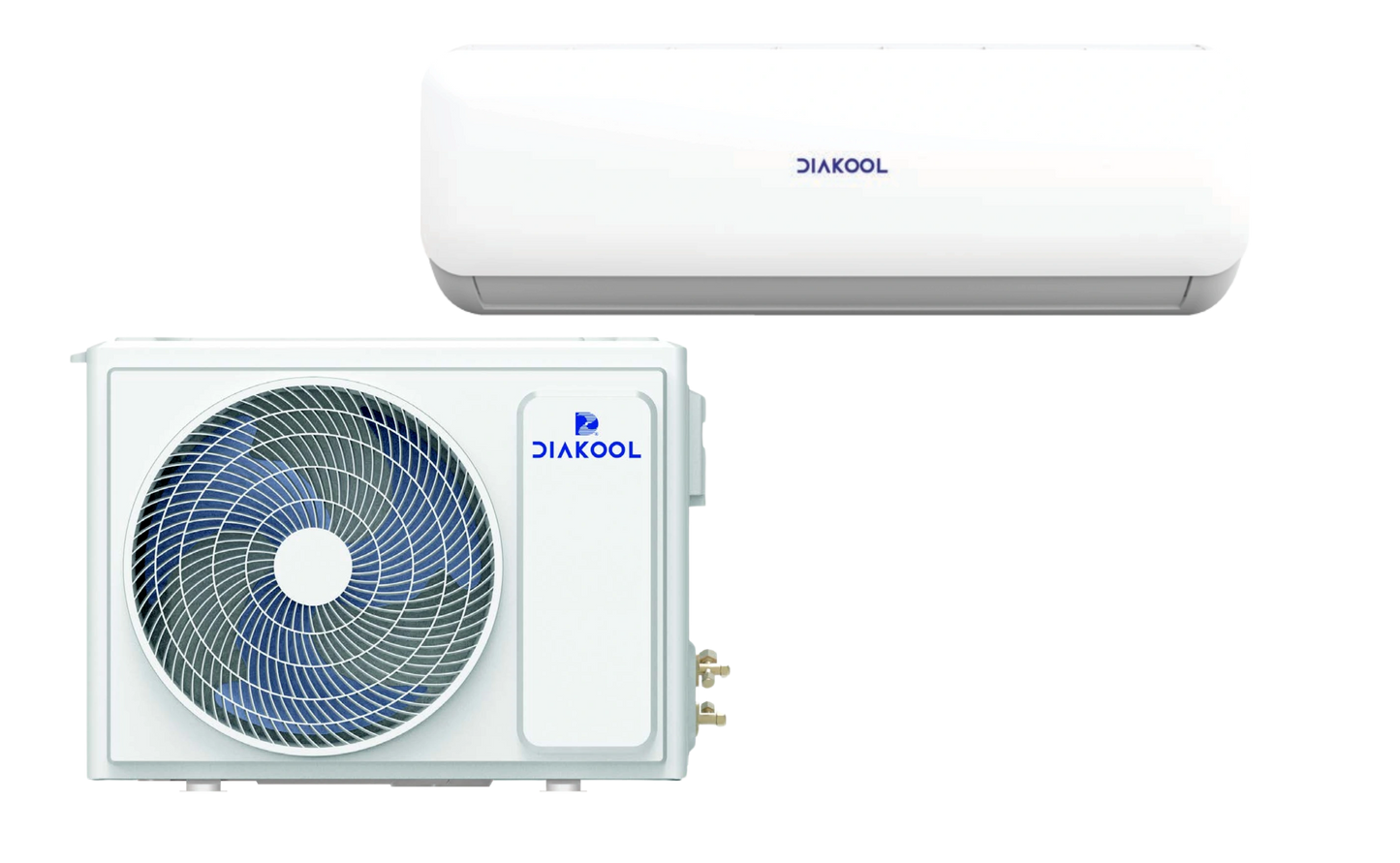

Diakool Wall Split AC Series
Parameter | Value |
---|---|
Cooling Capacity (Rated) | 35,000 BTU/h (≈10.26 kW) |
Nominal Capacity Class | 36,000 BTU |
Refrigerant Type | R410A |
Compressor Type | Rotary |
Cooling Power Consumption | 3,280 W |
Running Current | 14.8 A |
Energy Efficiency Ratio (EER) | 10.67 BTU/h/W |
Indoor Unit | 48 dB |
Outdoor Unit | 60 dB |
Air Flow Volume | 1,450 m³/h |
Outdoor Unit Net Weight | 62 kg |
