O General Cassette AC 1.5 Ton - AUGA18FRTA-U/AOGA18FBTBHU
O General Cassette AC 1.5 Ton - AUGA18FRTA-U/AOGA18FBTBHU

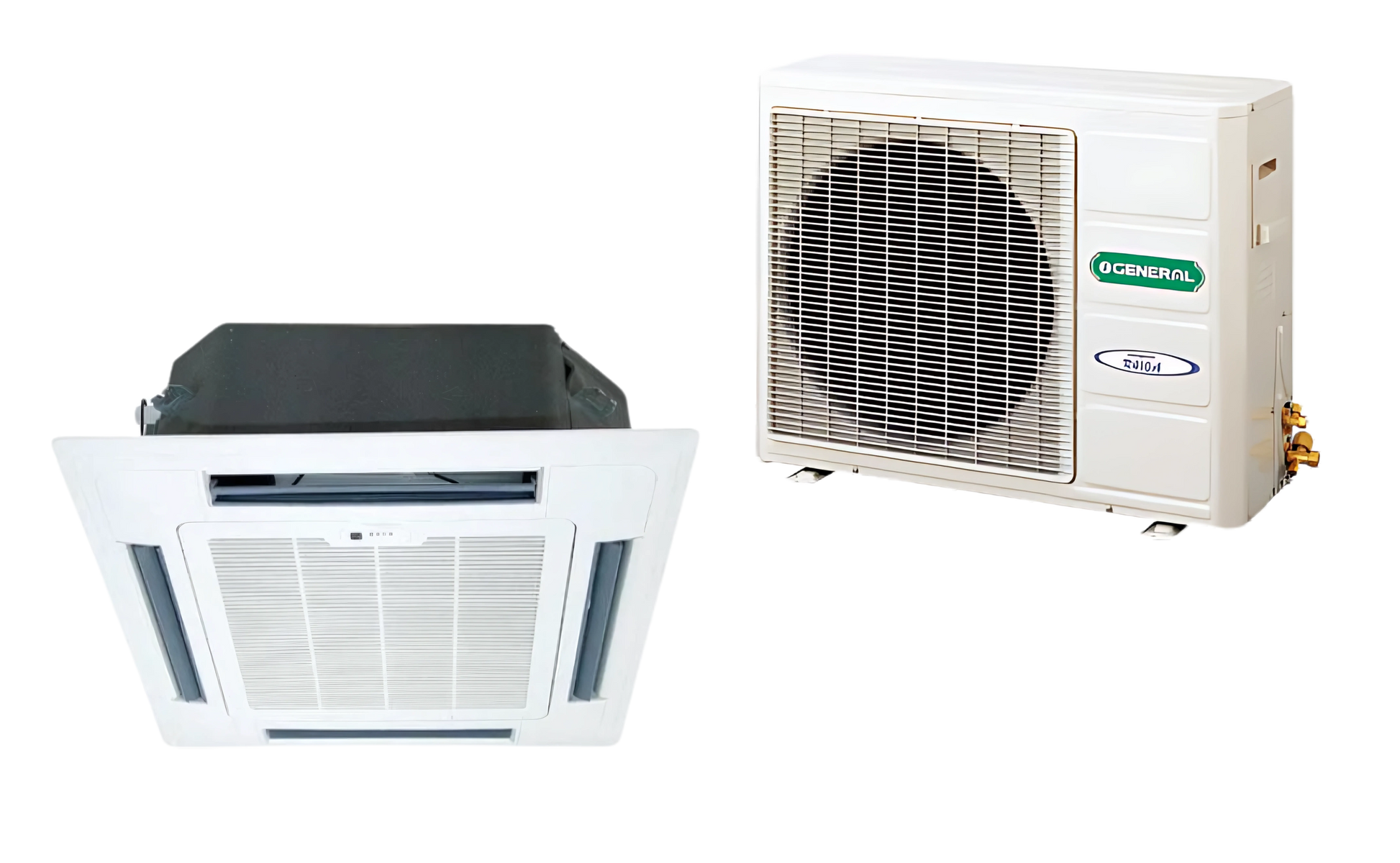

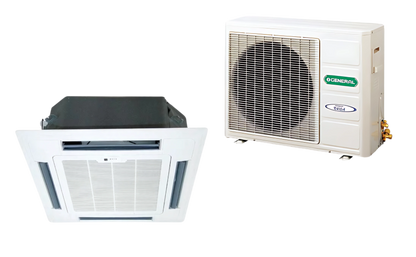

O General Cassette AC 1.5 Ton – AUGA18FRTA-U/AOGA18FBTBHU delivers efficient, high-performance cooling for residential and light commercial spaces. With a cooling capacity of 18,000 BTU and a durable rotary compressor, it ensures fast, uniform cooling even in demanding environments.
O General Cassette AC 1.5 Ton Specification is designed to be mounted discreetly in the ceiling, this cassette AC blends seamlessly into any interior, making it ideal for offices, retail stores, restaurants, and meeting rooms. Its multi-directional airflow system guarantees consistent cooling in every corner, while its quiet operation and energy-efficient design ensure comfort without excessive power consumption.
- Indoor Model: AUGA18FRTA-U

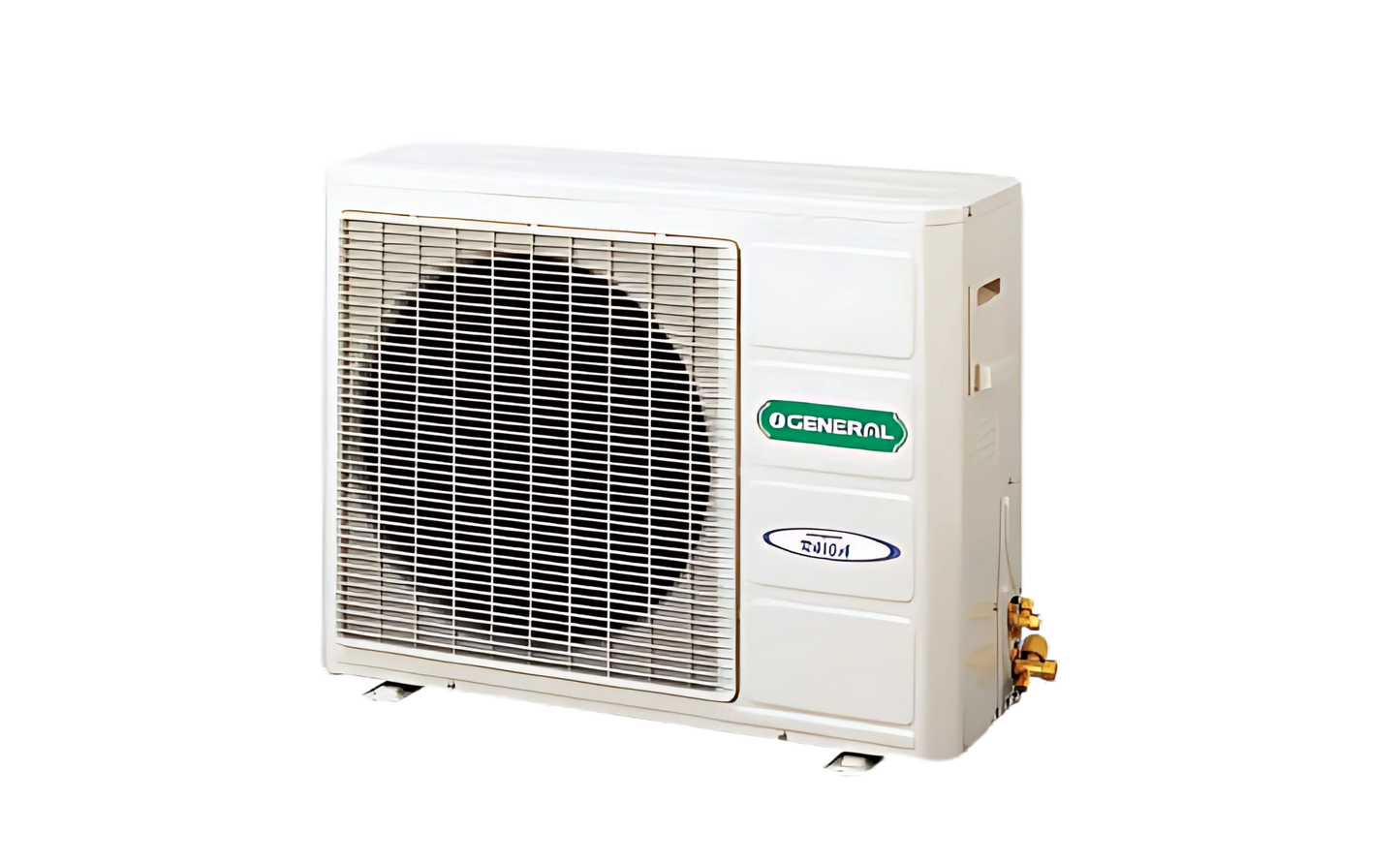

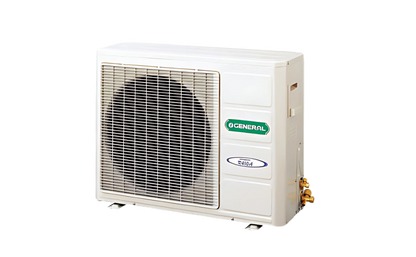

- Outdoor Model: AOGA18FBTBHU
- Compressor: Rotary
- Made in Thailand
- BTU: 18,000
Note: installation price may vary depends on the T&C's
Couldn't load pickup availability
- Shipping may take 2 to 3 working days

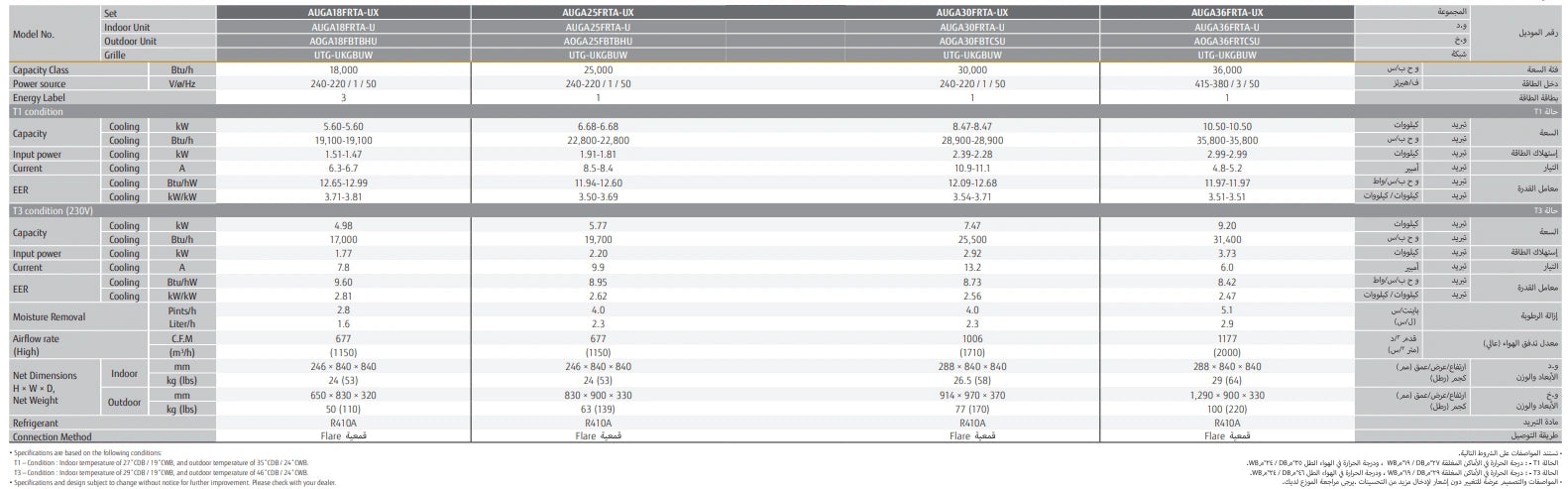

Specifications
| Parameter | Value |
|---|---|
| Model Name (Indoor) | AUGA18FRTA-U |
| Model Name (Outdoor) | AOGA18FBTBHU |
| Capacity Class | 18,000 BTU/h |
| Power Source | 220-240V / 1 / 50 Hz |
| Energy Label | 4 |
| T1 Capacity | 5.60–5.60 kW |
| T1 Input Power | 1.51–1.47 kW |
| T1 Current | 6.9–6.7 A |
| T1 EER | 3.71–3.81 kW/kW |
| T3 Capacity | 4.98 kW |
| T3 Input Power | 1.57 kW |
| T3 Current | 7.2 A |
| T3 EER | 3.17 kW/kW |
| Moisture Removal | 2.1 pints/h |
| Airflow Rate (Super High) | 1,100 CFM |
| Indoor Unit Dimensions (HxWxD) | 246 x 840 x 840 mm |
| Indoor Unit Weight | 24 kg |
| Outdoor Unit Dimensions (HxWxD) | 650 x 830 x 320 mm |
| Outdoor Unit Weight | 50 kg |
| Refrigerant | R410A |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
