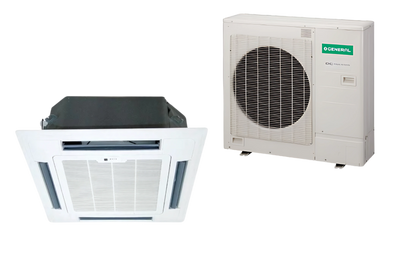

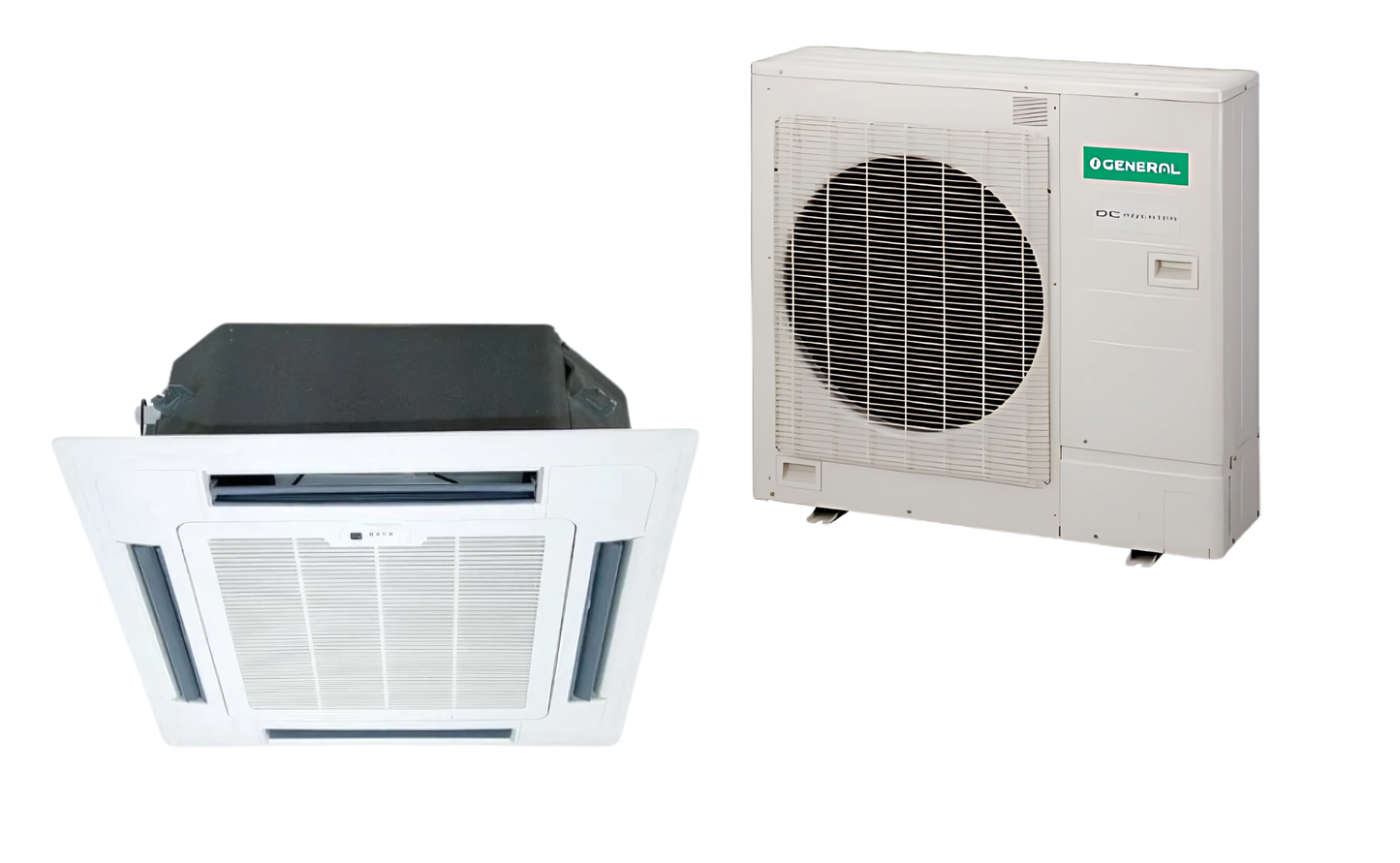

O General Cassette AC 2.5 Ton – AUGA30FRTA-U/AOGA30FBTCSU delivers 30,000 BTU of powerful cooling performance, making it an excellent choice for large commercial spaces, offices, restaurants, and conference halls. O General Cassette AC 2.5 Ton is equipped with a durable rotary compressor, this unit ensures fast cooling, consistent airflow, and energy-efficient operation even in demanding environments.
Its ceiling-mounted cassette design offers a discreet and space-saving installation, blending seamlessly with any interior while providing 4-way uniform air distribution for maximum comfort.
- Indoor Model: AUGA30FRTA-U

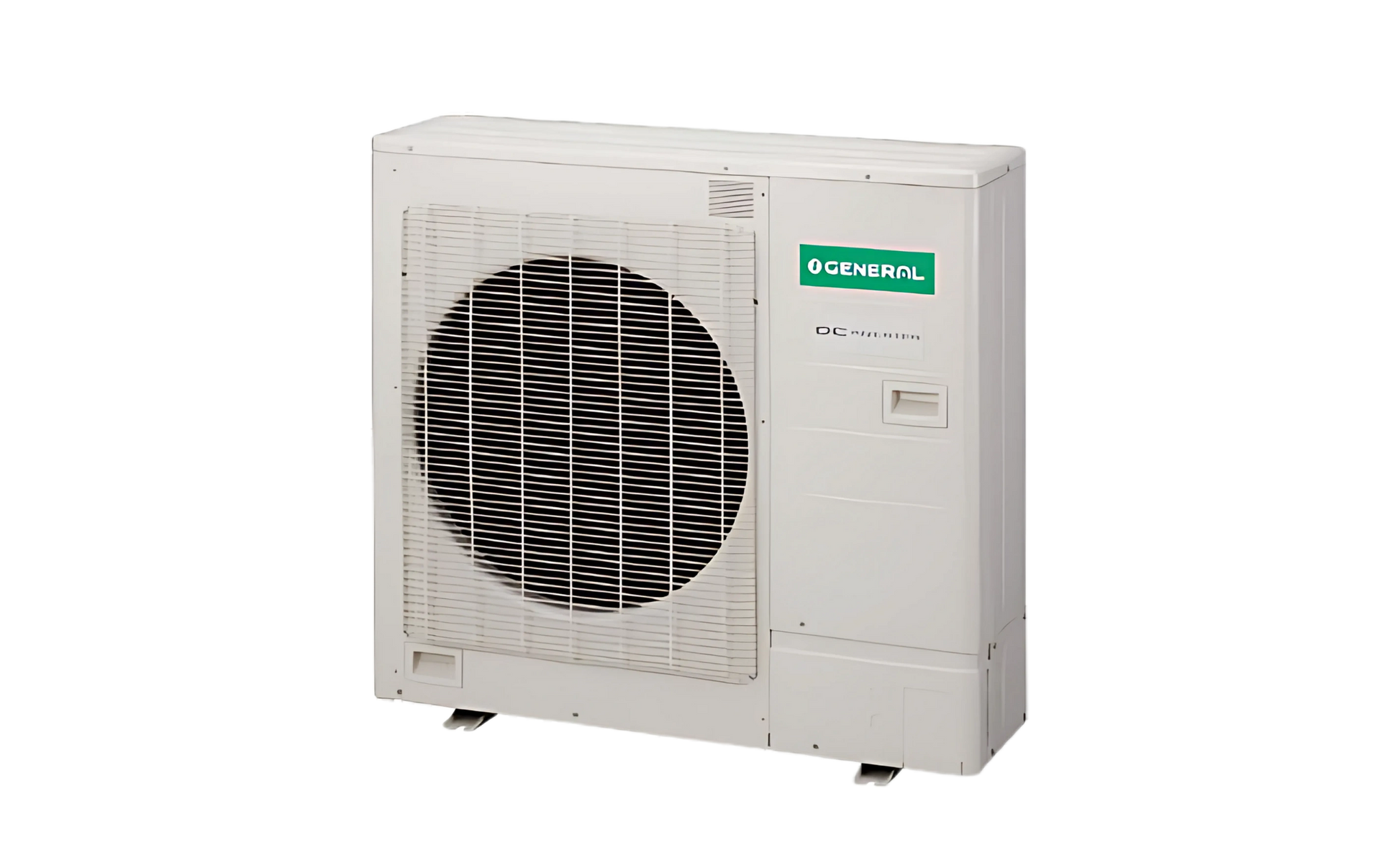

- Outdoor Model: AOGA30FBTCSU
- Compressor: Rotary
- Made in Thailand
- BTU: 30,000
Note: installation price may vary depends on the T&C's
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Model Name (Indoor) | AUGA30FRTA-U |
| Model Name (Outdoor) | AOGA30FBTCSU |
| Capacity Class | 30,000 BTU/h |
| Power Source | 240-220V / 1 / 50 Hz |
| Energy Label | 2 |
| T1 Capacity | 8.47–8.47 kW |
| Input Power | 2.29–2.28 kW |
| Current | 10.0–9.8 A |
| EER | 3.54–3.54 kW/kW |
| T3 Capacity | 7.47 kW |
| Input Power | 2.94 kW |
| Current | 13.9 A |
| EER | 2.54 kW/kW |
| Moisture Removal | 3.2 pints/h |
| Airflow Rate (Super High) | 1,450 CFM |
| Indoor Unit (HxWxD) | 288 x 840 x 840 mm |
| Indoor Unit Weight | 30 kg |
| Outdoor Unit (HxWxD) | 914 x 970 x 370 mm |
| Outdoor Unit Weight | 77 kg |
| Refrigerant | R410A |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
