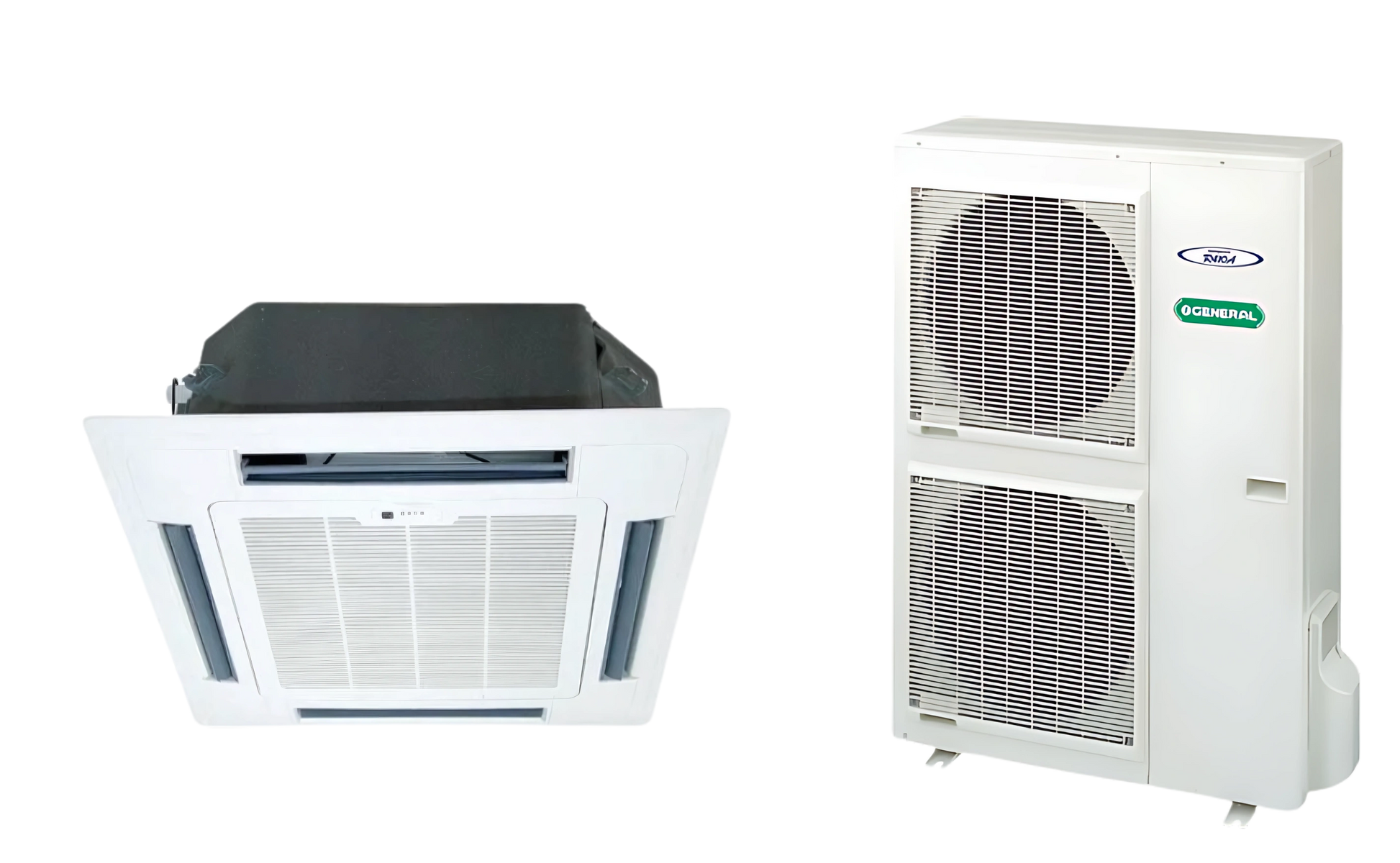

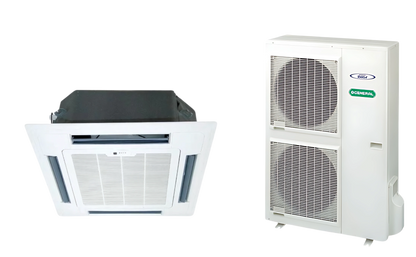

O General Cassette AC 3.0 Ton - AUGA36FRTA-U / AOGA36FRTCSU
O General Cassette AC 3.0 Ton - AUGA36FRTA-U / AOGA36FRTCSU
O General Cassette AC 3.0 Ton – AUGA36FRTA-U/AOGA36FRTCSU delivers a robust 36,000 BTU of cooling capacity, making it an ideal choice for large commercial spaces, hotels, banquet halls, and offices. O General Cassette AC 3.0 Ton is equipped with a high-performance scroll compressor, it ensures rapid temperature reduction, consistent airflow, and superior energy efficiency even under heavy usage.
Its sleek ceiling-mounted cassette design offers 4-way airflow distribution for uniform cooling across the entire space, while maintaining a discreet appearance that blends with any décor.
- Indoor Model: AUGA36FRTA-U

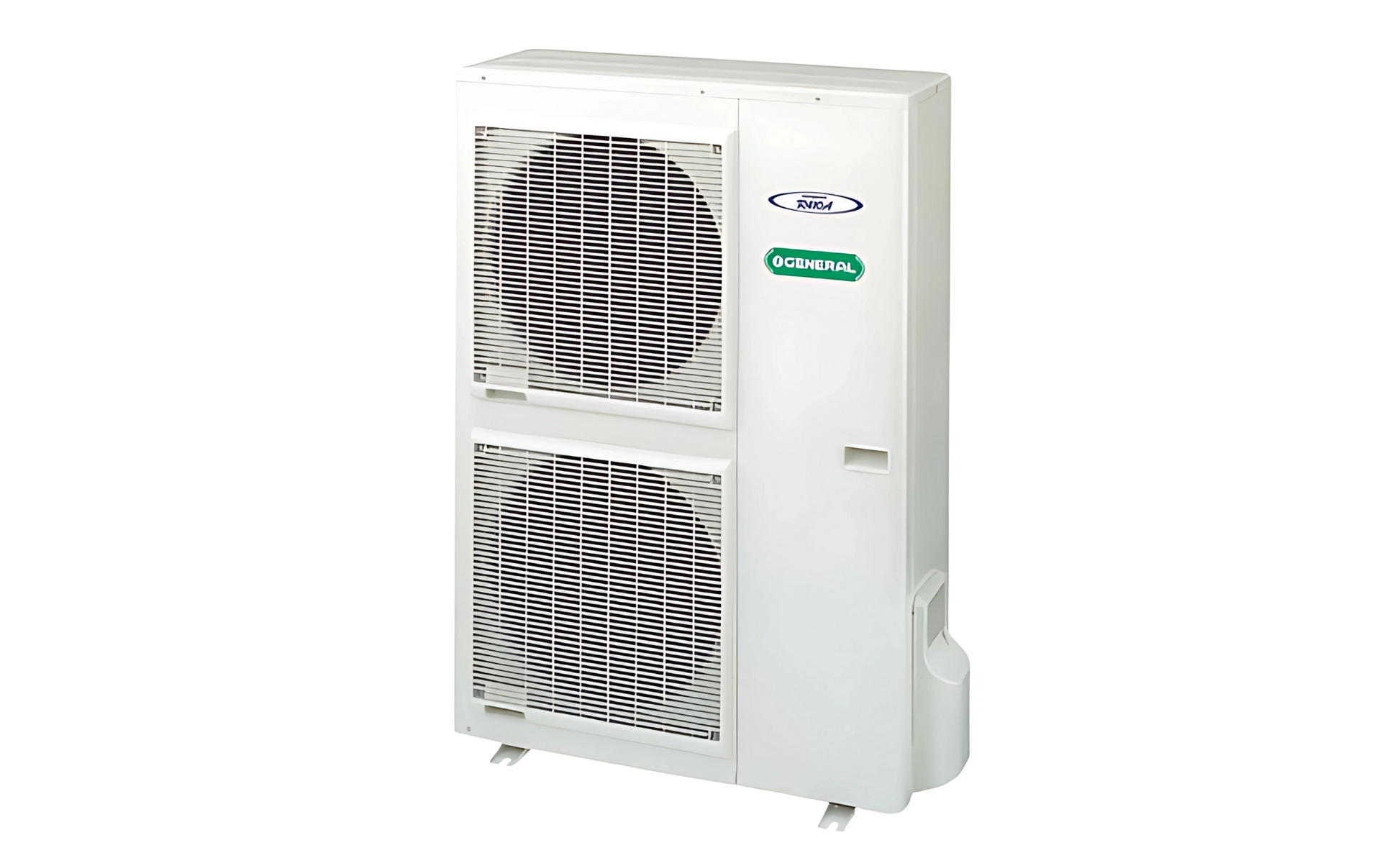

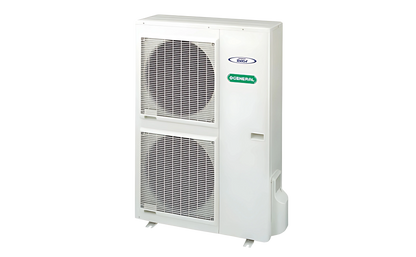

- Outdoor Model: AOGA36FRTCSU
- Compressor: Scroll
- Made in Thailand
- BTU: 36,000
Note: installation price may vary depends on the T&C's
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Model Name (Indoor) | AUGA36FRTA-U |
| Model Name (Outdoor) | AOGA36FRTCSU |
| Capacity Class | 36,000 BTU/h |
| Power Source | 415-380V / 3 / 50 Hz |
| Energy Label | 2 |
| T1 Capacity | 10.50–10.50 kW |
| Input Power | 2.92–2.92 kW |
| Current | 4.9–4.8 A |
| EER | 3.59–3.59 kW/kW |
| T3 Capacity | 9.20 kW |
| Input Power | 3.75 kW |
| Current | 6.5 A |
| EER | 2.45 kW/kW |
| Moisture Removal | 4.8 pints/h |
| Airflow Rate (Super High) | 1,550 CFM |
| Indoor Unit (HxWxD) | 288 x 840 x 840 mm |
| Indoor Unit Weight | 30 kg |
| Outdoor Unit (HxWxD) | 1,290 x 900 x 330 mm |
| Outdoor Unit Weight | 88 kg |
| Refrigerant | R410A |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
