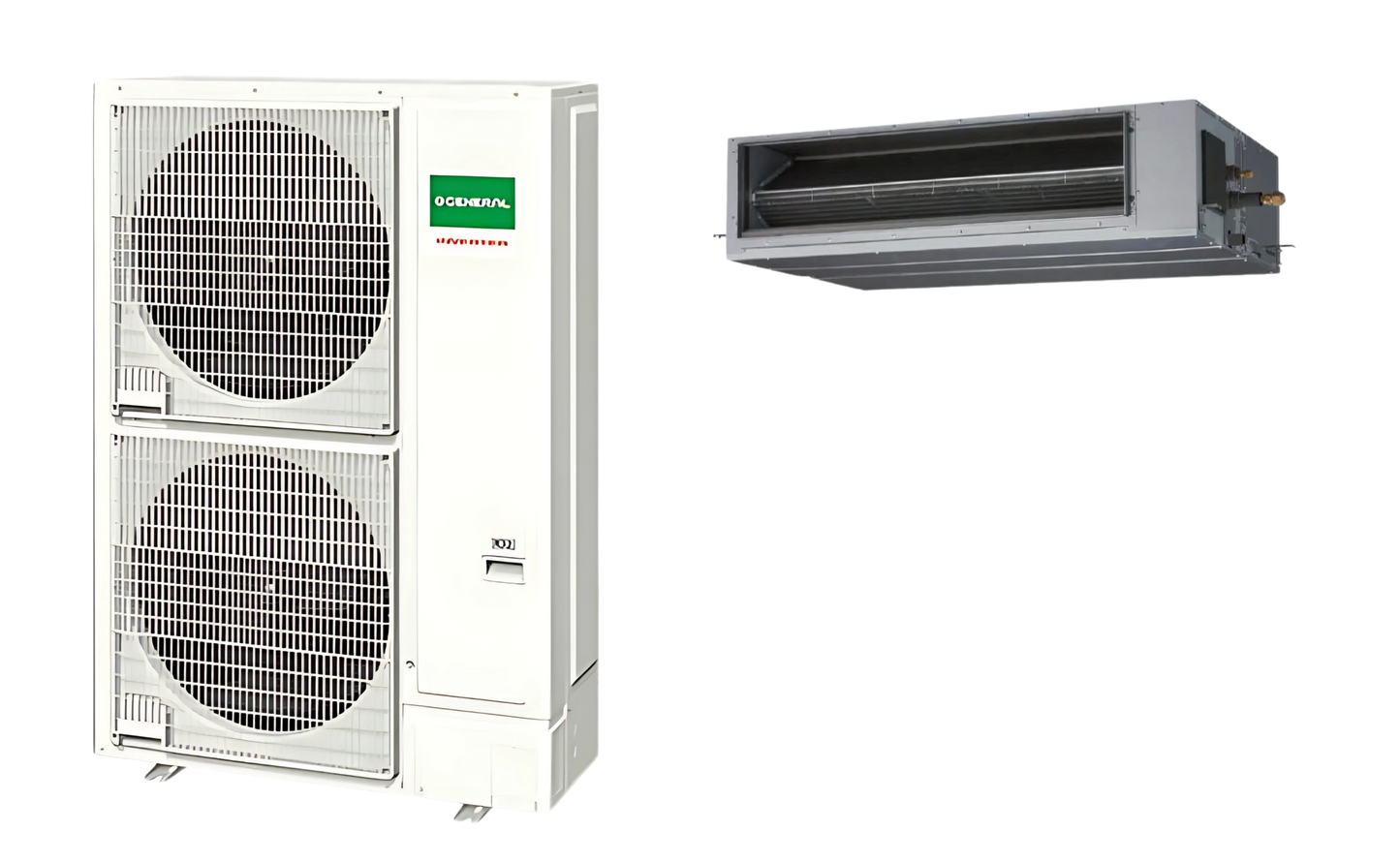

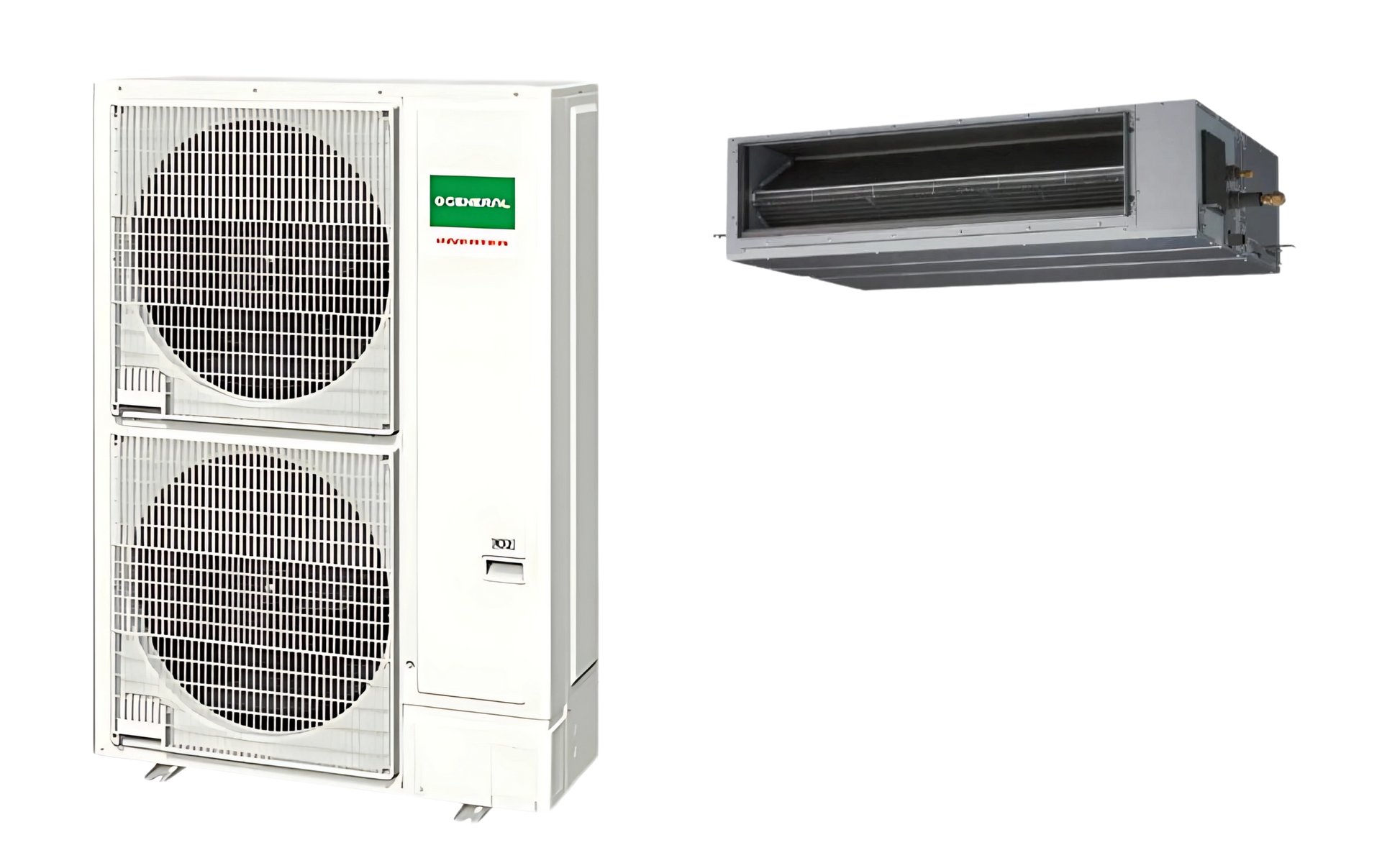

O General Ducted AC 3.8 Ton - ARGA45FMTD-U
O General Ducted AC 3.8 Ton - ARGA45FMTD-U
O General Ducted AC 3.8 Ton – ARGA45FMTD-U/AOGA45FRTDSU is built for powerful, large-scale cooling in commercial and residential applications. Delivering 45,000 BTU of cooling capacity, this system uses a durable scroll compressor to ensure stable and efficient operation, even in ambient temperatures up to 55°C.
O General Ducted AC 3.8 Ton ARGA series is concealed ducted design allows for seamless ceiling integration, providing uniform airflow without impacting your interior aesthetics. Manufactured in Thailand and equipped with eco-friendly R410A refrigerant, the ARGA Series offers easy installation, low maintenance, and long-lasting performance. This non-inverter unit is perfect for high-demand environments such as offices, retail spaces, and banquet halls.
- Indoor Model: ARGA45FMTD-U
- Outdoor Model: AOGA45FRTDSU
- Compressor: Scroll
- Made in Thailand
- BTU: 45,000
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Indoor Model | ARGA45FMTD-U |
| Outdoor Model | AOGA45FRTDSU |
| Nominal Cooling Capacity | 3.75 TR |
| Total (TKW) | 11.37 kW |
| Sensible (SKW) | 9.72 kW |
| Airflow | 661 L/s |
| On Coil Temperature | 24°C DB / 17°C WB |
| T1 Condition Power Input | 3.96 kW |
| EER | 11.63 BTU/h/W |
| T3 Condition Power Input | 4.87 kW |
| EER | 8.55 BTU/h/W |
| Power Supply | 380-415 V / 3 Phase / 50 Hz |
| Liquid Line (Discharge) | 3/8″ |
| Gas Line (Suction) | 3/4″ |
| Maximum Piping Length (Total / Height) | 50 m / 30 m |
| Indoor Dimensions (HxWxD) | 300 x 1,400 x 850 mm |
| Weight | 46 kg |
| Outdoor Dimensions (HxWxD) | 1,290 x 900 x 330 mm |
| Weight | 88 kg |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
