Specifications

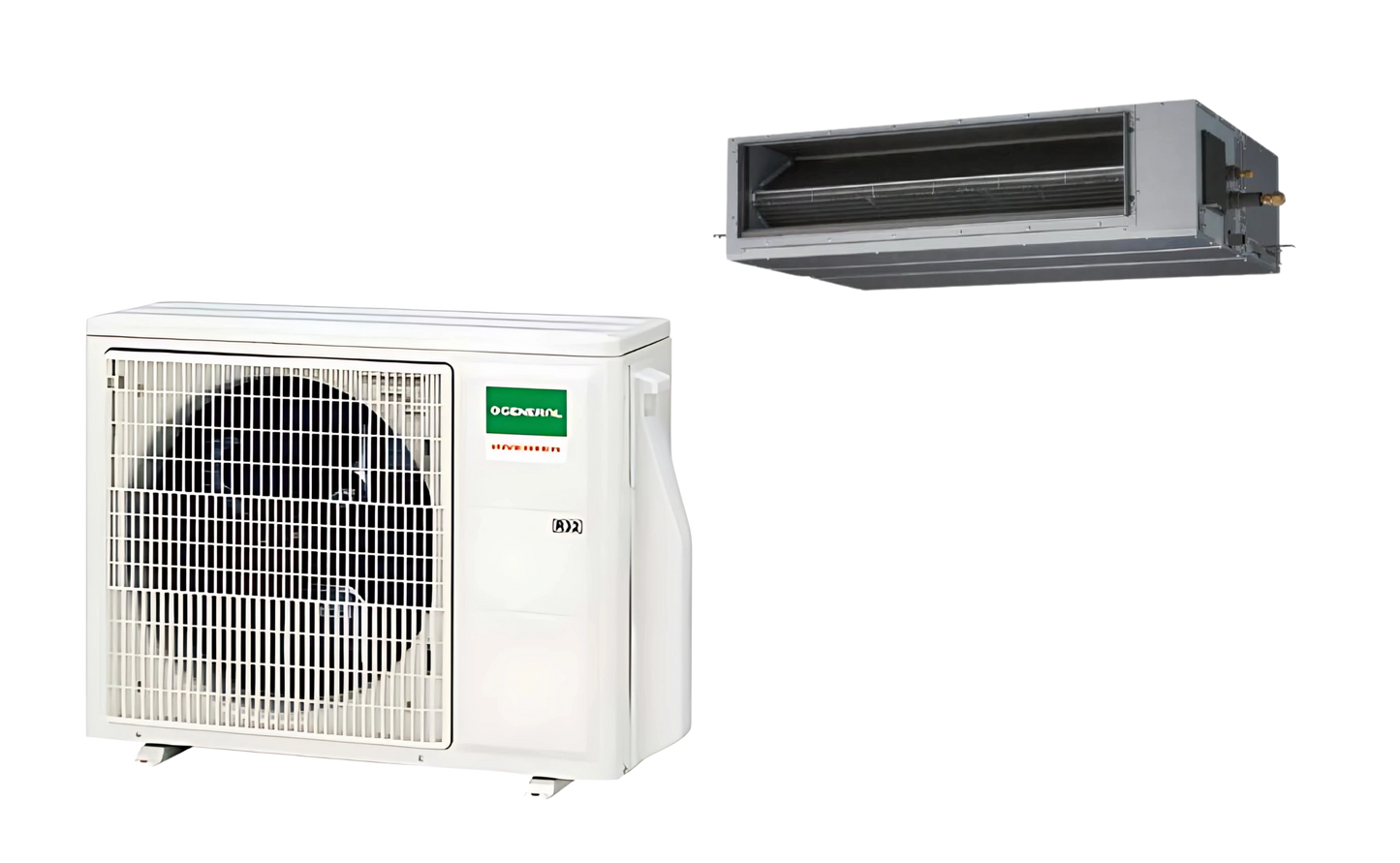

O General Ducted Unit
Parameter | Value |
---|---|
Indoor Model | ARGA18FTMA-U |
Outdoor Model | AOGA18FBTAH-U |
Nominal Cooling Capacity | 1.5 TR |
Cooling Load Total (TKW) | 4.30 kW |
Sensible (SKW) | 3.41 kW |
Airflow | 261 L/s |
On Coil Temperature | 24°C DB / 17°C WB |
T1 Condition Power Input | 1.53 kW |
EER | 11.6 – 11.73 BTU/h/W |
T3 Condition Power Input | 1.80 kW |
EER | 8.33 BTU/h/W |
Power Supply | 220–240V / 1 Phase / 50 Hz |
Liquid Line | 1/4″ |
Gas Line (Suction) | 5/8″ |
Max Total Piping Length / Height Difference | 20 m / 8 m |
Indoor Unit Dimensions (HxWxD) | 270 x 1,135 x 700 mm |
Weight | 38 kg |
Outdoor Unit Dimensions (HxWxD) | 650 x 830 x 320 mm |
Weight | 50 kg |
