Specifications

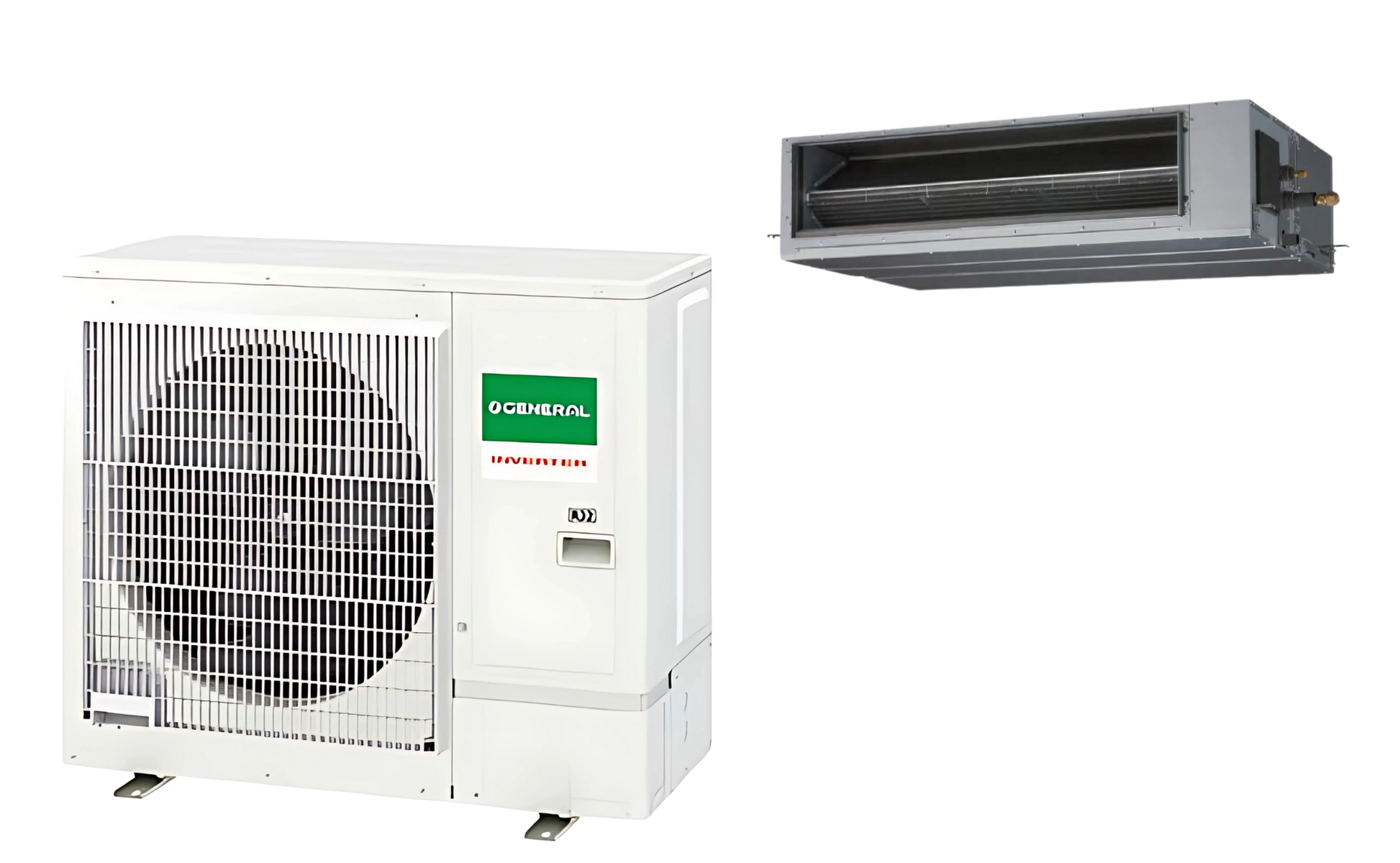

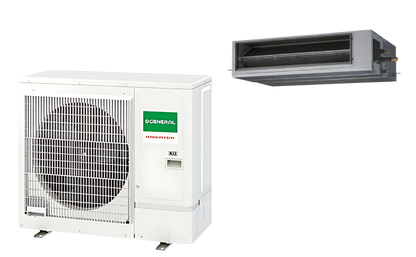

O General Ducted Unit
Parameter | Value |
---|---|
Indoor Model | ARGA30FTMA-U |
Outdoor Model | AOGA30FBTASU |
Nominal Cooling Capacity | 2.5 TR |
Total (TKW) | 7.02 kW |
Sensible (SKW) | 6.12 kW |
Airflow | 472 L/s |
On Coil Temperature | 24°C DB / 17°C WB |
T1 Condition Power Input | 2.87 kW |
EER | 11.21 BTU/h/W |
T3 Condition Power Input | 3.52 kW |
EER | 8.62 BTU/h/W |
Power Supply | 220–240V / 1 Phase / 50 Hz |
Liquid Line (Discharge) | 3/8″ |
Gas Line (Suction) | 5/8″ |
Max. Piping Length / Height Difference | 30 m / 20 m |
Indoor Unit Dimensions (HxWxD) | 290 x 1,135 x 800 mm |
Weight | 48 kg |

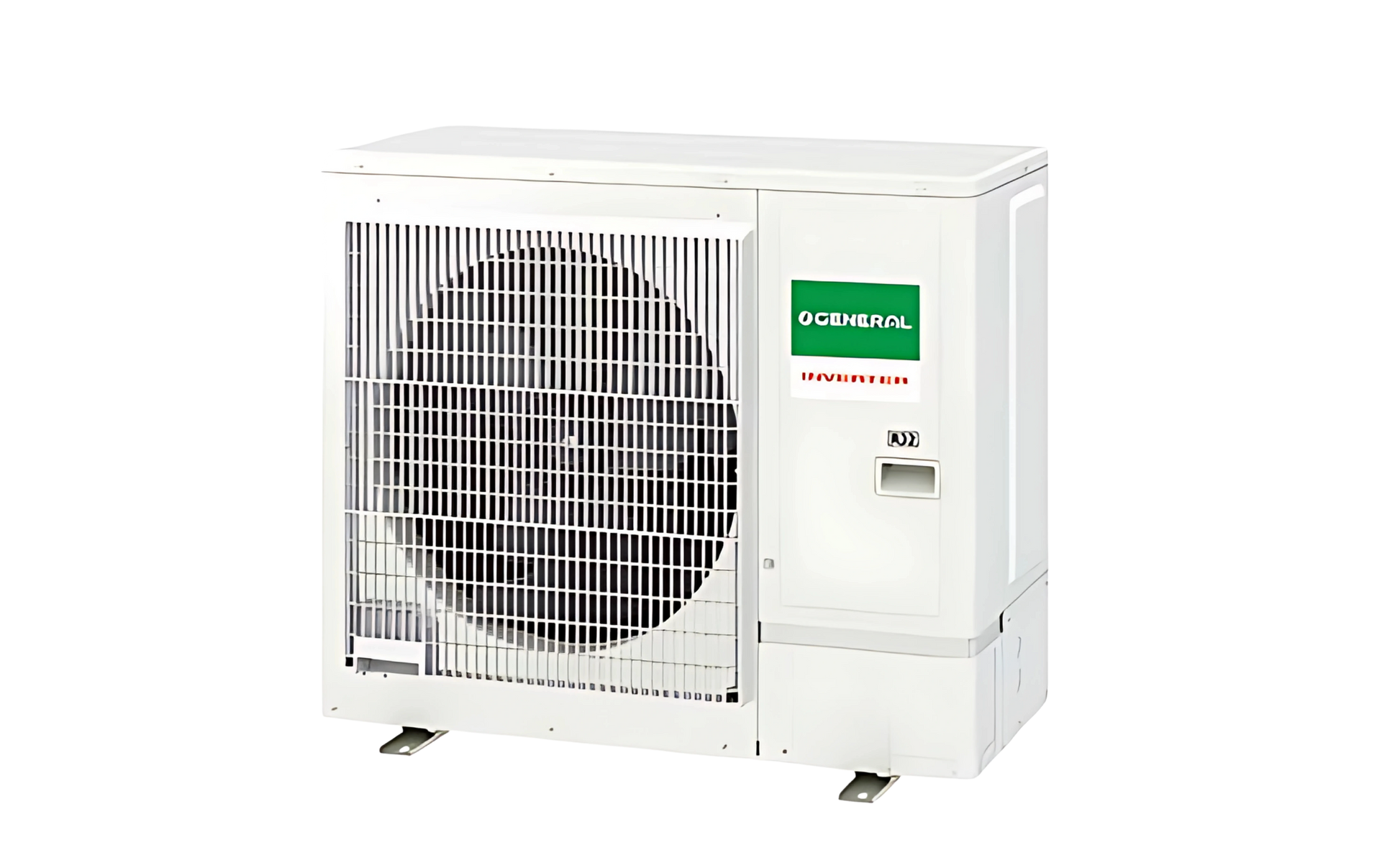

Outdoor Unit Dimensions (HxWxD) | 860 x 900 x 330 mm |
Weight | 67 kg |
