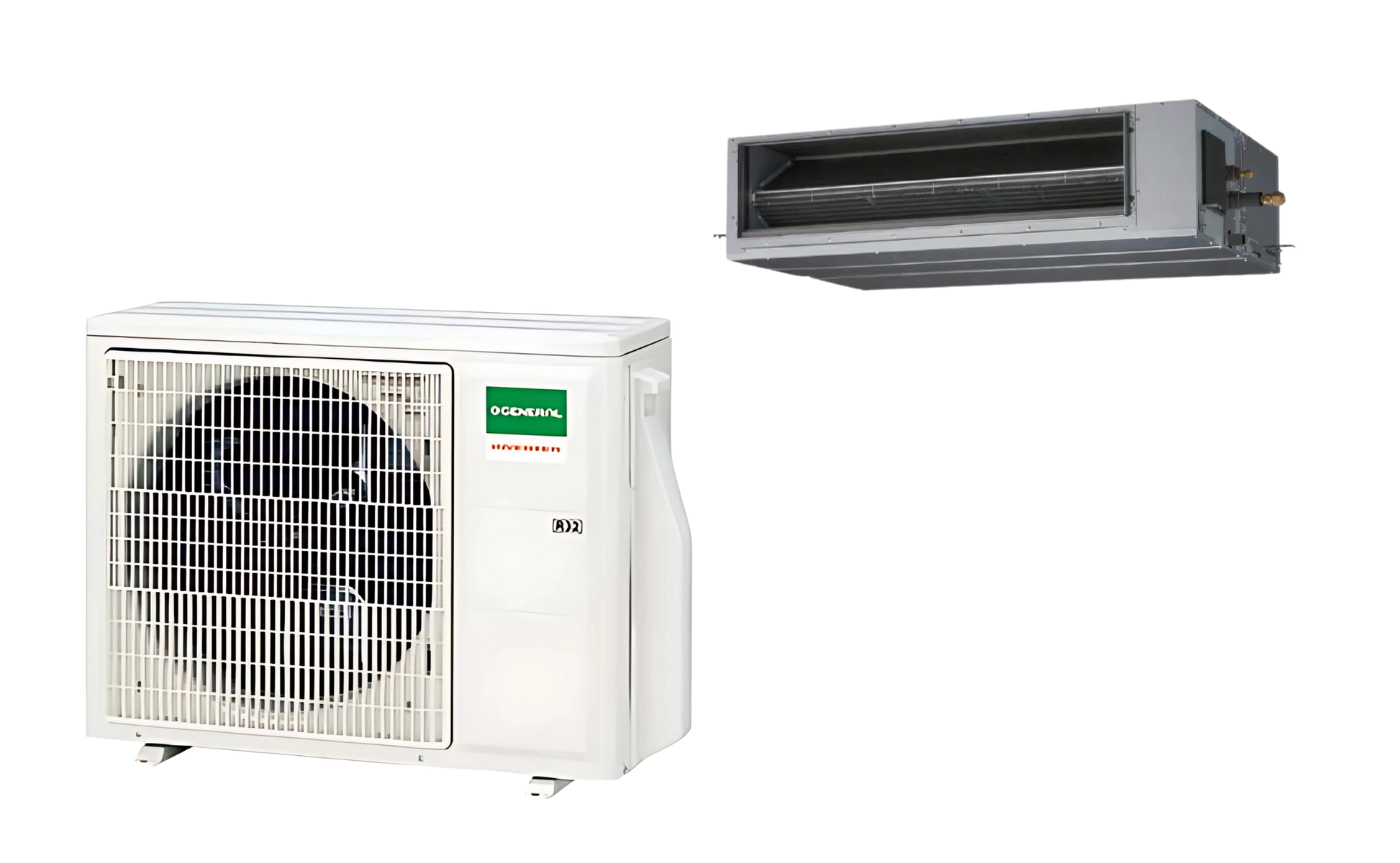

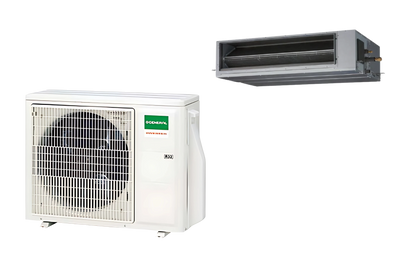

O General Ducted Inverter AC 2.0 Ton - ARGH24CMTA-U
O General Ducted Inverter AC 2.0 Ton - ARGH24CMTA-U
O General Ducted Inverter AC 2.0 Ton – ARGH24CMTA-U/AOGH24CBTA-U is designed to deliver powerful cooling with advanced inverter efficiency, making it ideal for both residential and light commercial spaces. With a 24,000 BTU capacity and a high-performance DC inverter compressor, this unit ensures precise temperature control, faster cooling, and reduced energy consumption.
O General Ducted Inverter AC 2.0 Ton is slim ducted design allows seamless ceiling installation, maintaining clean interior aesthetics while distributing uniform airflow across large rooms. Features such as the self-cleaning function further reduce maintenance, while quiet operation ensures consistent comfort year-round.
- Indoor Model: ARGH24CMTA-U
- Outdoor Model: AOGH24CBTA-U
- Compressor: Inverter
- Made in Thailand
- BTU: 24,000
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Cooling Capacity (T1) | 22,000 BTU/h (6.45 kW) [Min 6,820 – Max 23,100 BTU/h] |
| Cooling Capacity (T3) | 19,400 BTU/h (5.69 kW) [Min 5,290 – Max 20,000 BTU/h] |
| Energy Efficiency Ratio | EER 11.83 BTU/W (3.47 W/W) at T1; ~9.07 BTU/W at T3 |
| Power Supply | 220–240V, 1-Phase, 50 Hz (single-phase) |
| Power Input (Cooling) | 1.86 kW (T1); 2.14 kW (T3) |
| Running Current | 8.6 A (T1); 9.8 A (T3) |
| Moisture Removal | 2.3 liters/hour (approx.) |
| Airflow (Indoor Fan) | ~1,300 CFM (High); ~800 CFM (Quiet) |
| Sound Pressure (Indoor) | 38 dB(A) (High) / 27 dB(A) (Quiet) |
| Sound Pressure (Outdoor) | ≤70 dB(A) (max) |
| Dimensions (Indoor Unit) | 240 × 1,000 × 700 mm (H×W×D) |
| Dimensions (Outdoor Unit) | 632 × 799 × 290 mm (H×W×D) |
| Weight (Indoor / Outdoor) | 30.5 kg / 31 kg (Net) |
| Refrigerant | R32, 0.90 kg charge |
| Piping Connections | Liquid: 6.35 mm (1/4") / Gas: 12.70 mm (1/2") – Flare |
| Static Pressure Range | 30–150 Pa (external static, adjustable) |
| Operating Range | Indoor 18–32 °C / Outdoor 18–55 °C (cooling) |
| Controller Options | Wired thermostat (UTY-series, optional) / Wi-Fi app (adapter required) |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
