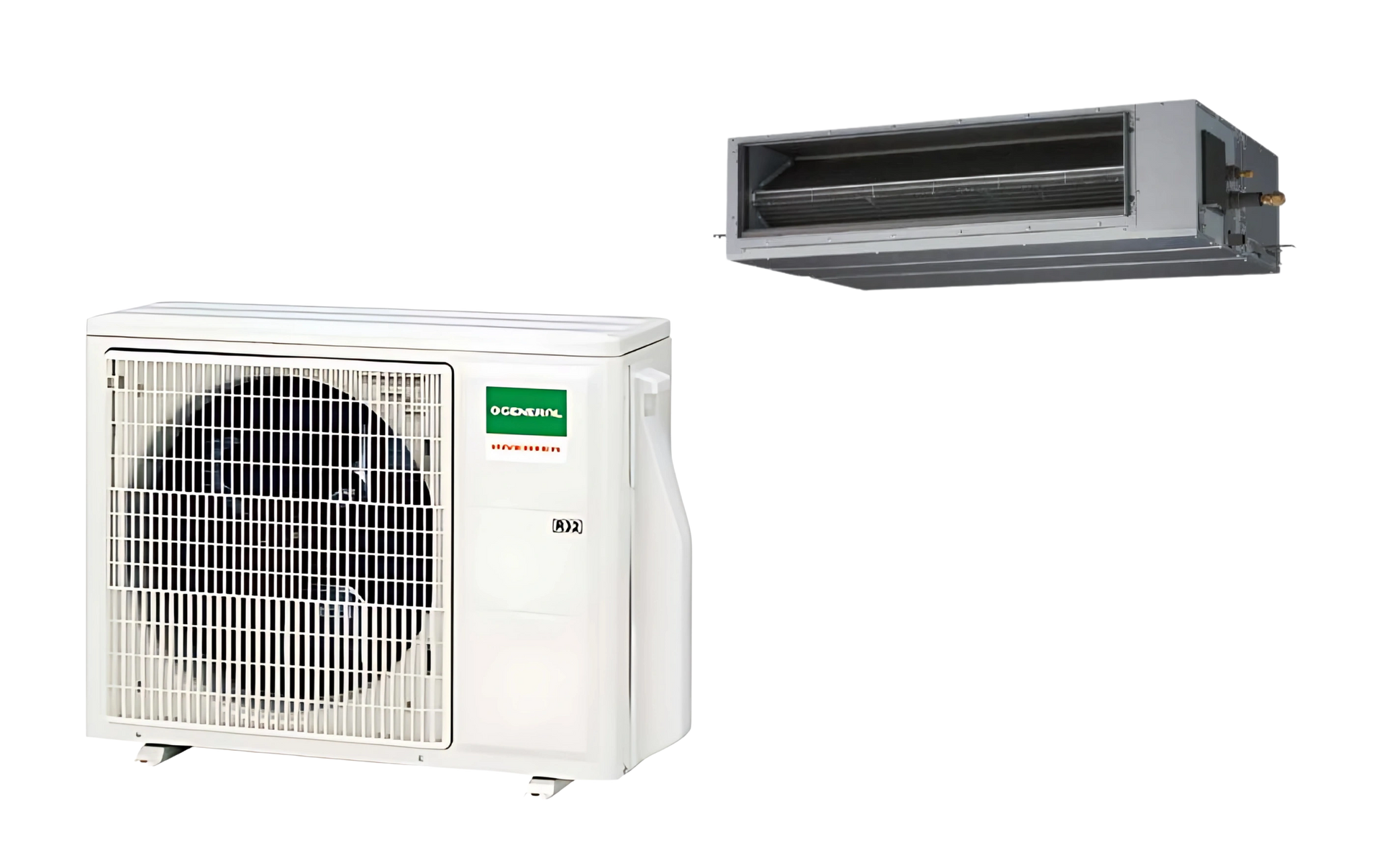

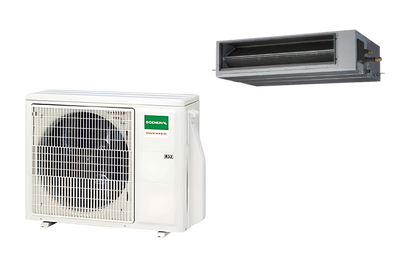

O General Ducted Inverter AC 2.5 Ton – ARGH30CMTA-U/AOGH30CBTA-U is engineered to deliver high-efficiency cooling with advanced inverter technology, making it a perfect solution for medium to large residential and light commercial spaces. With a 27,600 BTU cooling capacity and a DC inverter compressor, this system ensures precise temperature control, rapid cooling, and reduced energy consumption.
O General Ducted Inverter AC 2.5 Ton is concealed ducted design allows discreet ceiling installation for a seamless interior look, while ensuring uniform airflow throughout the space. Built in Thailand with a golden fin condenser for enhanced durability and corrosion resistance, the ARGH Series is designed for long-lasting reliability. A self-cleaning function helps maintain hygiene and optimal performance with minimal maintenance, while its quiet operation provides year-round comfort.

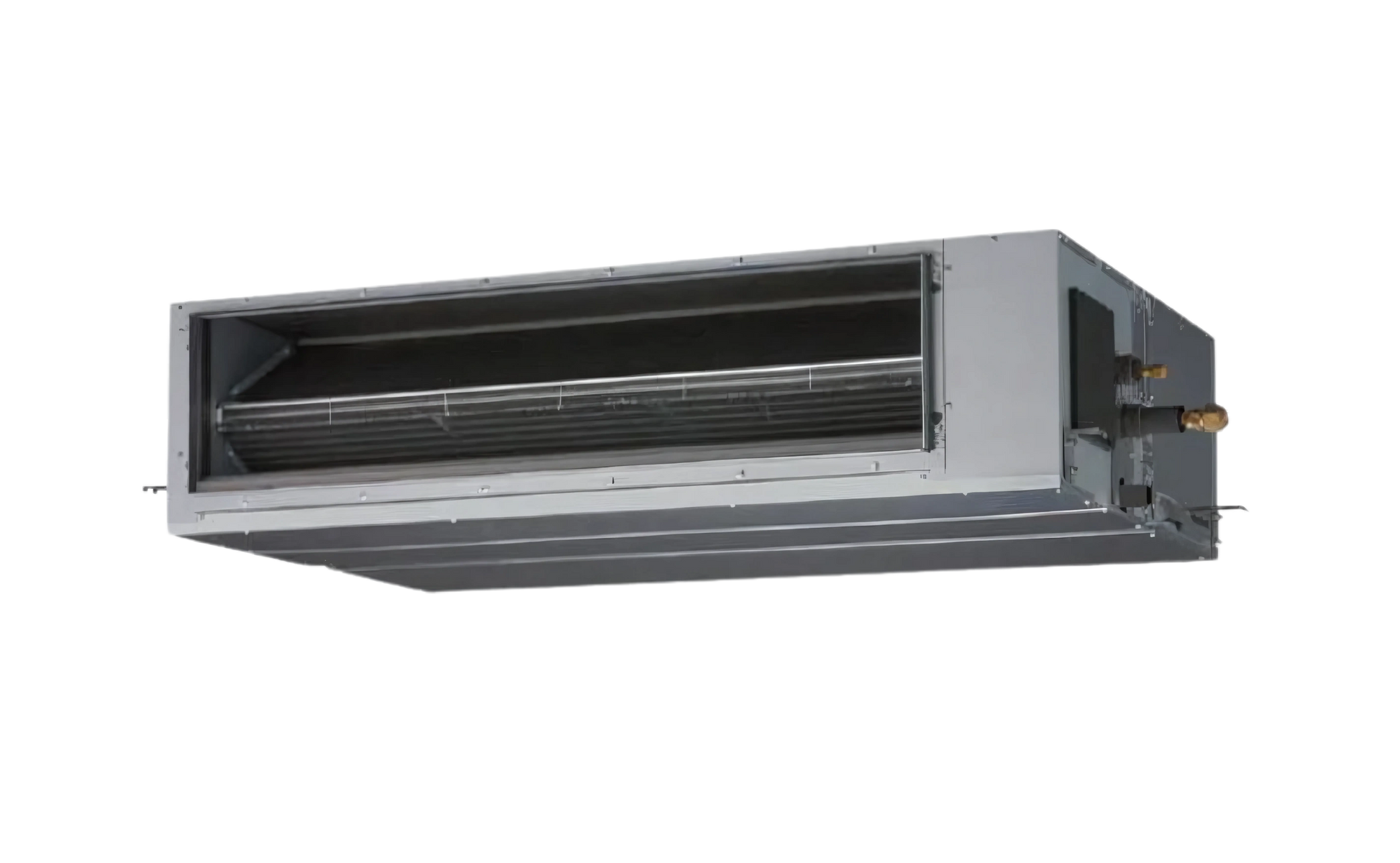

- Indoor Model: ARGH30CMTA-U

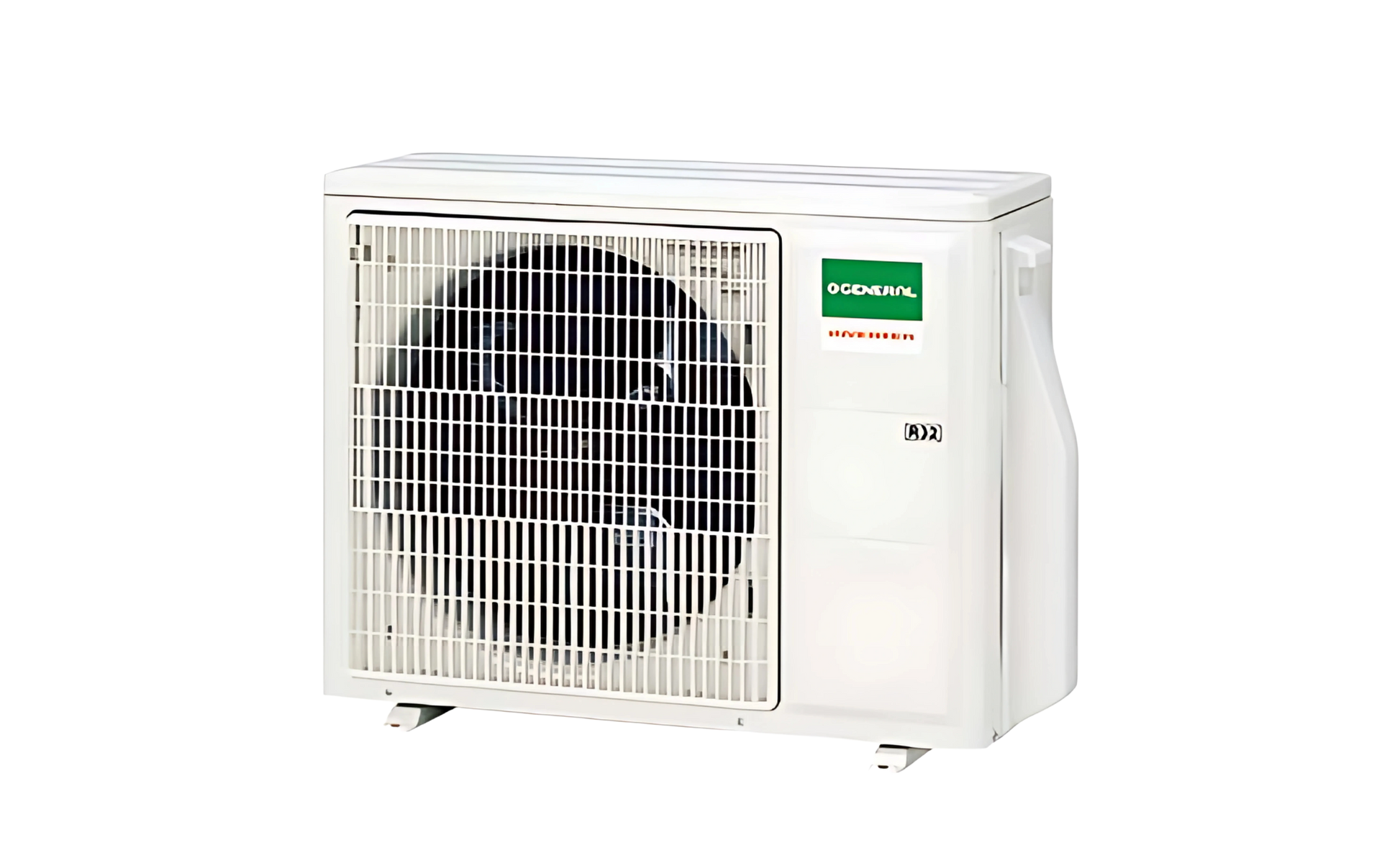

- Outdoor Model: AOGH30CBTA-U
- Compressor: Inverter
- Made in Thailand
- BTU: 27,600
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Cooling Capacity (T1) | 27,600 BTU/h (8.09 kW) [Min 9,690 – Max 29,800 BTU/h] |
| Cooling Capacity (T3) | 24,400 BTU/h (7.15 kW) [Min 8,530 – Max 25,400 BTU/h] |
| Energy Efficiency Ratio | EER 11.65 BTU/W (3.41 W/W) at T1; ~9.10 BTU/W at T3 |
| Power Supply | 220–240V, 1-Phase, 50 Hz (dedicated circuit recommended) |
| Power Input (Cooling) | 2.37 kW (T1); 2.68 kW (T3) |
| Running Current | 10.7 A (T1); 12.0 A (T3) |
| Moisture Removal | ~3.0 liters/hour |
| Airflow (Indoor Fan) | 2,000 m³/h (≈1,177 CFM) High; 1,210 m³/h (712 CFM) Quiet |
| Sound Pressure (Indoor) | 38 dB(A) (High) / 29 dB(A) (Quiet) |
| Sound Pressure (Outdoor) | ~54 dB(A) (at 1m, half load est.) – max <70 dB(A) |
| Dimensions (Indoor Unit) | 240 × 1,400 × 700 mm (H×W×D) |
| Dimensions (Outdoor Unit) | 716 × 820 × 315 mm (H×W×D) |
| Weight (Indoor / Outdoor) | 41.5 kg / 37 kg (Net) |
| Refrigerant | R32, 1.10 kg charge |
| Piping Connections | Liquid: 9.52 mm (3/8") / Gas: 15.88 mm (5/8") – Flare |
| Static Pressure Range | 30–150 Pa (external static pressure) |
| Operating Range | Indoor 18–32 °C / Outdoor 18–55 °C (desert operation) |
| Controller Options | Wired remote controller / IR remote (optional kit) / Wi-Fi control ready |
-
