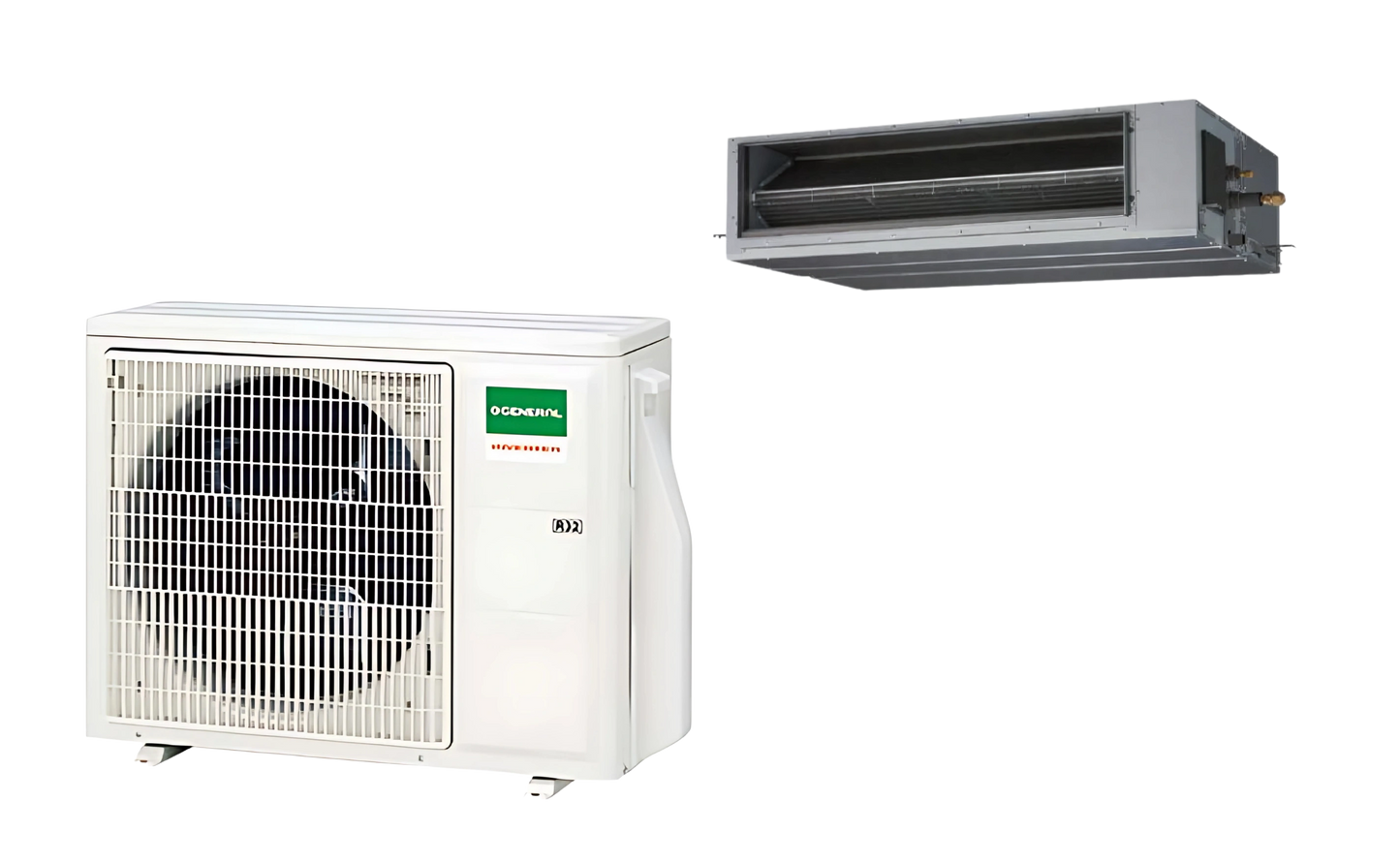

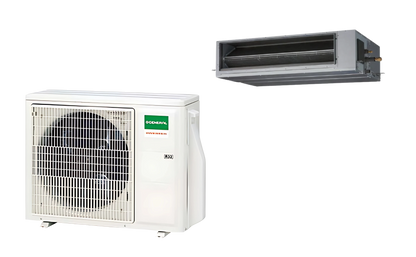

O General Ducted Inverter AC 3.0 Ton - ARGH36CMTA-U
O General Ducted Inverter AC 3.0 Ton - ARGH36CMTA-U
O General Ducted Inverter AC 3.0 Ton – ARGH36CMTA-U/AOGH36CBTA-U is designed to deliver powerful, energy-efficient cooling with advanced inverter technology. With a 32,400 BTU cooling capacity and a DC inverter compressor, it provides precise temperature control, faster cooling, and significant energy savings compared to non-inverter systems.
O General Ducted Inverter AC 3.0 Ton is concealed ducted design ensures seamless integration into residential or light commercial spaces, delivering uniform airflow across rooms while maintaining a discreet appearance. Built in Thailand with a golden fin condenser for superior corrosion resistance and durability, this model ensures long-lasting reliability. The self-cleaning function helps maintain hygiene and performance, while quiet operation ensures comfort throughout the year.
- Indoor Model: ARGH36CMTA-U
- Outdoor Model: AOGH36CBTA-U
- Compressor: Inverter
- Made in Thailand
- BTU: 32,400
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Cooling Capacity (T1) | 32,400 BTU/h (9.50 kW) [Min 8,530 – Max 34,100 BTU/h] |
| Cooling Capacity (T3) | 29,100 BTU/h (8.53 kW) [Min 6,820 – Max 29,900 BTU/h] |
| Energy Efficiency Ratio | EER 12.00 BTU/W (3.52 W/W) at T1; ~8.95 BTU/W at T3 |
| Power Supply | 220–240V, 1-Phase, 50 Hz (max single-phase capacity) |
| Power Input (Cooling) | 2.70 kW (T1); 3.25 kW (T3) |
| Running Current | 11.9 A (T1); 14.3 A (T3) |
| Moisture Removal | ~3.5 liters/hour |
| Airflow (Indoor Fan) | ~1,620 m³/h (954 CFM) Low / ~2,300 m³/h (1,354 CFM) High |
| Sound Pressure (Indoor) | 41 dB(A) (High) / 29–30 dB(A) (Quiet) |
| Sound Pressure (Outdoor) | ≤70 dB(A) (max at full load) |
| Dimensions (Indoor Unit) | 240 × 1,400 × 700 mm (H×W×D) |
| Dimensions (Outdoor Unit) | 788 × 940 × 320 mm (H×W×D) |
| Weight (Indoor / Outdoor) | 41.5 kg / 49 kg (Net) |
| Refrigerant | R32, 1.10 kg charge |
| Piping Connections | Liquid: 9.52 mm (3/8") / Gas: 15.88 mm (5/8") – Flare |
| Static Pressure Range | 30–150 Pa (supports long duct runs) |
| Operating Range | Indoor 18–32 °C / Outdoor 18–55 °C (up to T3/Desert) |
| Controller Options | Wired wall controller (optional) / Central controller integration (group control) / Wi-Fi adapter support |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
