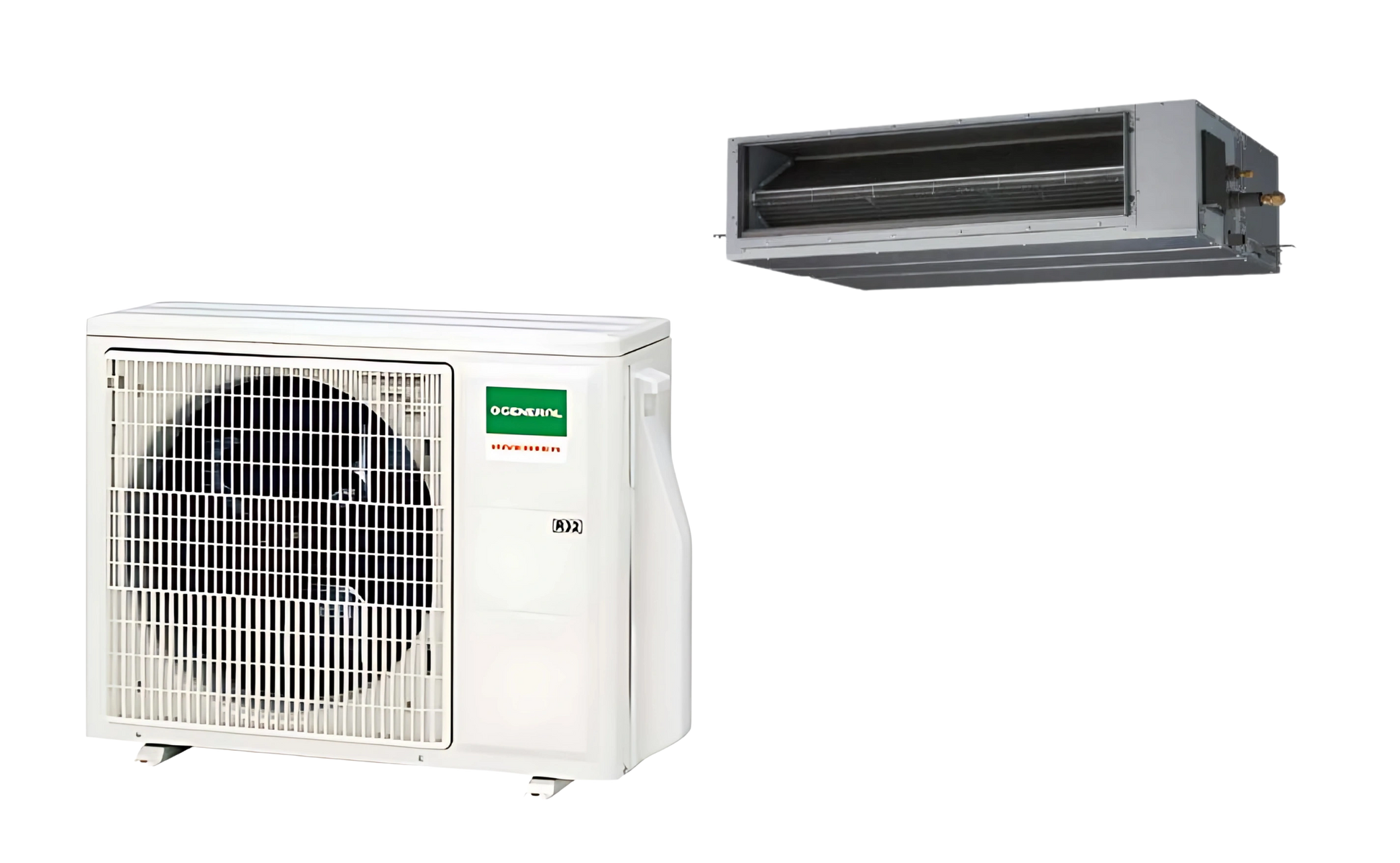

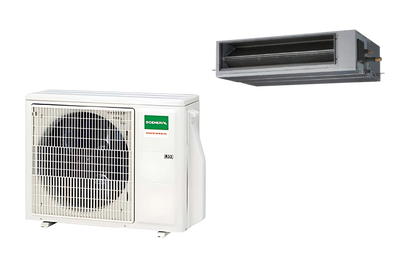

O General Ducted Inverter Unit AC 4.0 Ton - ARGH48CMTA-U
O General Ducted Inverter Unit AC 4.0 Ton - ARGH48CMTA-U
O General Ducted Inverter AC 4.0 Ton – ARGH48CMTA-U/AOGH48CBTA-U delivers high-capacity cooling with advanced inverter technology, ensuring maximum comfort and energy efficiency. With a 42,700 BTU cooling capacity, this ducted system is engineered to handle large residential and commercial spaces with ease.
O General Ducted Inverter AC 4.0 Ton is equipped with a DC inverter compressor, it provides precise temperature control, faster cooling, and reduced power consumption compared to traditional systems. The concealed ducted design allows seamless integration into interiors while distributing uniform airflow across rooms. Built in Thailand, this model features a golden fin condenser for enhanced durability, a self-cleaning function to maintain system hygiene, and quiet operation for uninterrupted comfort.
Ideal for offices, showrooms, villas, and light commercial setups, the ARGH48CMTA-U combines reliability, efficiency, and performance in one powerful solution.
- Indoor Model: ARGH48CMTA-U
- Outdoor Model: AOGH48CBTA-U
- Compressor: Inverter
- Made in Thailand
- BTU: 42,700
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Cooling Capacity (T1) | 42,700 BTU/h (12.51 kW) [Min 13,200 – Max 47,900 BTU/h] |
| Cooling Capacity (T3) | 38,000 BTU/h (11.14 kW) [Min ~17,000 – Max ~46,000 BTU/h] |
| Energy Efficiency Ratio | EER 11.60 BTU/W (≈3.40 W/W) at T1; 8.8 BTU/W at T3 |
| Power Supply | 380–415V 3Ø (3-Phase), 50 Hz (Neutral may be required: 3N) |
| Power Input (Cooling) | 3.68 kW (T1); 4.32 kW (T3) |
| Running Current (Total) | 5.8 A (T1); 6.9 A (T3) (per phase currents are lower) |
| Moisture Removal | ~4.0 liters/hour |
| Airflow (Indoor Fan) | 2,550 m³/h (1,500 CFM) High; 1,740 m³/h (1,024 CFM) Low |
| Sound Pressure (Indoor) | 44 dB(A) (High) / 34 dB(A) (Low) |
| Sound Pressure (Outdoor) | ~60–63 dB(A) (estimated at full load, at 1m distance) |
| Dimensions (Indoor Unit) | 360 × 1,400 × 850 mm (H×W×D) |
| Dimensions (Outdoor Unit) | 1,158 × 790 × 330 mm (H×W×D) |
| Weight (Indoor/Outdoor) | 41.5 kg / 67.0 kg (Net) |
| Refrigerant | R32, 1.85 kg charge (factory) |
| Piping Connections | Liquid: 9.52 mm (3/8"); Gas: 15.88 mm (5/8") – Flare (max pipe length ~50 m) |
| Static Pressure Range | 30–150 Pa (adjustable high static blower) |
| Operating Range | Indoor 18–32 °C; Outdoor 18–55 °C (full tropical spec) |
| Controller Options | Wired remote / Group control / BMS integration via interface / Wi-Fi (optional adapter) |
-
