O General Ducted Inverter Unit AC 5.0 Ton - ARGH60CMTA-U
O General Ducted Inverter Unit AC 5.0 Ton - ARGH60CMTA-U

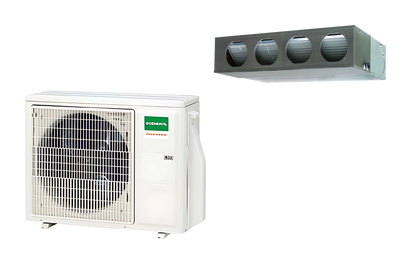

O General Ducted Inverter AC 5.0 Ton – ARGH60CMTA-U/AOGH60CBTA-U is designed for powerful, energy-efficient cooling in large residential and commercial environments. With a 60,000 BTU cooling capacity, it delivers rapid temperature control and consistent airflow, ensuring comfort even in extreme conditions.
O General Ducted Inverter AC 5.0 Ton is equipped with a DC inverter compressor, this model optimizes energy usage while maintaining precise temperature regulation. Its ducted concealed design allows discreet installation with wide airflow coverage, making it ideal for villas, showrooms, offices, and banquet halls.
Built in Thailand, the ARGH60CMTA-U comes with a golden fin condenser that enhances durability, a self-cleaning function for long-term hygiene, and quiet operation to maximize comfort. Combining advanced technology, robust build quality, and efficiency, it’s a reliable choice for demanding cooling applications.

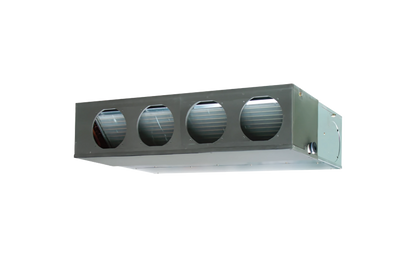

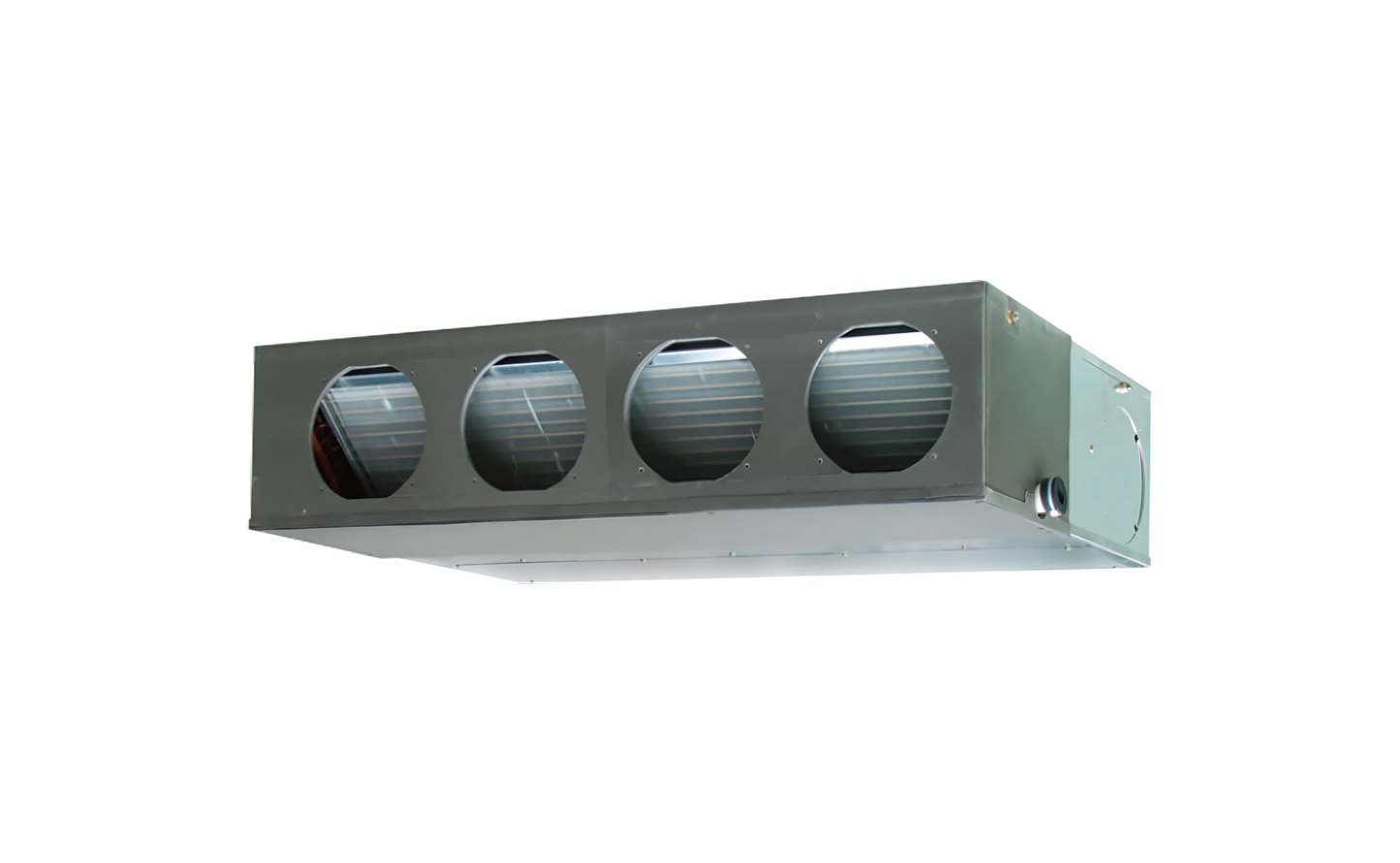

- Indoor Model: ARGH60CMTA-U
- Outdoor Model: AOGH60CBTA-U
- Compressor: Inverter
- Made in Thailand
- BTU: 60,000
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Cooling Capacity (T1) | 51,700 BTU/h (15.15 kW) — [Min 17,000 – Max 58,900 BTU/h] |
| Cooling Capacity (T3) | 46,400 BTU/h (13.60 kW) — [Min ~6.0 – Max ~17.3 kW] |
| T1 | 11.62 BTU/W (≈3.41 W/W) |
| T3 | ~8.8–9.0 BTU/W (approximate) |
| Power Supply | 380–415V 3Ø (3-Phase), 50 Hz (Neutral + Earth required) |
| T1 | 4.45 kW |
| T3 | 5.27 kW |
| T1 | 7.0 A |
| T3 | 8.2 A (approx. 2.7–3.0 A per phase) |
| Moisture Removal | ~4.4 liters/hour |
| High | 3,400 m³/h (2,000 CFM) |
| Quiet | 2,720 m³/h (1,601 CFM) |
| Indoor | 41 dB(A) (High) / 38 dB(A) (Quiet) |
| Outdoor | ~62–65 dB(A) (at full load; low-noise mode available) |
| Indoor Unit | 360 × 1,400 × 850 mm (H×W×D) |
| Outdoor Unit | 1,418 × 970 × 370 mm (H×W×D) |
| Indoor | 67.0 kg |
| Outdoor | 97.0 kg |
| Refrigerant | R32, 1.90 kg factory charge |
| Liquid Line | 9.52 mm (3/8") |
| Gas Line | 15.88 mm (5/8") — Flare type |
| Max Pipe Length | ~50 m |
| Static Pressure Range | 30–150 Pa (high static blower for extended ducting) |
| Indoor | 18–32 °C |
| Outdoor | 18–55 °C (tropical design, rated for up to 52 °C ambient) |
| Controller Options | Wired remote controller, Central control panel (group units), BMS integration (MODBUS/BACnet gateway), Wi-Fi smartphone app (optional adapter) |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
