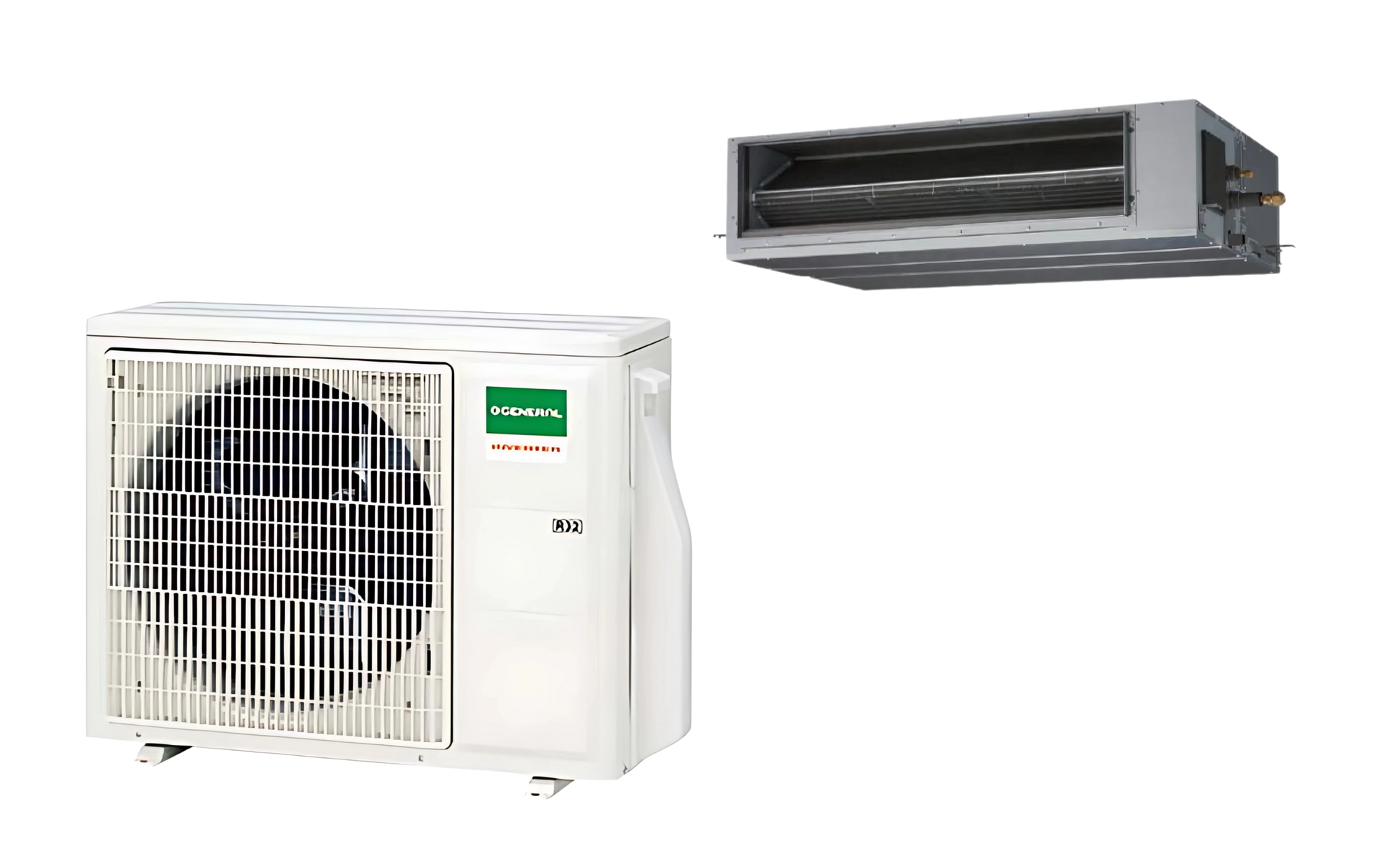

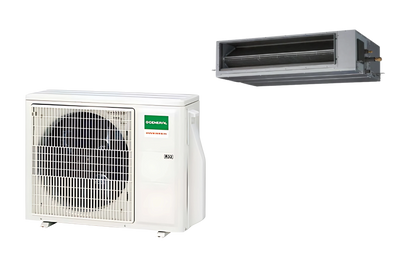

O General Ducted Inverter AC 1.5 Ton - ARGH18CMTA-U
O General Ducted Inverter AC 1.5 Ton - ARGH18CMTA-U
O General Ducted Inverter AC 1.5 Ton – ARGH18CMTA-U/AOGH18CBTA-U delivers powerful yet energy-efficient cooling for residential and light commercial applications. With 18,000 BTU of cooling capacity and a high-performance DC inverter compressor, this unit ensures precise temperature control and reduced energy consumption, making it an eco-friendly choice for year-round comfort.
O General Ducted Inverter AC 1.5 Ton is slim, concealed duct design allows for discreet ceiling installation, providing uniform airflow without affecting interior aesthetics. Built in Thailand with golden fin condenser coating for corrosion resistance, it is engineered for long-lasting durability. Additional features like the self-cleaning function help maintain peak performance while minimizing maintenance needs, making it perfect for apartments, offices, and villas in demanding climates.
- Indoor Model: ARGH18CMTA-U

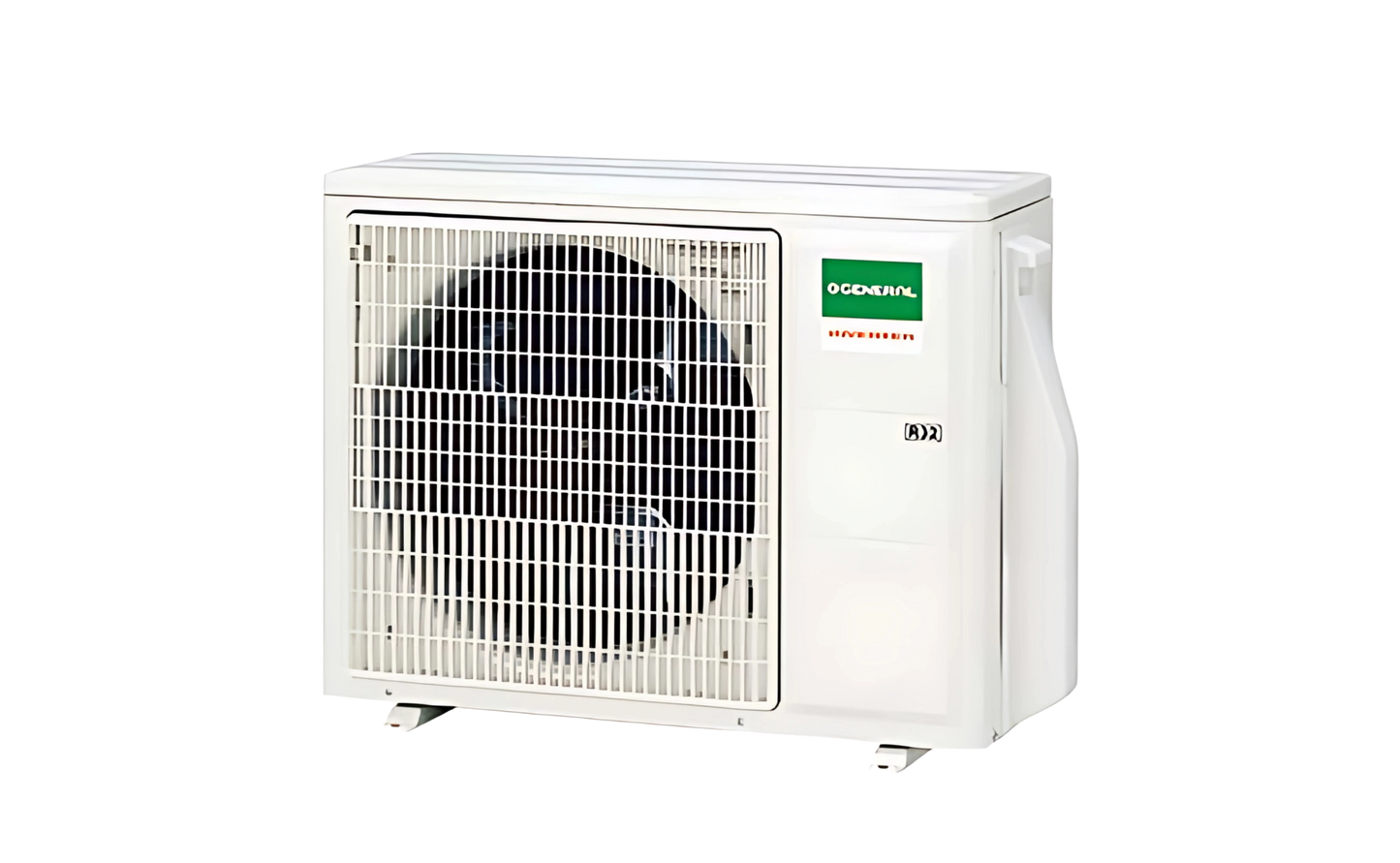

- Outdoor Model: AOGH18CBTA-U
- Compressor: Inverter
- Made in Thailand
- BTU: 18,000
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Cooling Capacity (T1) | 17,700 BTU/h (5.19 kW) [Min 6,210 – Max 18,700 BTU/h] |
| Cooling Capacity (T3) | 15,000 BTU/h (4.40 kW) [Min 6,480 – Max 15,800 BTU/h] |
| Energy Efficiency Ratio | EER 11.96 BTU/W (3.51 W/W) at T1; ~9.2 BTU/W at T3 |
| Power Supply | 220–240V, 1-Phase, 50 Hz (Indoor power fed from outdoor) |
| Power Input (Cooling) | 1.48 kW (T1); 1.63 kW (T3) |
| Running Current | 6.9 A (T1); 7.5 A (T3) |
| Moisture Removal | 2.0 liters/hour (approx.) |
| Airflow (Indoor Fan) | 1,177 CFM (High) / 712 CFM (Quiet); 2,000 m³/h max |
| Sound Pressure (Indoor) | 32 dB(A) (High) / 24 dB(A) (Quiet) |
| Sound Pressure (Outdoor) | ≤70 dB(A) (max) |
| Dimensions (Indoor Unit) | 240 × 1,000 × 700 mm (H×W×D) |
| Dimensions (Outdoor Unit) | 542 × 799 × 290 mm (H×W×D) |
| Weight (Indoor / Outdoor) | 30.5 kg / 27 kg (Net) |
| Refrigerant | R32, 0.68 kg charge |
| Piping Connections | Liquid: 6.35 mm (1/4") / Gas: 12.70 mm (1/2") – Flare type |
| Static Pressure Range | 30–150 Pa (adjustable via controller) |
| Operating Range | Indoor: 18–32 °C, ≤80% RH / Outdoor: 18–55 °C (cooling mode) |
| Controller Options | Wired remote controller (optional) / Wi-Fi app control (with adapter) |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
