Specifications

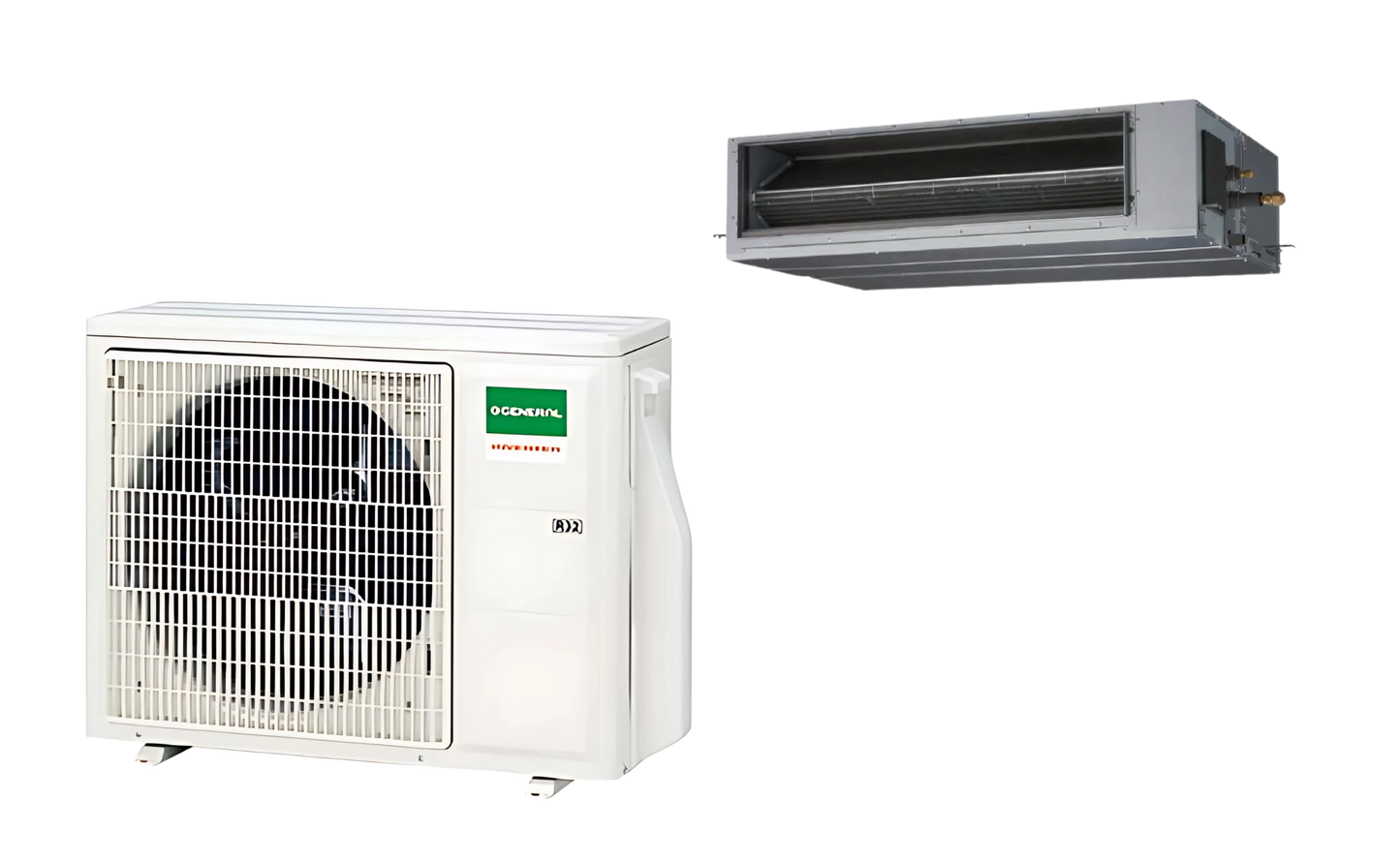

O General Ducted Unit
Parameter | Value |
---|---|
Indoor Model | ARGA25FTMA-U |
Outdoor Model | AOGA25FBTAHU |
Nominal Cooling Capacity | 2.05 TR |
Total (TKW) | 5.21 kW |
Sensible (SKW) | 4.41 kW |
Airflow | 313 L/s |
On Coil Temperature | 24°C DB / 17°C WB |
T1 Condition Power Input | 1.91 kW |
EER | 11.3 – 11.7 BTU/h/W |
T3 Condition Power Input | 2.41 kW |
EER | 8.64 BTU/h/W |
Power Supply | 220–240V / 1 Phase / 50 Hz |
Liquid Line | 3/8″ |
Gas Line (Suction) | 5/8″ |
Maximum Total Piping Length / Height Difference | 25 m / 15 m |
Indoor Unit Dimensions (HxWxD) | 270 x 1,135 x 700 mm |
Weight | 41 kg |
Outdoor Unit Dimensions (HxWxD) | 830 x 900 x 330 mm |
Weight | 64 kg |
