Specifications

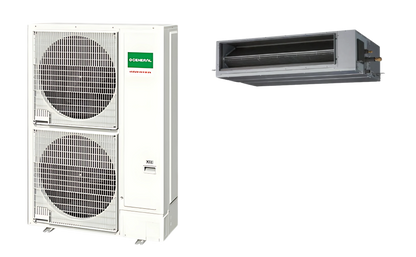

O General Ducted Unit
Parameter | Value |
---|---|
Indoor Model | ARGA36FTMB-U |
Outdoor Model | AOGA36FRTDSU |
Nominal Cooling Capacity | 3.0 TR |
Total (TKW) | 9.10 kW |
Sensible (SKW) | 8.25 kW |
Airflow | 730 L/s |
On Coil Temperature | 24°C DB / 17°C WB |
✅ T1 Condition Power Input | 3.25 kW |
EER | 12.2 BTU/h/W |
🌡️ T3 Condition Power Input | 3.80 kW |
EER | 9.7 BTU/h/W |
Power Supply | 220-240 V / 1 Phase / 50 Hz |
Liquid (Discharge) | 3/8″ |
Gas (Suction) | 5/8″ |
Max Piping Length (Total / Height) | 30 m / 25 m |
Indoor Unit Dimensions (HxWxD) | 300 x 1,150 x 840 mm |
Weight | 55 kg |
Outdoor Unit Dimensions (HxWxD) | 960 x 940 x 400 mm |
Weight | 85 kg |
