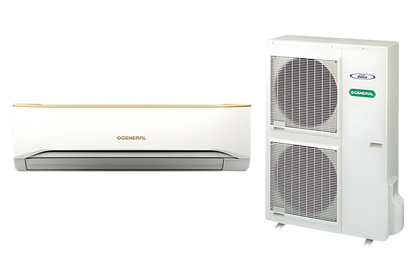

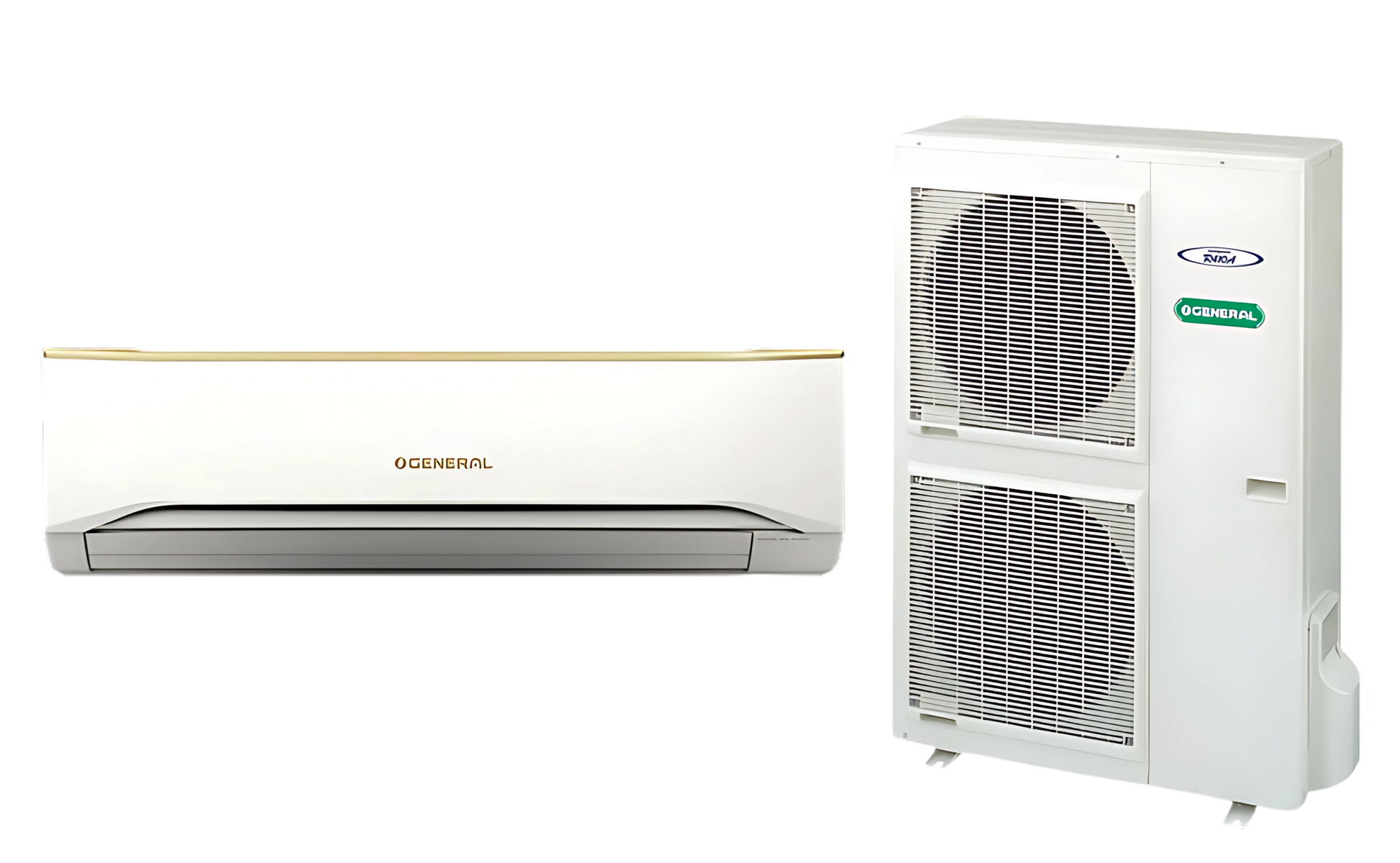

O General Premium Wall Split AC 3.0 Ton - ASGA36FUTA-UZ
O General Premium Wall Split AC 3.0 Ton - ASGA36FUTA-UZ
O General Premium Wall Split AC 3.0 Ton – ASGA36FUTA-UZ is designed for exceptional cooling performance in large residential, commercial, and industrial environments. With a 36,000 BTU capacity and a powerful scroll compressor, it ensures reliable, energy-efficient cooling even in extreme desert temperatures up to 52°C.
O General Premium Wall Split AC 3.0 Ton - ASGA36FUTA-UZ Model combines durability and modern design. The Blue Fin condenser coating provides superior protection against corrosion and bacterial buildup, extending the unit’s lifespan. Operating on eco-friendly R410A refrigerant, it offers silent operation, high efficiency, and maximum comfort. Perfect for offices, villas, showrooms, and large halls, the ASGA36FUTA-UZ is built to deliver long-lasting, powerful cooling in demanding climates.
- Indoor Model: ASGA36FUTA-U
- Outdoor Model: AOGA36FUTASU
- Compressor: Scroll
- Made in Thailand
- BTU: 36,000
Note: installation price may vary depends on the T&C's
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Model Name (Indoor) | ASGA36FUTA-U |
| Model Name (Outdoor) | AOGA36FUTASU |
| Capacity Class | 36,000 BTU/h |
| Power Source | 230V / 1 / 50 Hz |
| Energy Label | 2 |
| T1 Capacity | 10.55 kW |
| T1 Input Power | 3.22 kW |
| T1 Current | 15.4 A |
| T1 EER | 3.27 kW/kW |
| T3 Capacity | 9.38 kW |
| T3 Input Power | 4.04 kW |
| T3 Current | 18.2 A |
| T3 EER | 2.32 kW/kW |
| Moisture Removal | 4.2 pints/h |
| Airflow Rate (Super High) | 1,520 CFM |
| Indoor Unit Dimensions (HxWxD) | 340 x 1,150 x 280 mm |
| Indoor Unit Weight | 16 kg |
| Outdoor Unit Dimensions (HxWxD) | 1,290 x 900 x 330 mm |
| Outdoor Unit Weight | 115 kg |
| Refrigerant | R410A |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
