O General Premium Wall Split Inverter AC 3.0 Ton - ASGH36CXTA-UZ
O General Premium Wall Split Inverter AC 3.0 Ton - ASGH36CXTA-UZ

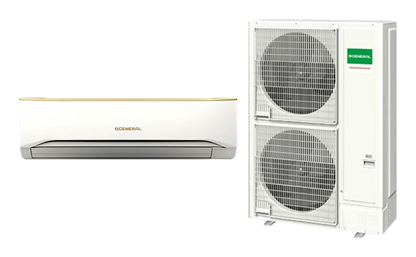

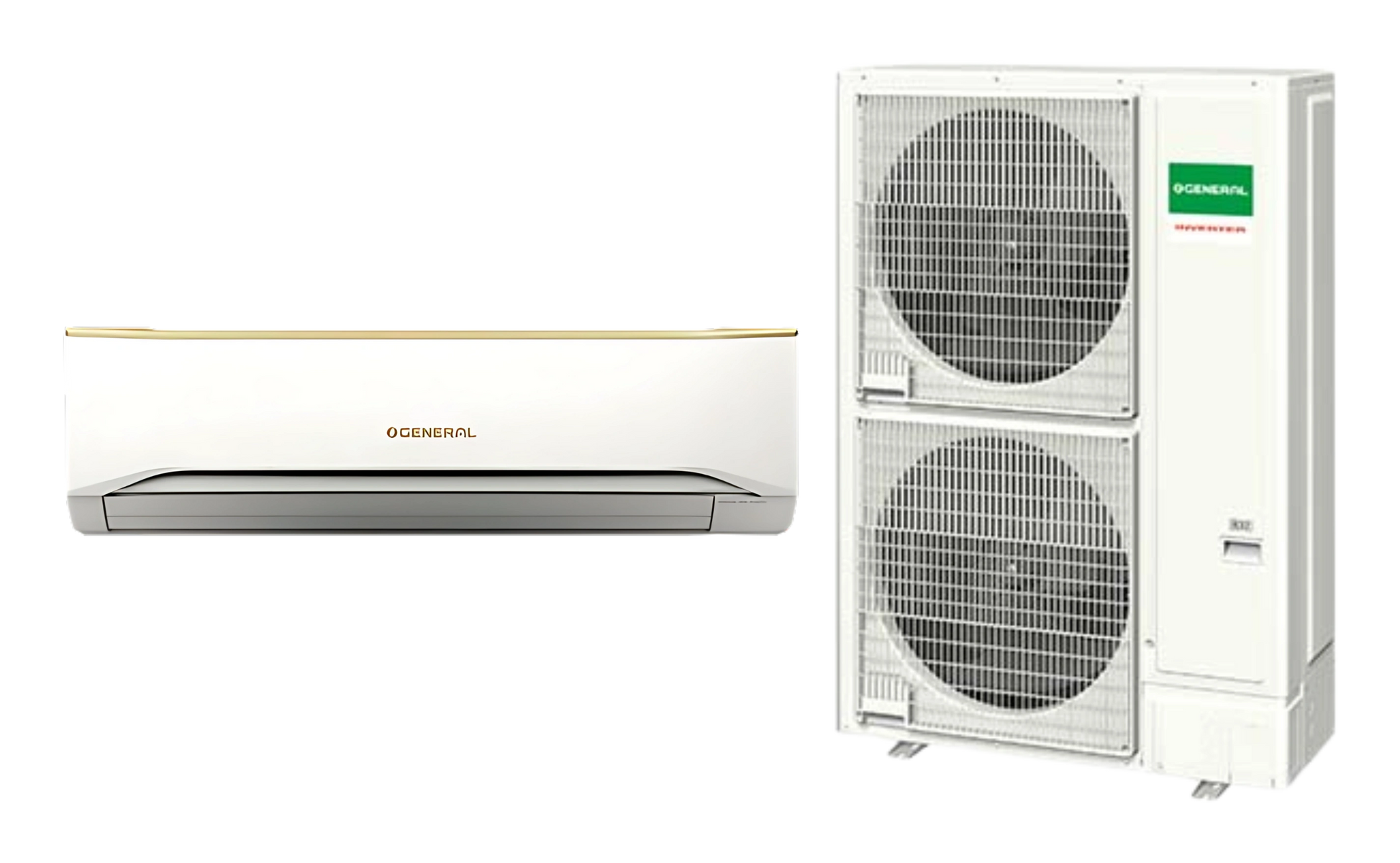

O General Premium Wall Split Inverter AC 3.0 Ton – ASGH36CXTA-UZ delivers exceptional cooling performance with a 36,000 BTU capacity, making it ideal for large villas, offices, showrooms, and light commercial spaces. Built to perform in harsh desert climates up to 52°C, this inverter AC ensures steady, energy-efficient cooling even under the most demanding conditions.
O General Premium Wall Split Inverter AC 3.0 Ton is equipped with a high-efficiency DC inverter compressor, it provides precise temperature control, reduced energy consumption, and ultra-quiet operation. The Golden Fin condenser enhances resistance to corrosion, extending durability and long-term performance. A built-in drain pump ensures efficient condensate removal, making it hassle-free to maintain.
- Indoor Model: ASGH36CXTA-U
- Outdoor Model: 123ASGH36CXTA-U
- Compressor: Inverter 3 Phase
- Made in Thailand
- BTU: 36,000
Note: installation price may vary depends on the T&C's
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Compressor Refrigerant | R32 |
| AC Cooling Capacity | 3.0 Ton (36,000 BTU/h) |
| Voltage | 220-240 V |
| Power Source | 400V / 3 Phase / 50Hz |
| Energy Label | 3 |
| Cooling Capacity (T1 condition) | 10.55 kW (Range: 3.70–12.13 kW) |
| EER (T1 condition) | 3.68 kW/kW |
| Cooling Capacity (T3 condition) | 8.96 kW (Range: 3.16–10.54 kW) |
| EER (T3 condition) | 2.84 kW/kW |
| Moisture Removal | 4.2 L/h |
| Airflow Rate | 1,520 m³/h |

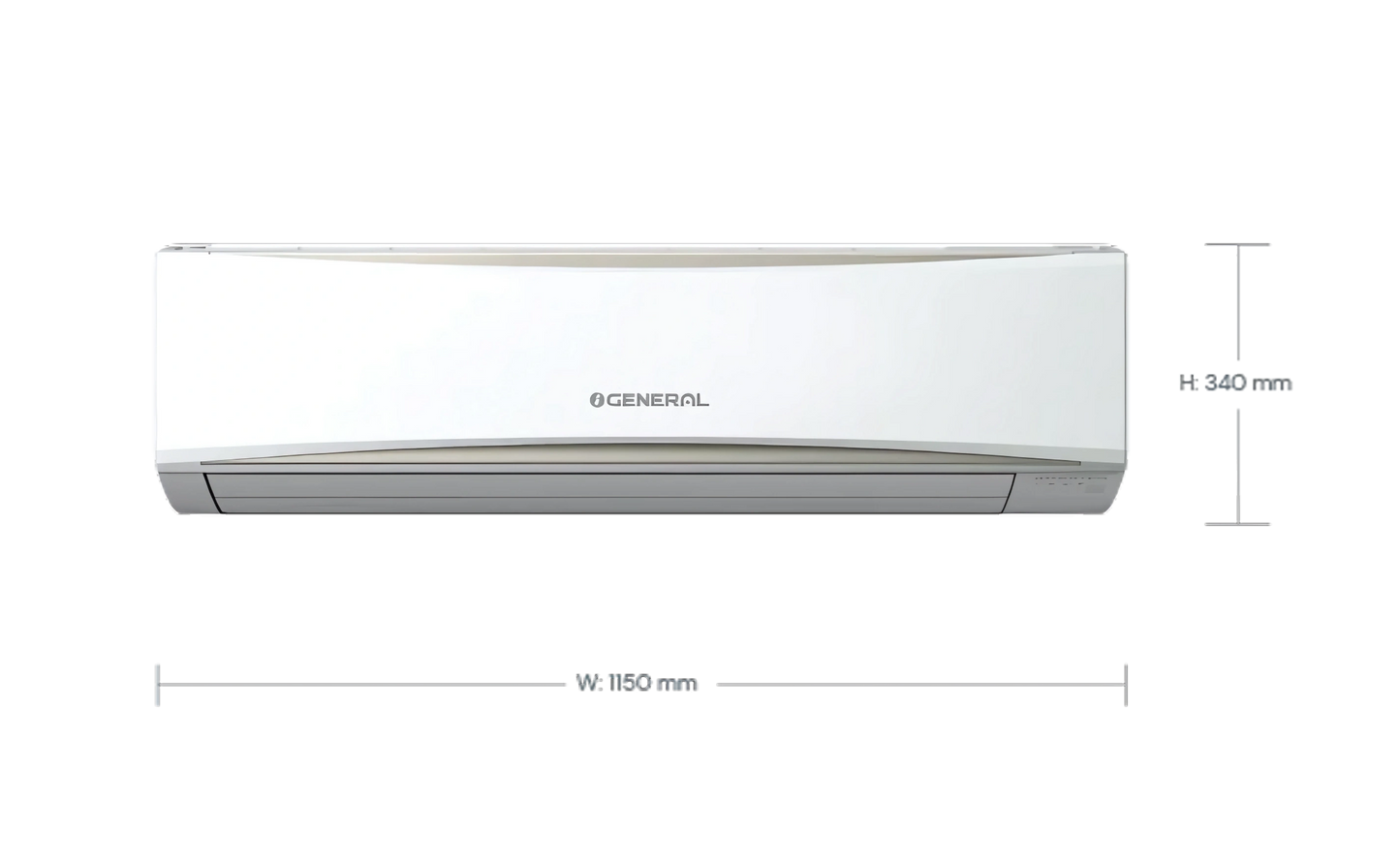

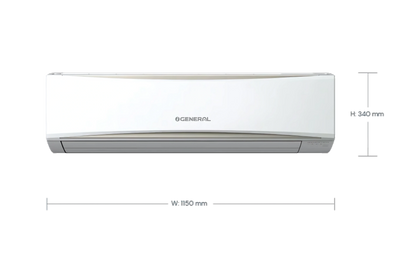

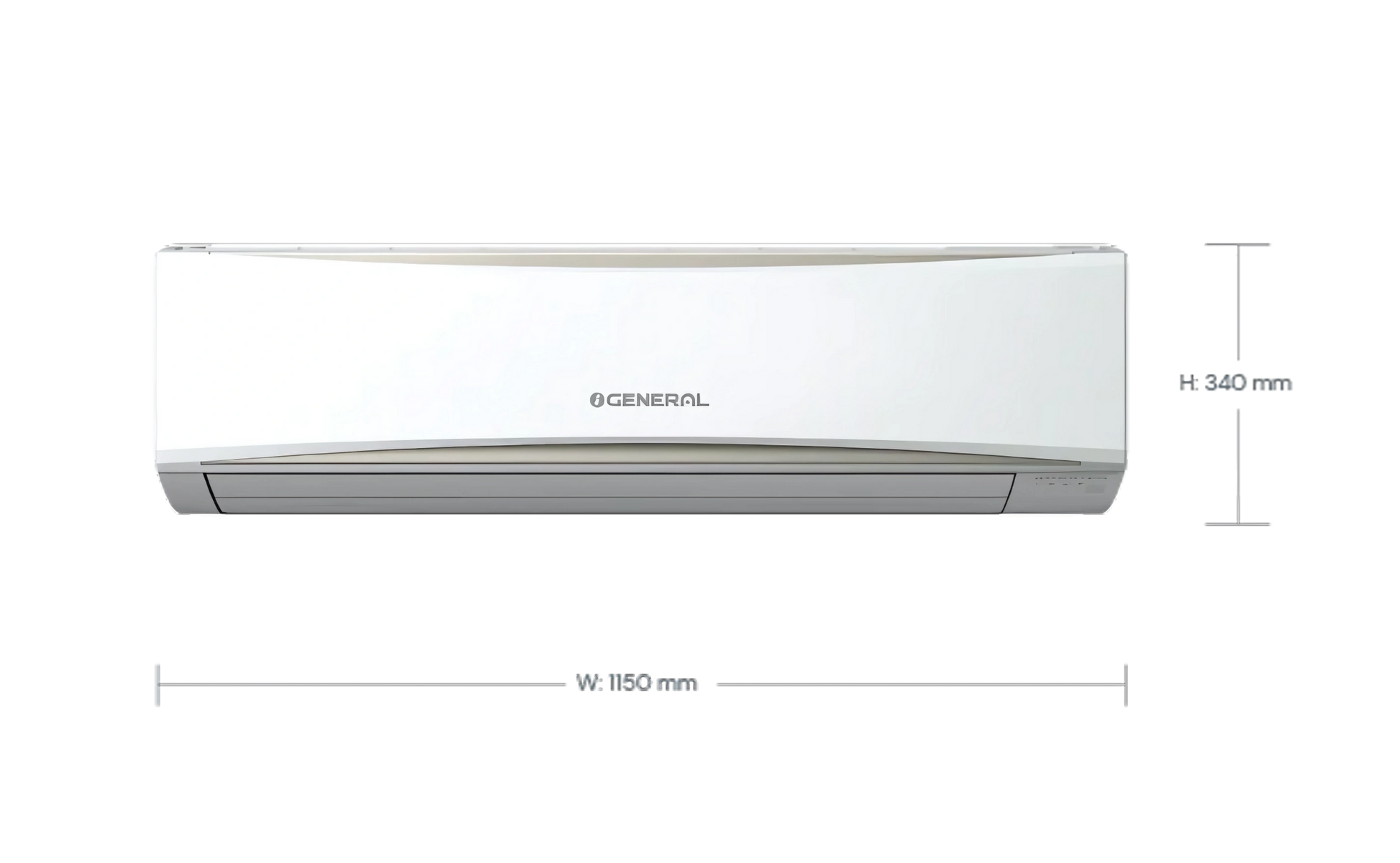

| Indoor Unit Dimensions (HxWxD) | 340 x 1,150 x 289 mm |
| Indoor Unit Weight | 16 kg |
| Outdoor Unit Dimensions (HxWxD) | 1,418 x 970 x 370 mm |
| Outdoor Unit Weight | 90 kg |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
