Specifications

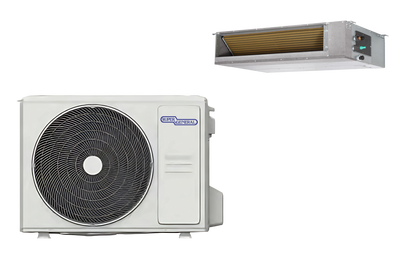

Super General Ducted Unit
Parameter | Value |
---|---|
Rated Cooling Capacity (T1/T3) | 24,000 BTU/h (T1), 21,000 BTU/h (T3) |
Compressor Type / Climate Type | Inverter / T3 |
Refrigerant Type | R410A |
Voltage (V, Ph, Hz) | 220–240V, 1 Phase, 50 Hz |
Indoor Unit Dimensions (W × H × D) | 1100 × 774 × 249 mm (Product) / 1305 × 805 × 315 mm (Packaging) |
Outdoor Unit Dimensions (W × H × D) | 890 × 342 × 673 mm (Product) / 995 × 398 × 740 mm (Packaging) |
Indoor Unit Weight (Net / Gross) | 32.6 / 39.9 kg |
Outdoor Unit Weight (Net / Gross) | 38.1 / 41.3 kg |
Container Loading (40’HQ) | 198 units |
