Specifications

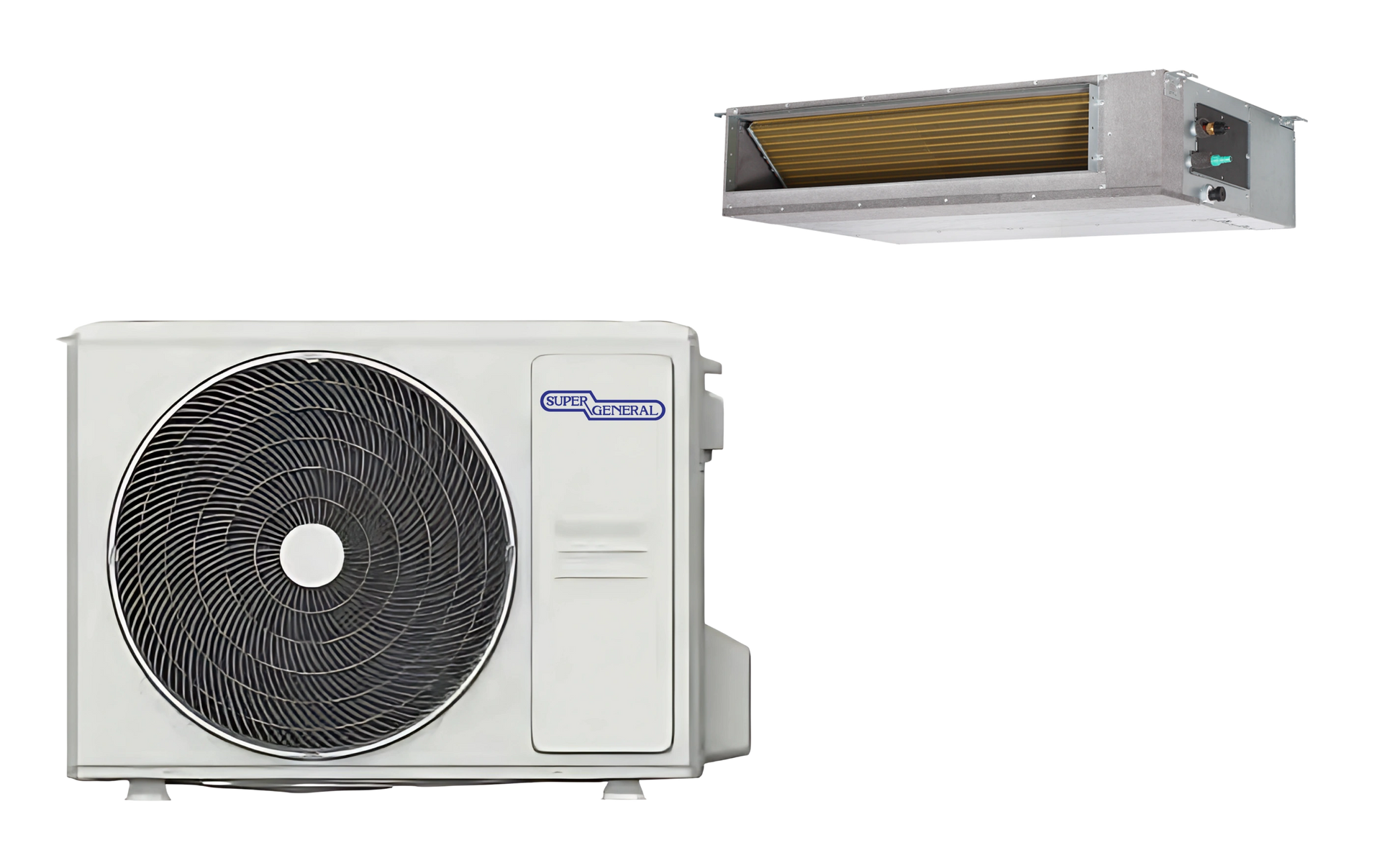

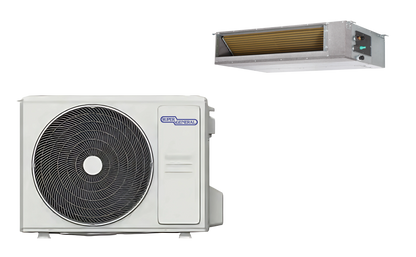

Super General Ducted Unit
Parameter | Value |
---|---|
Rated Cooling Capacity (T1/T3) | 30,000 BTU/h (T1), 27,600 BTU/h (T3) |
Compressor Type / Climate Type | Inverter / T3 |
Refrigerant Type | R410A |
Voltage (V, Ph, Hz) | 220–240V, 1 Phase, 50 Hz |
Indoor Unit Dimensions (W × H × D) | 1200 × 874 × 300 mm (Product) / 1405 × 915 × 365 mm (Packaging) |
Outdoor Unit Dimensions (W × H × D) | 946 × 410 × 810 mm (Product) / 1090 × 500 × 885 mm (Packaging) |
Indoor Unit Weight (Net / Gross) | 44.5 / 52.7 kg |
Outdoor Unit Weight (Net / Gross) | 54.7 / 59.4 kg |
Container Loading (40’HQ) | 138 units |
