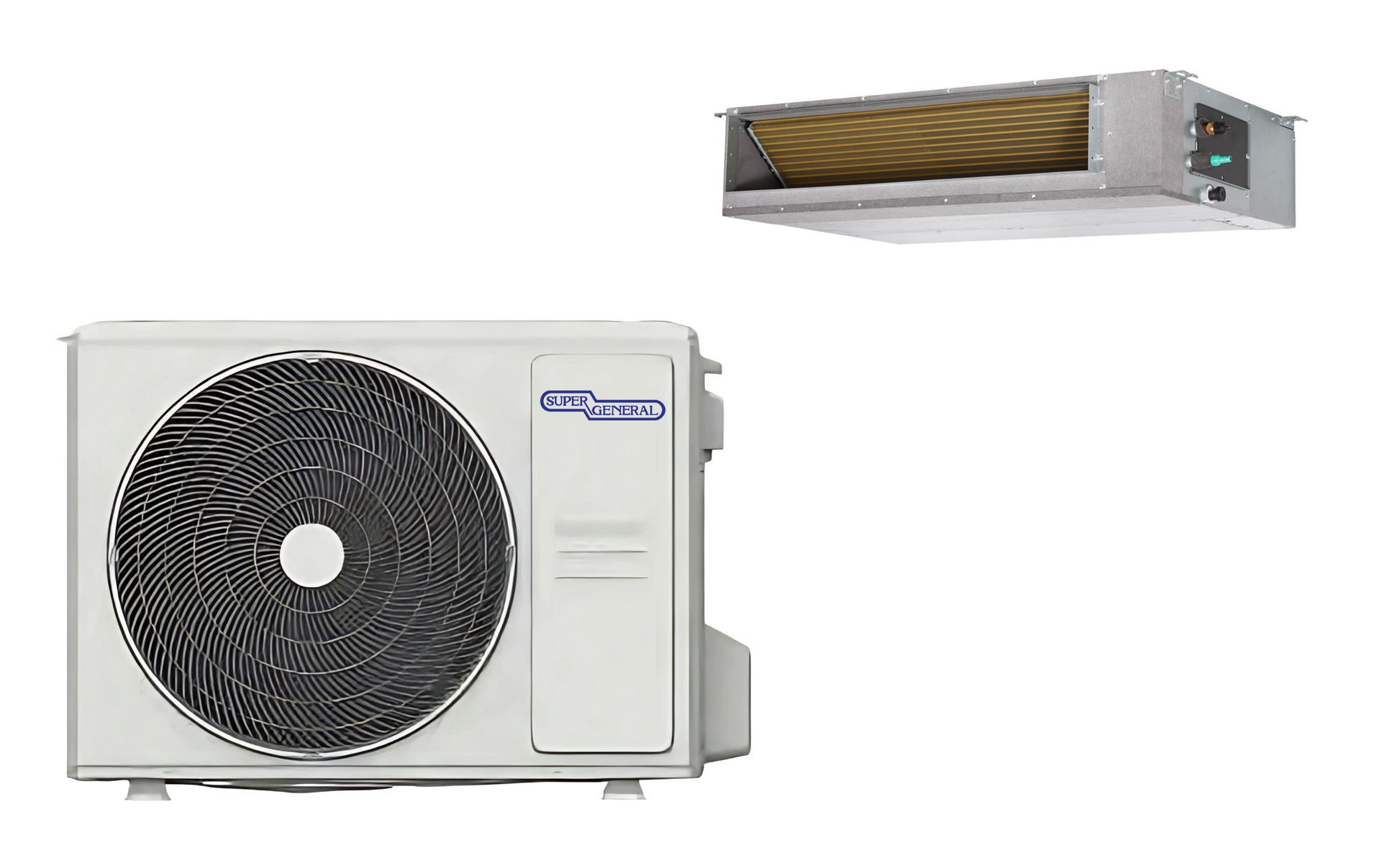

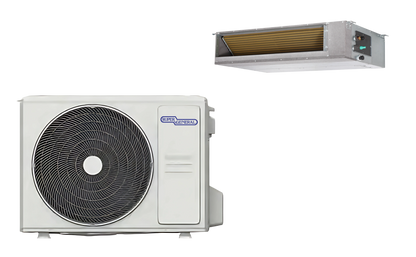

Super General Ducted Inverter Unit AC 5.0 Ton - SGDI-6030AE
Super General Ducted Inverter Unit AC 5.0 Ton - SGDI-6030AE
Super General Ducted Inverter AC 5.0 Ton – SGDI-6030AE is a high-capacity unit engineered to provide exceptional 53,000 BTU cooling using advanced DC inverter compressor technology, ensuring maximum energy efficiency and lower operational costs. Super General Ducted Inverter AC 5.0 Ton – SGDI-6030AE is designed for large commercial spaces, expansive homes, and industrial applications, this powerful ducted inverter unit delivers reliable and forceful cooling in the most extreme desert climates, with a remarkable operating capability up to 52°C.
The system is enhanced with Refrigerant Radiation Technology, which drastically cools internal electrical components to extend the unit's service life and maintain optimal performance. Its Electric Control Box Heat Dissipation Technology utilizes multiple air grids for accelerated cooling, providing critical protection against overheating during intense operation.
- Model: SGDI-6030AE
- Compressor: Inverter
- BTU: 53,000
- Made in China
Couldn't load pickup availability
- Shipping may take 2 to 3 working days
Specifications
| Parameter | Value |
|---|---|
| Rated Cooling Capacity (T1/T3) | 53,000 BTU/h (T1) / 48,000 BTU/h (ESMA Rated) |
| Compressor Type / Climate Type | Inverter / T3 |
| Refrigerant Type | R410a |
| Voltage (V, Ph, Hz) | 380–415V, 3Ph, 50Hz |
| Indoor Unit Dimensions (W × H × D) | 1,200 × 625 × 380 mm (Product) / 1,485 × 675 × 460 mm (Packed) |
| Outdoor Unit Dimensions (W × H × D) | 962 × 1,153 × 330 mm (Product) / 1,095 × 1,154 × 380 mm (Packed) |
| Indoor Unit Weight (Net / Gross) | 55.7 kg / 63.9 kg |
| Outdoor Unit Weight (Net / Gross) | 107.9 kg / 122.4 kg |
| Container Loading (40’HQ) | 48 units |
-
Catalouge
Download PDFComplete overview of all details, specifications, and model variations at a glance.
