Specifications

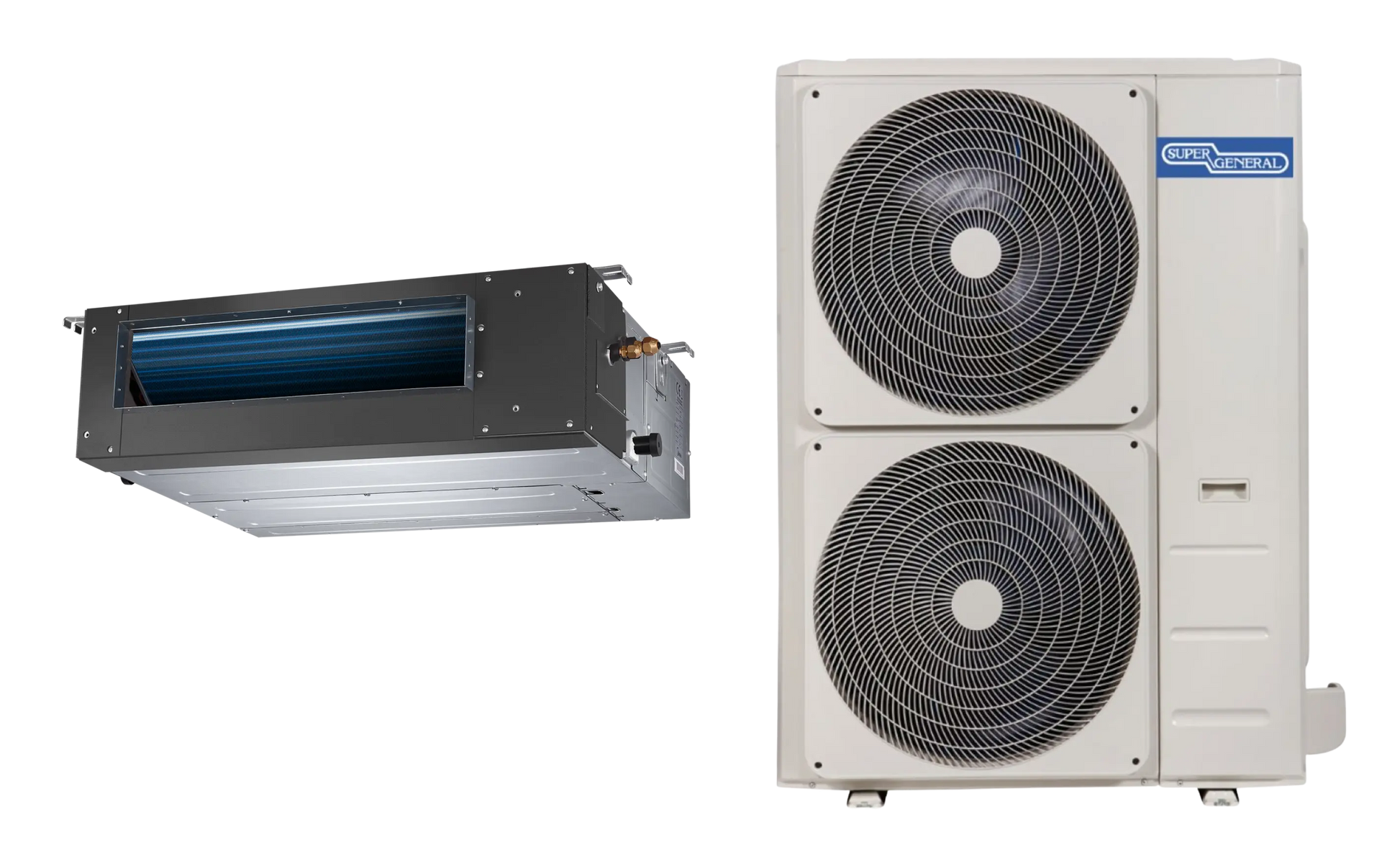

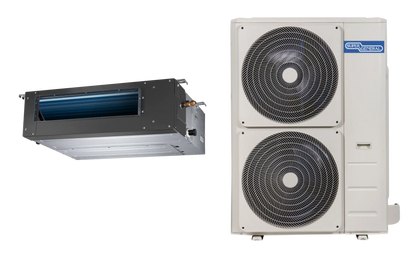

Super General Ducted Unit
Parameter | Value |
---|---|
Rated T1 Capacity | 24,000 Btu/h |
Compressor Type | Rotary |
Climate Type / Air Flow (m³/h) | T3 / 1400 / 1150 / 980 |
Refrigerant Type | R410A |
Voltage (V, Hz, Ph) | 220–240V, 50Hz, 1Ph |
Indoor Product Dimensions (W × D × H) | 1100 × 774 × 249 mm |
Indoor Packing Dimensions | 1305 × 805 × 305 mm |
Indoor Net / Gross Weight | 31.2 kg / 37.6 kg |
Outdoor Product Dimensions (W × D × H) | 946 × 410 × 810 mm |
Outdoor Packing Dimensions | 1090 × 500 × 865 mm |
Outdoor Net / Gross Weight | 58.7 kg / 64.4 kg |
