Specifications

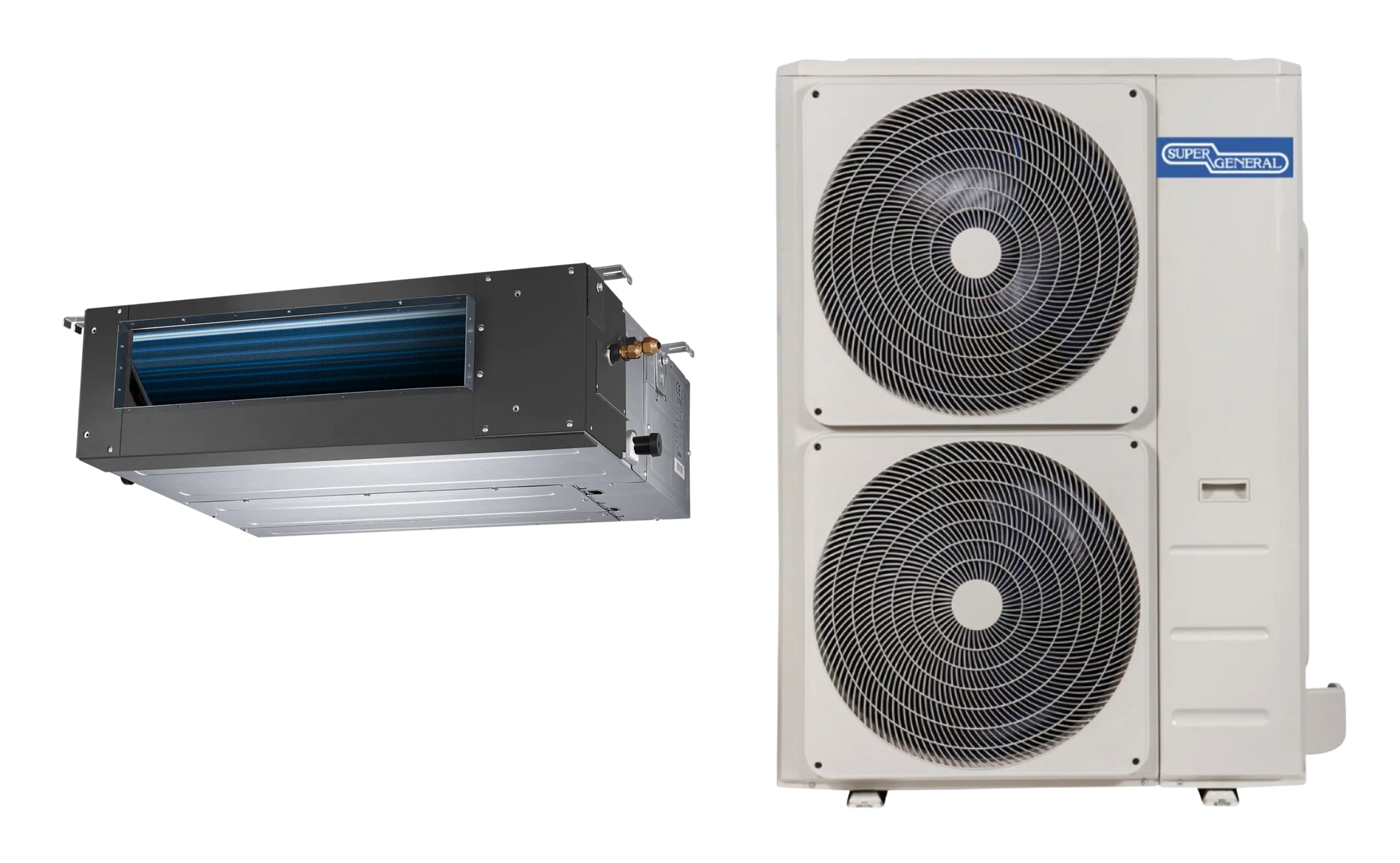

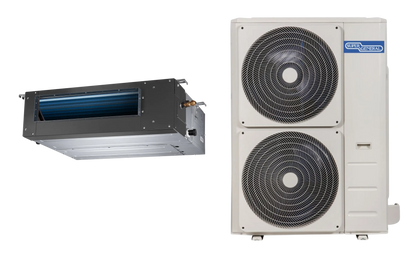

Super General Ducted Unit
| Parameter | Value |
|---|---|
| Rated T1 Capacity | 33,000 Btu/h |
| Compressor Type | Twin-Rotary |
| Climate Type / Air Flow (m³/h) | T3 / 2190 / 1818 / 1400 |
| Refrigerant Type | R410A |
| Voltage (V, Hz, Ph) | 220–240V, 50Hz, 1Ph |
| Indoor Product Dimensions (W × D × H) | 1200 × 874 × 300 mm |
| Indoor Packing Dimensions | 1405 × 915 × 355 mm |
| Indoor Net / Gross Weight | 44.8 kg / 53.3 kg |
| Outdoor Product Dimensions (W × D × H) | 946 × 410 × 810 mm |
| Outdoor Packing Dimensions | 1090 × 500 × 875 mm |
| Outdoor Net / Gross Weight | 69.6 kg / 74.4 kg |
