Specifications

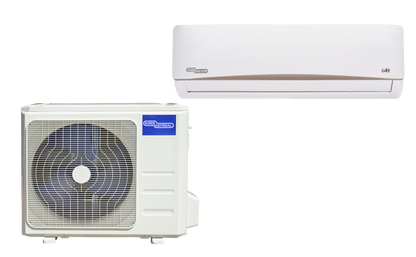

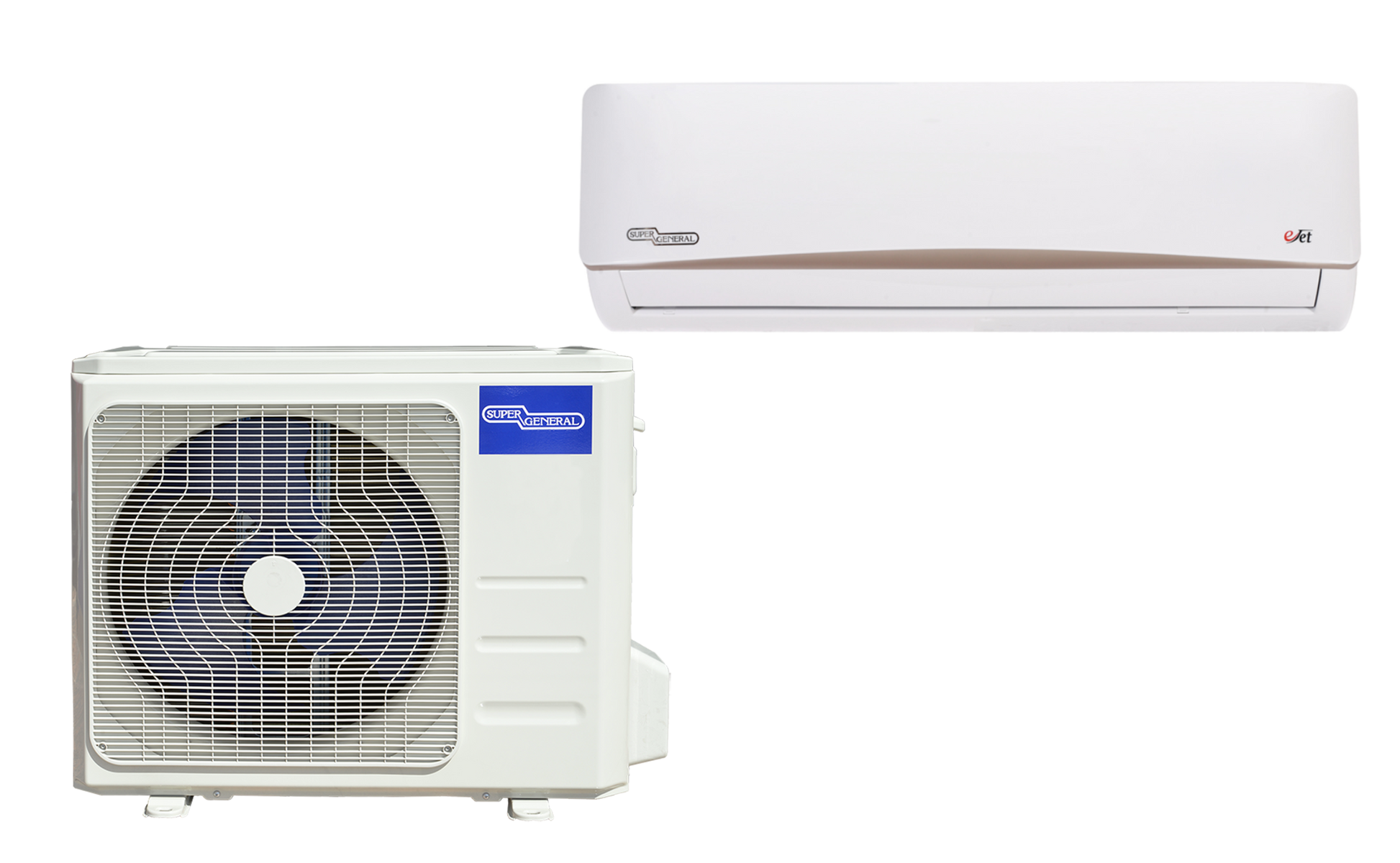

Super General Wall Split AC - SGS
Parameter | Value |
---|---|
Rated T1 Capacity (Btu/h) | 28,000 |
ESMA Capacity (Btu/h) | 25,000 |
Compressor Type / Climate Type | ROTARY / T3 |
Refrigerant Type | R410a |
Voltage (V, Ph, Hz) | 220–240V, 50Hz, 1Ph |
Indoor Dimensions (Product / Pack mm) | 1259 × 282 × 362 / 1340 × 380 × 450 |
Outdoor Dimensions (Product / Pack mm) | 946 × 410 × 810 / 1090 × 500 × 875 |
Indoor Weight (Net / Gross kg) | 19.8 / 25.3 |
Outdoor Weight (Net / Gross kg) | 66 / 69.9 |
Quantity per 20’ / 40’ / 40'HQ | 36 / 76 / 88 |
